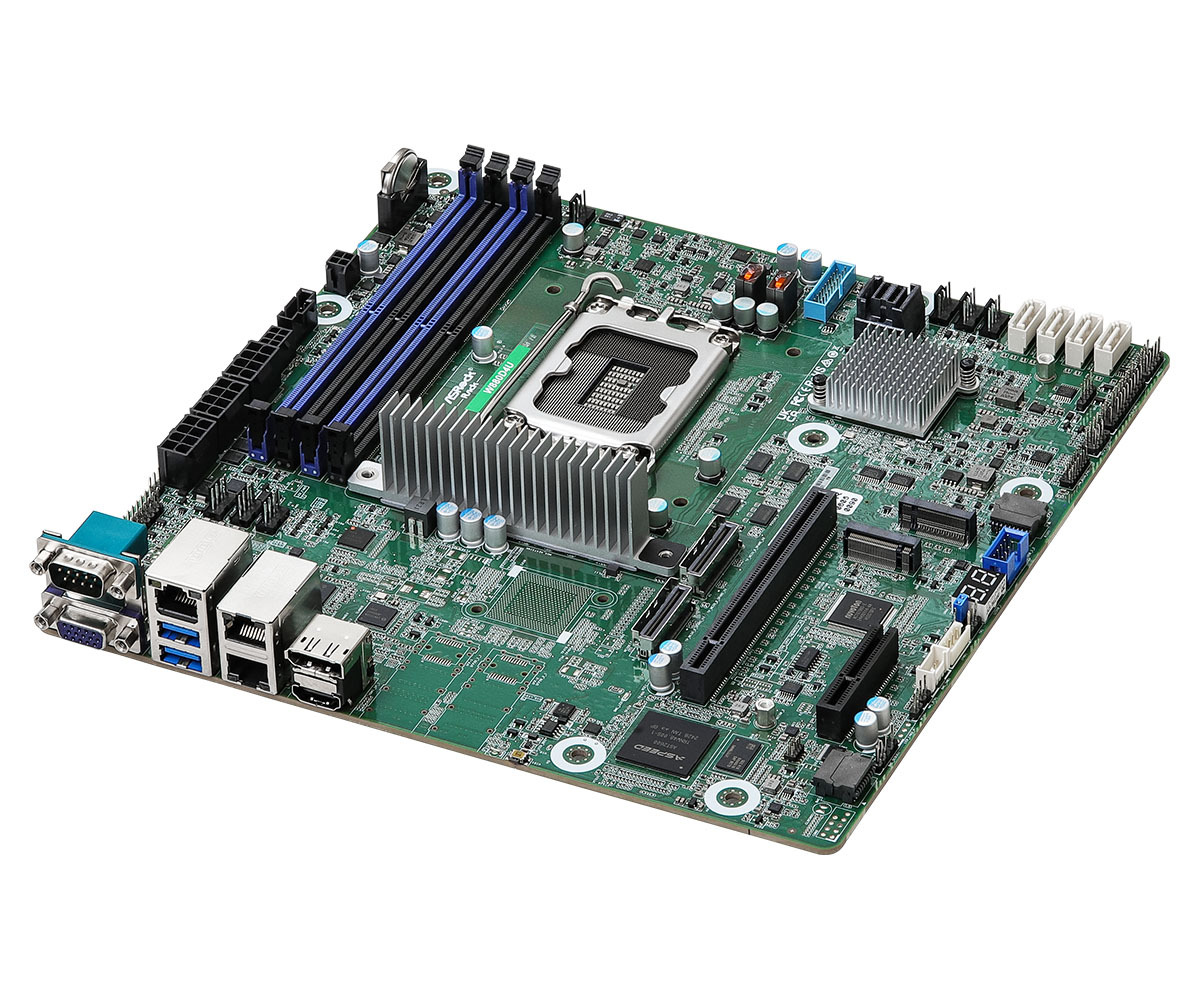

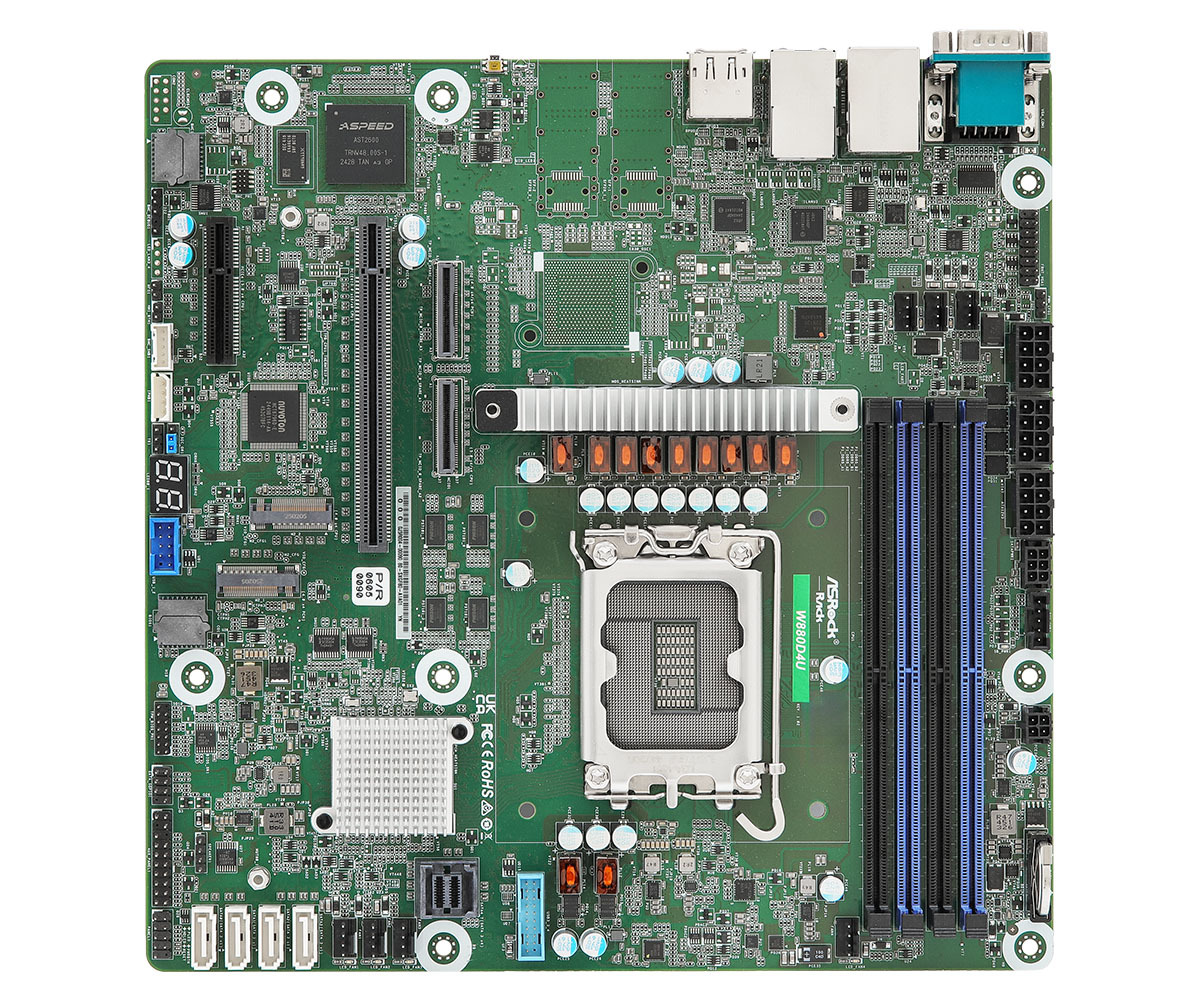

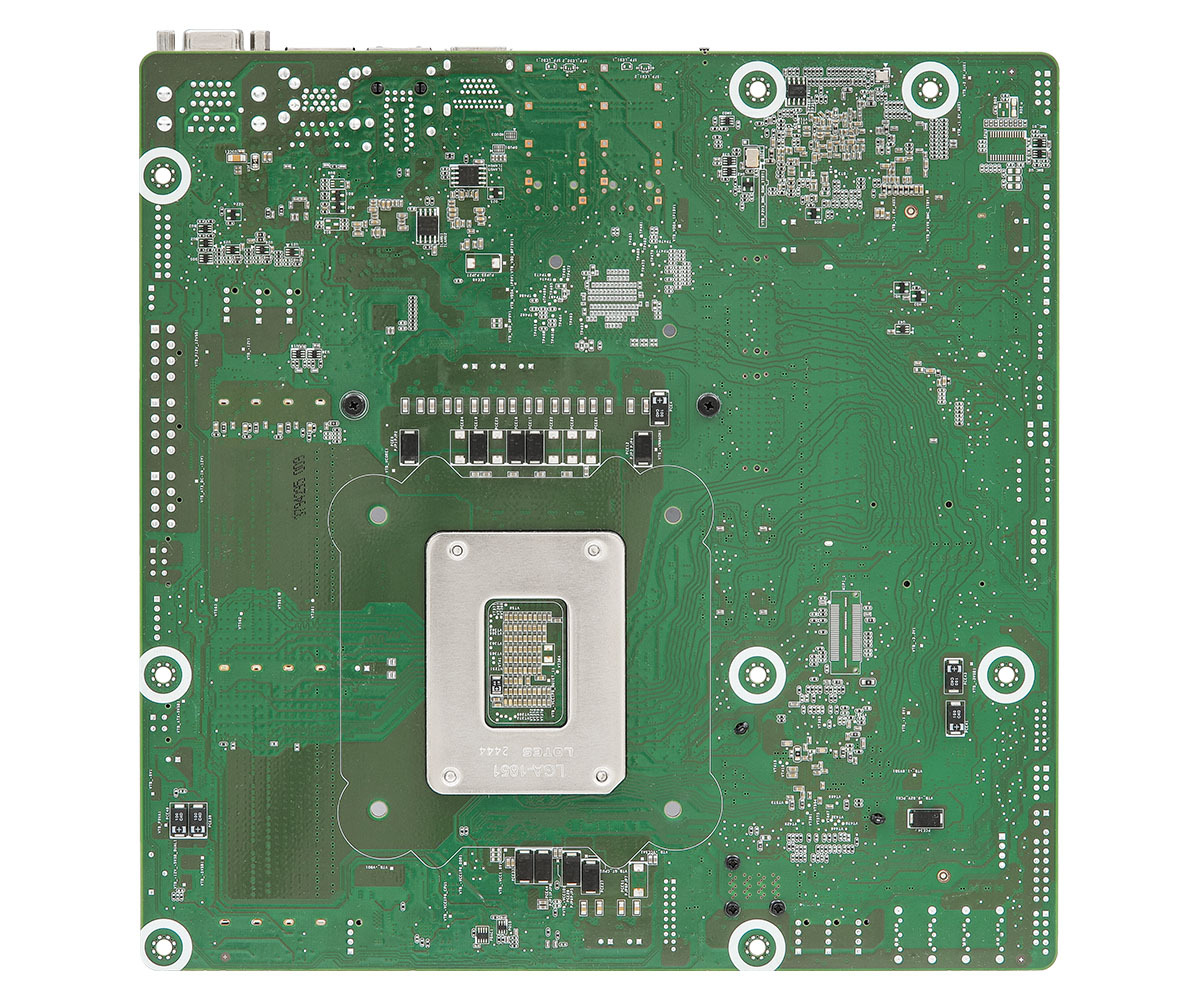

W880D4U

型号W880D4U

Support ATX PSU or 12V DC-in

Micro-ATX (9.6" x 9.6")

Supports Intel® Core™ Ultra Desktop Processors (Series 2)

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM, CUDIMM Memory

1 PCIe5.0 x16*, 1 PCIe5.0 x4

立即查詢

规格

 物理信息
型式 Micro-ATX
尺寸 9.6" x 9.6"
 处理器系统
CPU Supports Intel® Core™ Ultra Desktop Processors (Series 2)
插槽 Single Socket LGA 1851
电源设计 125W
芯片组 Intel® W880
 系统内存
容量 4 DIMM slots (2DPC)
类型 DDR5 288-pin ECC/non-ECC UDIMM, CUDIMM
每个DIMM支持的 DIMM 尺寸 64GB
Max. DIMM Frequency CUDIMM:
6400 MT/s (1SPC)
5600 MT/s (2SPC 0R2R)
4800 MT/s (2SPC 1R1R)
4400 MT/s (2SPC 2R2R)

ECC/non-ECC UDIMM:
5600 MT/s (2SPC 0R2R)
4800 MT/s (2SPC 1R1R)
4400 MT/s (2SPC 2R2R)
电压 1.1V
 扩展插槽 (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 x16 [CPU]*
*MCIO1 shared lanes x8 with SLOT6. To enable MCIO1, BIOS settings are required.
PCIe x 4 SLOT4: PCIe5.0 x4 [CPU]
 TPM
TPM Support 1 (13-pin, SPI)
 存储
SATA 控制器 Intel® W880 (8 SATA 6Gb/s; RAID 0/1/5/10):
4 SATA 7-pin, 1 Mini-SAS HD
Others MCIO1 (PCIe5.0 x8 or 2 PCIe5.0 x4)* [CPU]
MCIO2 (2 PCIe4.0 x4) [PCH]
M.2 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH]
 以太网
Additional GbE Controller 2 RJ45 (1GbE) by Intel® i210
 管理功能
BMC 控制器 ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI 独立 GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 显示
控制器 ASPEED AST2600:
1 DB15 (VGA)
Intel® Integrated Processor Graphics:
1 HDMI, 1 DisplayPort

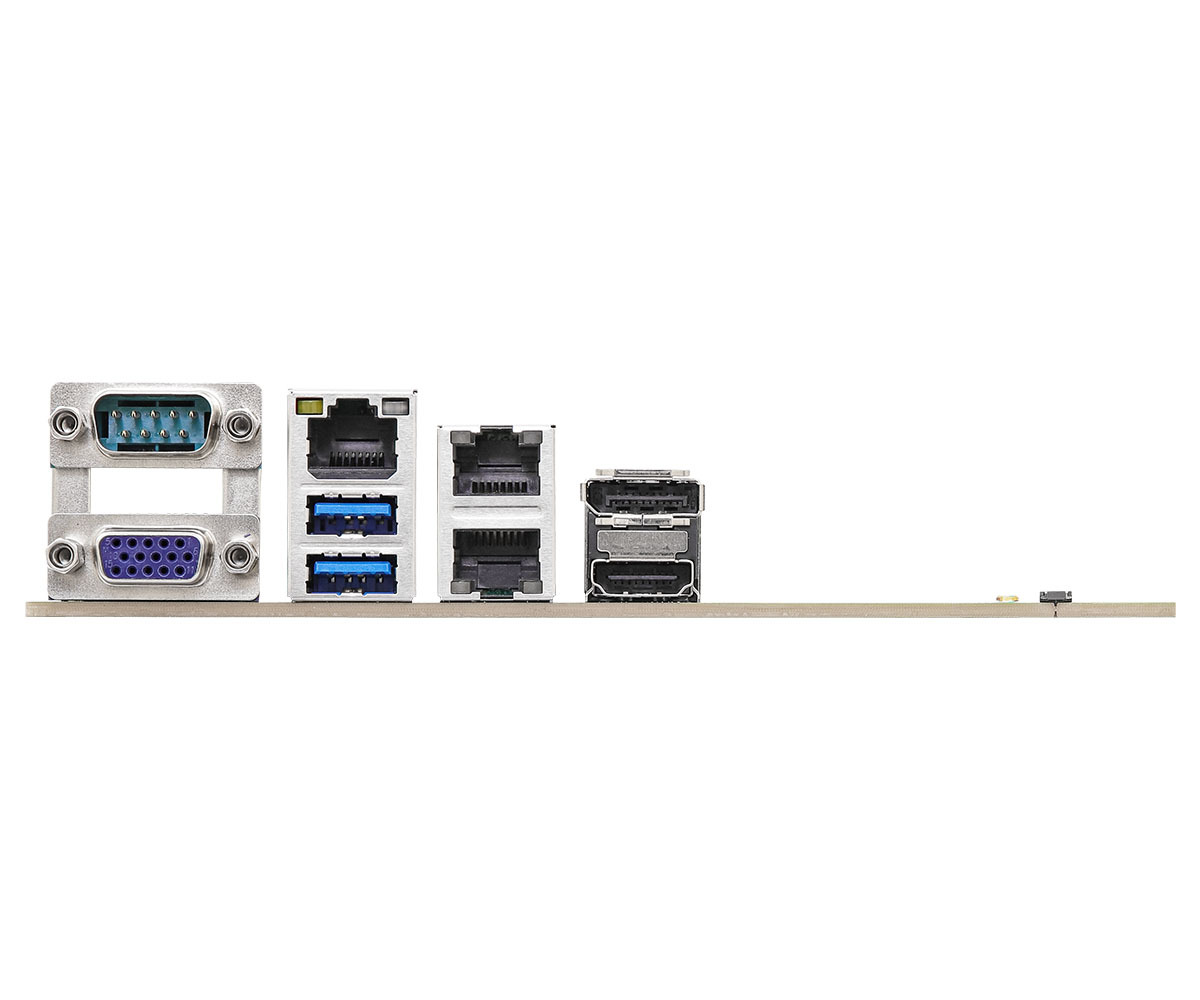

 后侧面板 I/O 接口
显示接口 1 DB15 (VGA), 1 HDMI, 1 DisplayPort
USB 3.0 接口 2 Type-A (USB3.2 Gen1)
网络接口 2 RJ45 (1GbE), 1 dedicated IPMI
串口 1 DB9 (COM)
UID Button/UID LED 1 UID button, 1 UID LED
 内置接口
电源接口 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
辅助面板接头 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
TPM 接口 1 (13-pin, SPI)
热量感应接口 1
IPMB 接口 1
VGA 接口 1 (15-pin)
风扇接口 7 (4-pin)
其他电源连接头 1 (6-pin) for HDD power when using 12V DC-in power source
USB 3.2 (Gen1) 连接头 1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 连接头 1 header (9-pin, 2 USB2.0)
NMI Header 1
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
扬声器 1
BMC_SMB Header 1
SGPIO Header 1
Clear CMOS 1 (2-pin)
 板载 LED
Standby PWR LED 1 (5VSB)
Port 80 LED 1
Fan Fail LED 7
BMC heartbeat LED 1
 系统 BIOS
BIOS 类型 AMI 256Mb SPI Flash ROM
BIOS 功能 Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash
 硬件监控
温度 CPU, PCH, MB temp, Card side temp, TR1, VR, M.2 Temperature Sensing
风扇 Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
电压 VCORE, GT, VCCSA, VNNAON, VCCIO, 1.8V_CPU, VDD2, 0.82V_PCH, 1.8VSB, 3V, 5V, 12V, BAT, 3VSB, 5VSB
 支持操作系统
操作系统 Microsoft® Windows®
- Windows® 10 (64 bit)
- Windows® 11 (64 bit)
* ASPEED VGA Driver Installation for Windows® 11 24H2/ 25H2 Procedure:
1. Begin by installing the Intel® Onboard VGA Driver (HDMI). If prompted to reboot after installation, dismiss the prompt and do not restart yet.
2. Install the ASPEED VGA driver.
3. Restart the system to complete the installation.

Linux
- RedHat Enterprise Linux Server 9.6 (64bit) / 10.0 (64bit)
- SUSE SLES 15.6 (64 bit)
- UBuntu 24.04.2 (64 bit) / 24.10 (64 bit) / 25.04 ( 64 bit)

* Supports UEFI BOOT only.
* Windows® U.2 NVME don't support Raid Mode.
* Linux don't support Raid Mode.
 使用环境
温度 Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Humidity Non-operating humidity: 20% ~ 90% (non-condensing)



CPU 支持列表

插槽 加载 编号 核心 频率 缓存 电源 起始 BIOS Note
1851 Core Ultra 5 Ultra 5-225(B0) Arrow Lake-S 3.3GHz 20MB 64W 1.02
1851 Core Ultra 9 Ultra 9-285K(B0) Arrow Lake-S 3.7GHz 36MB 125W 1.02
1851 Core Ultra 9 Ultra 9-285(B0) Arrow Lake-S 2.5GHz 36MB 65W 1.02
1851 Core Ultra 7 Ultra 7-265T(B0) Arrow Lake-S 1.5GHz 30MB 35W 1.02
1851 Core Ultra 7 Ultra 7-265KF(B0) Arrow Lake-S 3.9GHz 30MB 125W 1.02
1851 Core Ultra 7 Ultra 7-265K(B0) Arrow Lake-S 3.9GHz 30MB 125W 1.02
1851 Core Ultra 7 Ultra 7-265F(B0) Arrow Lake-S 2.4GHz 30MB 65W 1.02
1851 Core Ultra 7 Ultra 7-265(B0) Arrow Lake-S 2.4GHz 30MB 65W 1.02
1851 Core Ultra 5 Ultra 5-245KF(B0) Arrow Lake-S 4.2GHz 24MB 125W 1.02
1851 Core Ultra 5 Ultra 5-245K(B0) Arrow Lake-S 4.2GHz 24MB 125W 1.02
1851 Core Ultra 9 Ultra 9-285T(B0) Arrow Lake-S 1.4GHz 36MB 35W 1.02
1851 Core Ultra 5 Ultra 5-225(B0) Arrow Lake-S 3.3GHz 20MB 65W 1.02
1851 Core Ultra 5 Ultra 5-250K PLUS Arrow Lake-S Refresh 4.2GHz 30MB 125W 2.03
1851 Core Ultra 5 Ultra 5-245(B0) Arrow Lake-S 3.5GHz 24MB 65W 1.02
1851 Core Ultra 5 Ultra 5-225F(B0) Arrow Lake-S 3.3GHz 20MB 64W 1.02
1851 Core Ultra 5 Ultra 5-235(B0) Arrow Lake-S 3.4GHz 24MB 65W 1.02
1851 Core Ultra 5 Ultra 5-225T(B0) Arrow Lake-S 2.5GHz 20MB 35W 1.02
1851 Core Ultra 5 Ultra5-235T(B0) Arrow Lake-S 2.2GHz 24MB 35W 1.02
1851 Core Ultra 5 Ultra 5-245T(B0) Arrow Lake-S 2.2GHz 24MB 35W 1.02
1851 Core Ultra 5 Ultra 5-230F(A0) Arrow Lake-S 3.4GHz 24MB 64W 1.02
1851 Core Ultra 7 Ultra 7-270K PLUS Arrow Lake-S Refresh 3.7GHz 36MB 125W 2.03
1851 Core Ultra 5 Ultra 5-250KF PLUS Arrow Lake-S Refresh 4.2GHz 30MB 125W 2.03
1851 Core Ultra 5 Ultra 5-225F(B0) Arrow Lake-S 3.3GHz 20MB 65W 1.02



内存支持列表

类型 速度 内存条 容量 供应商 模块 型号 单元
DDR5 6400 ECC CUDIMM 64GB Innodisk M530-CGH9MC1S-J02 H5CG58MHBD Hynix
DDR5 6400 ECC CUDIMM 32GB Hynix HMCG88AHBBA372N H5CG48AHBD X018 Hynix
DDR5 6400 CUDIMM 32GB Hynix HMCG88AHBCA313N H5CG48AHBD X018 Hynix
DDR5 6400 CUDIMM 16GB Crucial CT16G64C52CU5.M8D1 4JD45D8DKT Micron
DDR5 6400 ECC CUDIMM 16GB Hynix HMCG78AHBBA372N H5CG48AHBD X018 Hynix
DDR5 6400 CUDIMM 16GB Hynix HMCG78AHBCA313N H5CG48AHBD X018 Hynix
DDR5 6000 non-ECC 24GB Crucial CP24G60C48U5.M8BR   Micron
DDR5 5600 non-ECC 64GB Crucial CT64G56C46U5.M16B1 5HB75D8FPZ Micron
DDR5 5600 non-ECC 48GB Hynix HMCGY8MGBUB213N H5CGD8MGB0 X021 Hynix
DDR5 5600 ECC 48GB Hynix HMCGY8MGBEB213N H5CG08MGBD X021 Hynix
DDR5 5600 non-ECC 32GB Innodisk M5U0-BGS2KCZQ-J02 K4RAH086VP BCWM Sec
DDR5 5600 non-ECC 32GB Innodisk M5U0-BGH2KCZQ-J02 H5CG48AGBO X018 Hynix
DDR5 5600 non-ECC 32GB Innodisk M5U0-BGG2KCZQ-J02 K4RAH086VE BCWM Sec
DDR5 5600 non-ECC 32GB V-Color TD532G56D846 H5CG48AGBO X018 Hynix



TPM QVL

Type Interface Pin IC Model
TPM SPI SPI 13 pin SLB9672VU20 TPM-SPI/INFINEON*
TPM SPI SPI 13 pin SLB9672VU2.0 TPM-SPI/9672/V15.24
TPM SPI SPI 13 pin SLB9670VQ2.0 TPM-SPI/INFINEON*
