2U12L2S-ROME/2T
型號2U12L2S-ROME/2T
AMD EPYC 7002 series processor
2 FHFL PCIe x16, 1 FHHL PCIe x16, 1 FHHL PCIe x8
8 DIMMs
OCP 2.0
Dual 10 GbE RJ45
Remote management (IPMI)
2 internal 2.5" drive bays
1 M.2
立即查詢
規格
| 系統 | |
| 機殼高度 | - 2U Rackmount |
| 外觀尺寸 (深x 寬 x 高) | - 625 x 482.6 x 87mm |
| 主機板尺寸 | - ROMED8QM-2T |
| 前面板 | |
| 按鈕 | - Left ear: Power button w/LED, UID button, NMI button (left ear) - Reset (right ear) |
| LED | - LAN1 and LAN2 LED, system fault LED |
| I/O 埠 | - 1 Type-A USB3.2 Gen1 (right ear) |
| 外部硬碟拖盤 / Storage | |
| 前置熱插拔硬碟托盤 | - 12x LFF 3.5" w/ HDD LED |
| 內側 | - 2x SFF 2.5", 1x M.2 |
| 電源供應器 | |
| 規格 | - 1+1 CRPS |
| 輸出功率 | - 800W |
| 效率 | - 80-PLUS Platinum |
| AC 輸入 | - Low Line: 100-127V, 50/60Hz High Line 200-240V, 50/60Hz |
| 系統風扇 | |
| 中間 | - 3x 8038; 11200 rpm |
| 處理器系統 | |
| 中央處理器 | - Supports AMD EPYC 7002 and 7001 series processors |
| 針腳 | - 1 Socket SP3 (LGA 4094) |
| 電源設計 | - 225W |
| 晶片組 | - System on chip |
| 記憶體 | |
| 容量 | - 8 DDR4 288-pin DIMM slots (1DPC) |
| 規格 | - Supports DDR4 RDIMM and LRDIMM |
| DIMM Size Per DIMM | - RDIMM: 64GB, 32GB, 16GB, 8GB - LRDIMM: 256GB, 128GB, 64GB |
| DIMM Frequency | - RDIMM: 3200/2933/2666/2400MHz - LRDIMM: 3200/2933/2666/2400MHz |
| 電壓 | - 1.2V |
| 擴充插槽 | |
| PCIe 4.0 x 16 | - 1 FHFL (PCIe4.0 x16) via 4UXG_SL2P* - 1 FHFL (PCIe4.0 x16) via RBBA* - 1 FHHL (PCIe4.0 x16) via RBBA - 1 FHHL (PCIe4.0 x8) via RBBA * Please contact ASRock Rack sales if dual slot GPU cards support needed |
| 夾層槽 | - 1 OCP 2.0 mezzanine connector A and B (PCIe x16) |
| 管理 | |
| BMC Controller | - ASPEED AST2500 |
| 顯示 | |
| 控制器 | - ASPEED AST2500 |

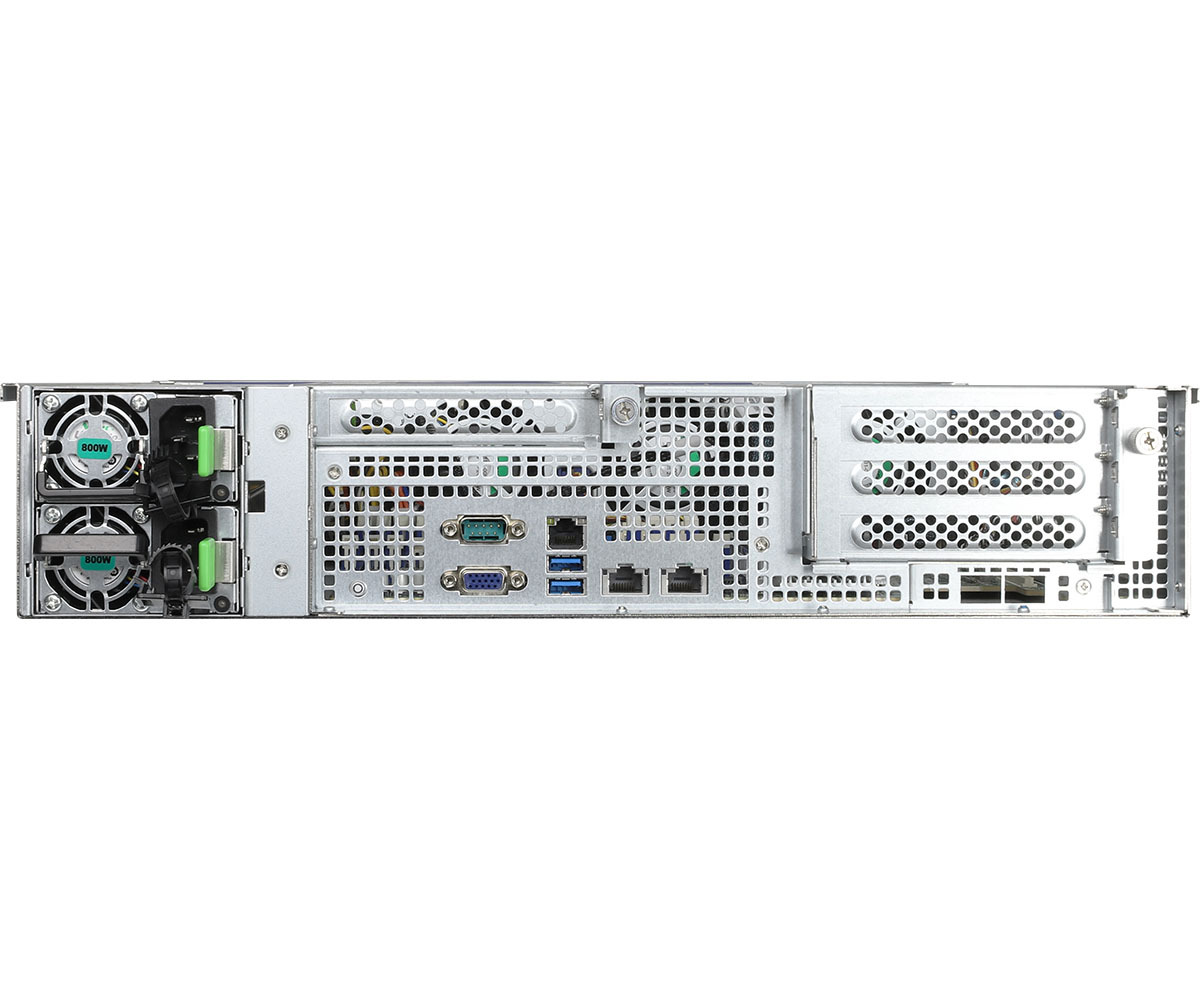

| 背板輸出 / 入介面 | |
| 顯示器接頭 | - 1 DB15 |
| RJ-45 網路埠 | - 2 RJ45 (10GbE) |
| Dedicate LAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| 序列連接埠 | - 1 DB9 |
| UID 按鈕 / UID LED | - 1 |
| 內建接頭 | |
| 可信任平臺模組接針 | - 1 (17-pin) support TPM2-S |
| 系統BIOS | |
| BIOS規格 | - 32MB AMI UEFI Legal BIOS |
| 環境 | |
| 溫度 | - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| 型號 | 2U12L2S-ROME/2T |
