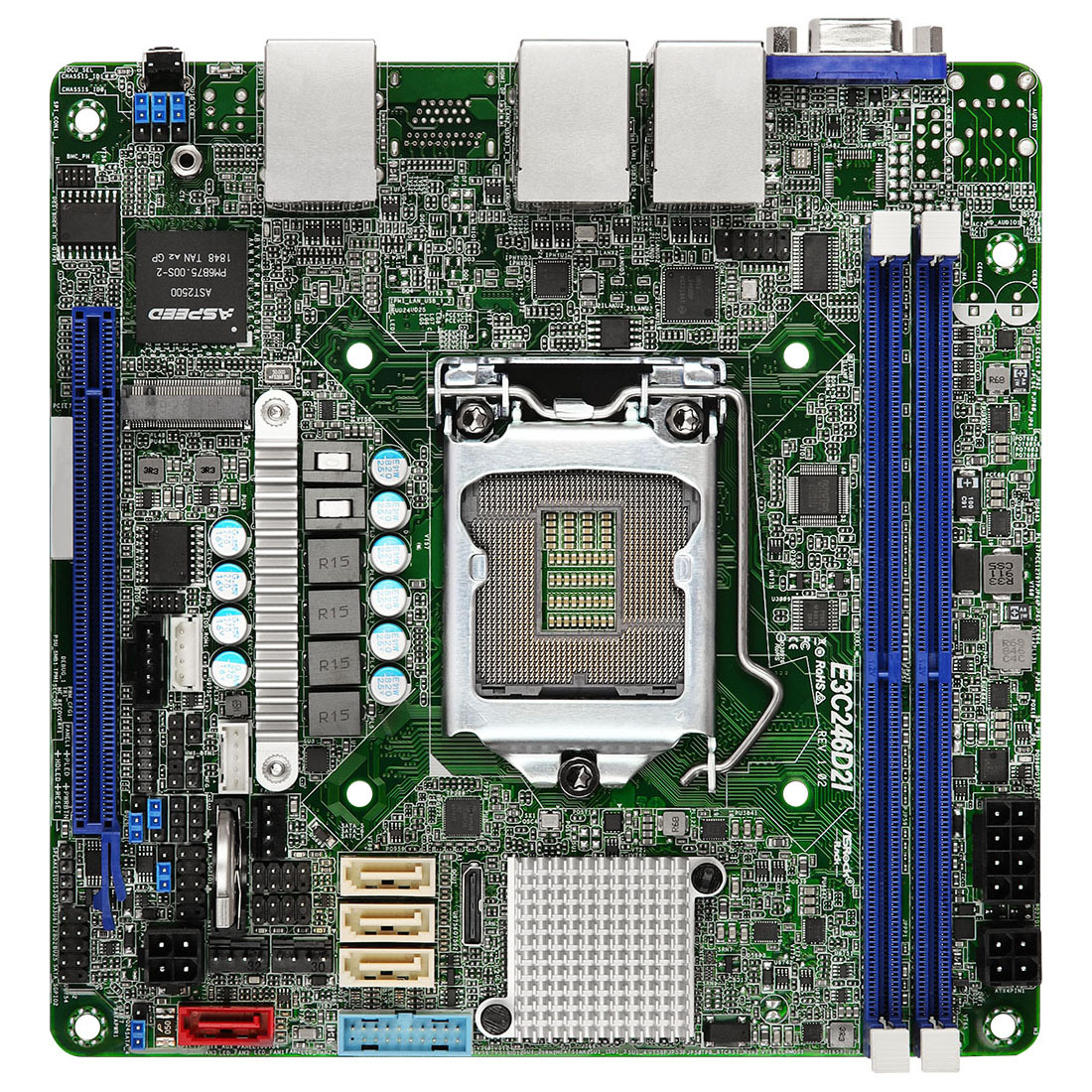

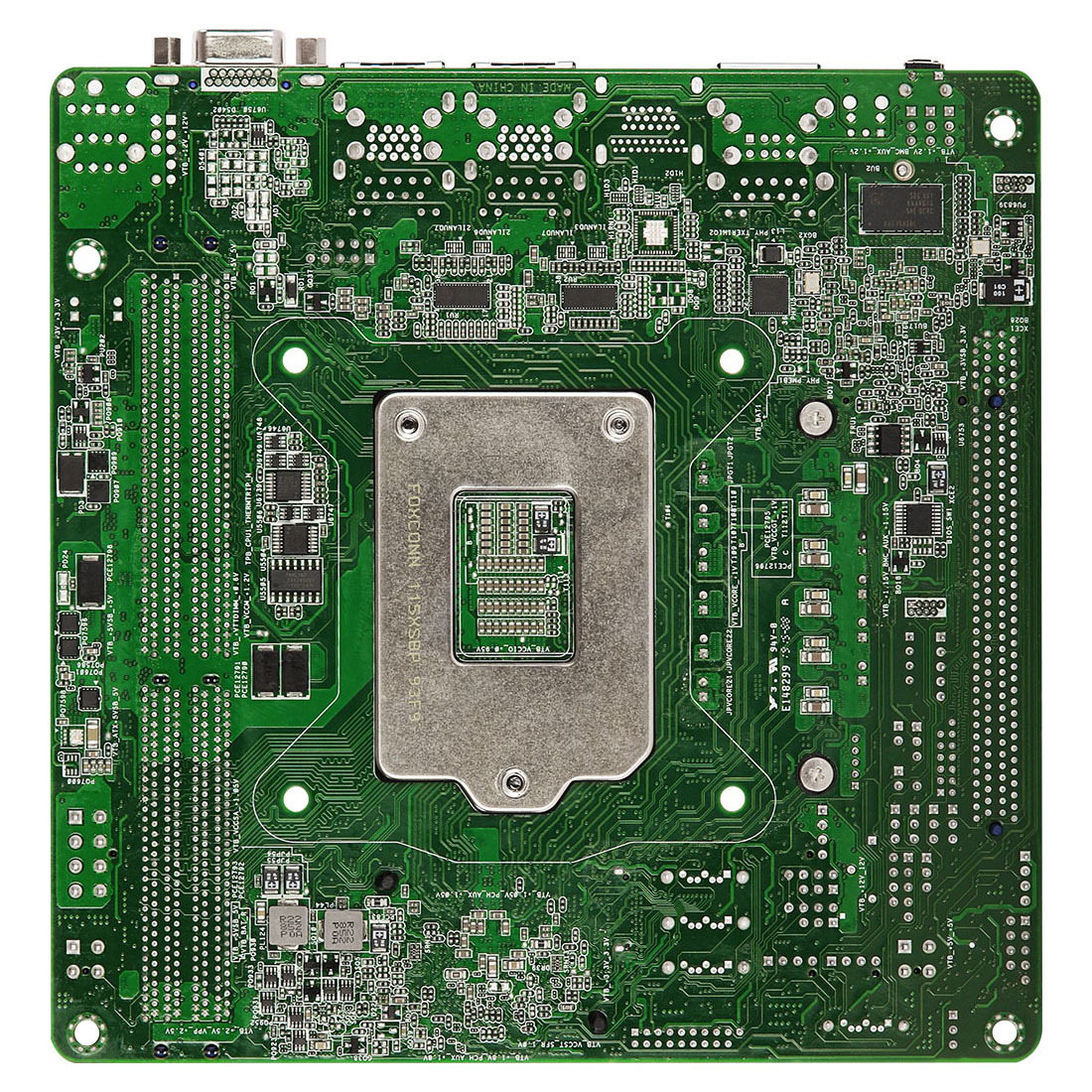

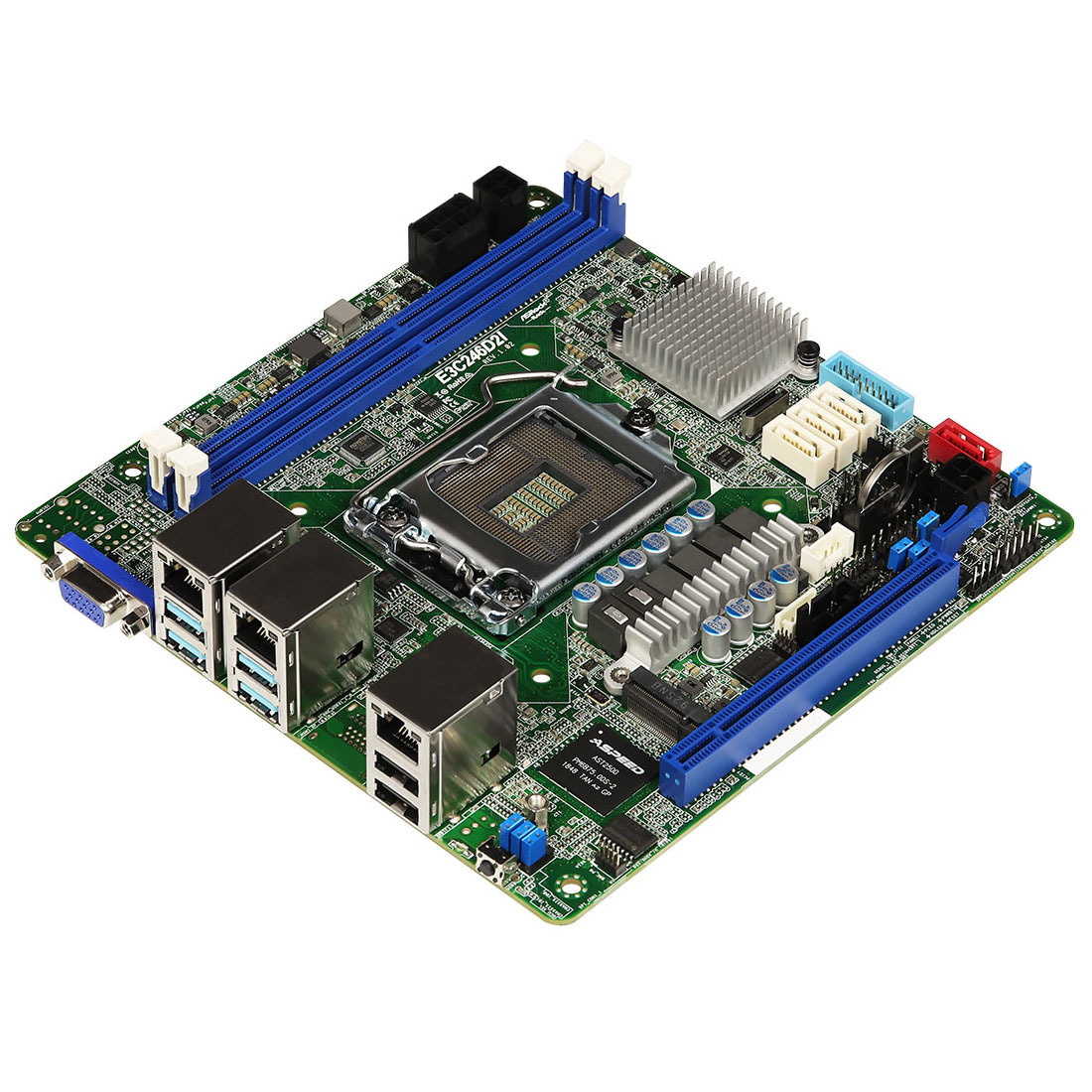

E3C246D2I

型號E3C246D2I

Supports Intel Xeon E-2100/E-2200 Processors

Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 32 GB

4 SATA3 (1 SATA DOM included), 1 OCuLink connector with 4 SATA ports

Supports 1x PCIe 3.0 x16, 1 x M.2

立即查詢

尺寸規格
規格 - mini-ITX
尺寸 - 6.7'' x 6.7'' (17.02 cm x17.02 cm)
 處理器系統
中央處理器 - Supports Intel® Xeon® E-2100/E-2200 Processors (Max. 95W)
晶片組 - Intel® C246
 記憶體
容量 - 2 x DDR4 DIMM slots
規格 - Dual Channel memory technology
- Supports DDR4 2133/2400/2666 ECC UDIMM*

*The non-ECC UDIMMs support Client OS only.
DIMM Size Per DIMM ECC and non-ECC UDIMM : 4GB, 8GB, 16GB, 32GB
電壓 - 1.2V
 擴充插槽
PCIe 3.0 x 16 - SLOT7: Gen3 x16 link
 儲存
SATA控制器 - Intel® C246: 1 x OCuLINK (SATA_0,1,2,3)*; 4 x SATA3 6Gb/s (SATA_4,5,6,7), 1 x SATA DOM included

*Please contact sales to buy the OCuLink to 4x SATA cable
NVMe 裝置 - NVMe SSDs PCIEx4 (Share with SATA_0,1,2,3)
M.2 - 1 x M.2 (NGFF 2242, PCI-E Gen3 x4 link or SATA signal)*

*SATA 1 will be disable when M.2 is SATA signal
 SAS 控制器
介面 - 1000 /100 /10 Mbps
網路控制器 - 2 x RJ45 GLAN by Intel® i210+Intel® i219LM
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function(TBD)
- Supports PXE
- LAN1 supports NCSI
 管理
整合式基板管理控制器 - ASPEED AST2500
智慧型平台頻外管理介面 - 1 x Realtek RTL8211E for dedicated management GLAN
特點 - Watch Dog
- NMI
 顯示
控制器 - ASPEED AST2500
視訊隨機存取記憶 - DDR4 16MB
 背板輸出 / 入接口

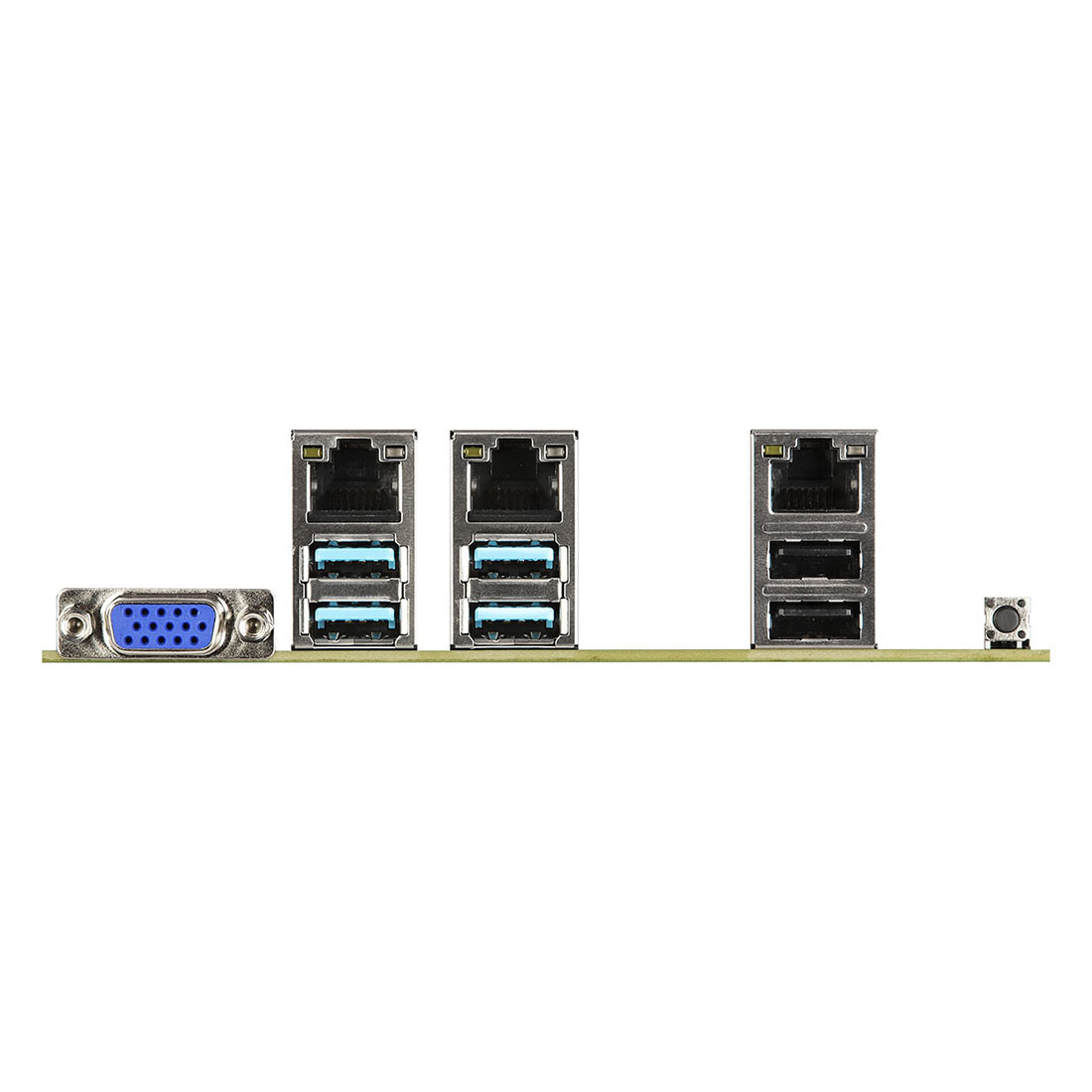

顯示器接頭 - 1 x D-Sub
USB 2.0 埠 - 2
USB 3.2 Gen1 埠 - N/A
USB 3.2 Gen2 埠 - 4 (Type A Gen2 x4)
RJ-45 網路埠 - RJ45: 2x GLAN(by Intel® i210+ Intel® i219LM)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID 按鈕 / UID LED - 1
音效 - N/A
 內建接頭
COM 埠接針 - 1
SATA DOM - 1
M.2 - 1(2242, PCIE(x4)/SATA3 6Gb/s(SATA 1))
OCuLink - 1
輔助面板接針 - 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED)
TR1接針 - 1
可信任平台模組接針 - 1
IPMB 接針 - 1
蜂鳴器 - N/A
風扇接針 - 3(1CPU/1Front/1Rear)
24針ATX電源連接埠 - 1x (4-pin)
DC IN - 1x (8-pin)
USB 3.2 (Gen1) 針狀接頭 - 1 (support 2 USB 3.0)
USB 2.0 針狀接頭 - N/A
PWR SMB Header - 1
前置面板 - 1 (RST, HDLED, PLED, PERBTN)
Serial ATA3 Connector - 3
SATA Power Connector - 1x (4-pin)
前置面板 - 1(4pin)
SGPIO Header - 2
SMBUS from BMC - 1
Clear CMOS - 1 (short pad)
 內建 LED
Port 80 LED - N/A
 系統BIOS
BIOS規格 - 128Mb AMI UEFI Legal BIOS
BIOS特點 - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
 硬體監控
溫度 - CPU Temperature Sensing
- System Temperature Sensing
- System Inlet Temperature Sensing
風扇 - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
電壓 - +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
 作業系統支援
作業系統 Microsoft® Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.10 (64 bit) / 7.5 (64 bit)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit)
- Ubuntu 16.04 (64 bit)/ 18.04 (64 bit)
Virtual
- VMWare® ESXi 6.5 u1
- Win hyper-V Server 2016





處理器相容列表

腳位 系列 編號 核心 頻率 快取 功耗 支援的BIOS
1151 Xeon E-2288G(U0) Coffee Lake-S Refresh 3.70 GHz 16MB 95W P2.20
1151 Xeon E-2286G(U0) Coffee Lake-S Refresh 4.00 GHz 12MB 95W P2.20
1151 Xeon E-2278G(U0) Coffee Lake-S Refresh 3.40 GHz 16MB 80W P2.20
1151 Xeon E-2276G(U0) Coffee Lake-S Refresh 3.80 GHz 12MB 80W P2.20
1151 Xeon E-2274G(U0) Coffee Lake-S Refresh 4.00 GHz 8MB 83W P2.20
1151 Xeon E-2246G(U0) Coffee Lake-S Refresh 3.60 GHz 12MB 80W P2.20
1151 Xeon E-2244G(U0) Coffee Lake-S Refresh 3.80 GHz 8MB 71W P2.20
1151 Xeon E-2236(U0) Coffee Lake-S Refresh 3.40 GHz 12MB 80W P2.20
1151 Xeon E-2234(U0) Coffee Lake-S Refresh 3.60 GHz 8MB 71W P2.20
1151 Xeon E-2226G(U0) Coffee Lake-S Refresh 3.40 GHz 12MB 80W P2.20
1151 Xeon E-2224G(U0) Coffee Lake-S Refresh 3.50 GHz 8MB 71W P2.20
1151 Xeon E-2224(U0) Coffee Lake-S Refresh 3.40 GHz 8MB 71W P2.20
1151 Xeon E-2186G(U0) Coffee Lake-S 3.8GHz 12MB 95W All
1151 Xeon E-2176G(U0) Coffee Lake-S 3.7GHz 12MB 80W All
1151 Xeon E-2174G(U0) Coffee Lake-S 3.8GHz 8MB 71W All
1151 Xeon E-2146G(U0) Coffee Lake-S 3.5GHz 12MB 80W All
1151 Xeon E-2136 (U0) Coffee Lake-S 3.3GHz 12MB 80W All
1151 Xeon E-2134 (U0) Coffee Lake-S 3.5GHz 8MB 71W All
1151 Xeon E-2126G(U0) Coffee Lake-S 3.3GHz 12MB 80W All
1151 Xeon E-2124G(U0) Coffee Lake-S 3.4GHz 8MB 71W All
1151 Xeon E-2124(U0) Coffee Lake-S 3.3GHz 8MB 71W All
1151 Xeon E-2104G(U0) Coffee Lake-S 3.2GHz 8MB 65W All
1151 Pentium G5620(B0) Coffee Lake-S 4.00 GHz 4MB 54W P2.20
1151 Pentium G5600T(B0) Coffee Lake-S 3.30 GHz 4MB 35W P2.20
1151 Pentium G5600F(B0) Coffee Lake-S 3.90 GHz 4MB 54W P2.20
1151 Pentium G5600(B0) Coffee Lake-S 3.9GHz 4MB 54W All
1151 Pentium G5500T(B0) Coffee Lake-S 3.2GHz 4MB 35W All
1151 Pentium G5500(B0) Coffee Lake-S 3.8GHz 4MB 54W All
1151 Pentium G5420T(U0) Coffee Lake-S 3.20 GHz 4MB 35W P2.20
1151 Pentium G5420T(B0) Coffee Lake-S 3.20 GHz 4MB 35W P2.20
1151 Pentium G5420(U0) Coffee Lake-S 3.80 GHz 4MB 58W P2.20
1151 Pentium G5420(B0) Coffee Lake-S 3.80 GHz 4MB 54W P2.20
1151 Pentium G5400T(U0) Coffee Lake-S 3.1GHz 4MB 35W All
1151 Pentium G5400T(B0) Coffee Lake-S 3.1GHz 4MB 35W All
1151 Pentium G5400(U0) Coffee Lake-S 3.7GHz 4MB 58W All
1151 Pentium G5400(B0) Coffee Lake-S 3.7GHz 4MB 54W All
1151 Pentium G4950(B0) Coffee Lake-S 3.30 GHz 2MB 54W P2.20
1151 Pentium G4930T(B0) Coffee Lake-S 3.00 GHz 2MB 35W P2.20
1151 Pentium G4930(B0) Coffee Lake-S 3.20 GHz 2MB 54W P2.20
1151 Core i9 i9-9900T(R0) Coffee Lake-S 2.10GHz 16MB 35W P2.20
1151 Core i9 i9-9900KF(R0) Coffee Lake-S 3.60 GHz 16MB 95W P2.20
1151 Core i9 i9-9900K(R0) Coffee Lake-S 3.60 GHz 16MB 95W P2.20
1151 Core i9 i9-9900K(P0) Coffee Lake-S 3.6GHz 16MB 95W All
1151 Core i9 i9-9900(R0) Coffee Lake-S 3.10 GHz 16MB 65W P2.20
1151 Core i7 i7-9700KF(R0) Coffee Lake-S 3.60 GHz 12MB 95W P2.20
1151 Core i7 i7-9700K(R0) Coffee Lake-S 3.60 GHz 12MB 95W P2.20
1151 Core i7 I7-9700K(P0) Coffee Lake-S 3.6GHz 12MB 95W All
1151 Core i7 i7-9700F(R0) Coffee Lake-S 3.00 GHz 12MB 65W P2.20
1151 Core i7 i7-9700(R0) Coffee Lake-S 3.00 GHz 12MB 65W P2.20
1151 Core i7 i7-8700T(U0) Coffee Lake-S 2.4GHz 12MB 35W All
1151 Core i7 i7-8700K(U0) Coffee Lake-S 3.7GHz 12MB 95W All
1151 Core i7 i7-8700(U0) Coffee Lake-S 3.2GHz 12MB 65W All
1151 Core i5 i5-9600T(U0) Coffee Lake-S 2.30 GHz 9MB 35W P2.20
1151 Core i5 i5-9600KF(P0) Coffee Lake-S 3.70 GHz 9MB 95W P2.20
1151 Core i5 i5-9600K(P0) Coffee Lake-S 3.7GHz 9MB 95W All
1151 Core i5 i5-9600K Coffee Lake-S 3.70 GHz 9MB 95W P2.20
1151 Core i5 i5-9600(U0) Coffee Lake-S 3.10 GHz 9MB 65W P2.20
1151 Core i5 i5-9500T(U0) Coffee Lake-S 2.20 GHz 9MB 35W P2.20
1151 Core i5 i5-9500F(U0) Coffee Lake-S 3.00 GHz 9MB 65W P2.20
1151 Core i5 i5-9500(U0) Coffee Lake-S 3.00 GHz 9MB 65W P2.20
1151 Core i5 i5-9400T(U0) Coffee Lake-S 1.80 GHz 9MB 35W P2.20
1151 Core i5 i5-9400T(R0) Coffee Lake-S 1.80 GHz 9MB 35W P2.20
1151 Core i5 i5-9400F(U0) Coffee Lake-S 2.90 GHz 9MB 65W P2.20
1151 Core i5 i5-8600T(U0) Coffee Lake-S 2.3GHz 9MB 35W All
1151 Core i5 i5-8600K(U0) Coffee Lake-S 3.6GHz 9MB 95W All
1151 Core i5 i5-8600(U0) Coffee Lake-S 3.1GHz 9MB 65W All
1151 Core i5 i5-8500T(U0) Coffee Lake-S 2.1GHz 9MB 35W All
1151 Core i5 i5-8500(U0) Coffee Lake-S 3GHz 9MB 65W All
1151 Core i5 i5-8400T(U0) Coffee Lake-S 1.7GHz 9MB 35W All
1151 Core i5 i5-8400(U0) Coffee Lake-S 2.8GHz 9MB 65W All
1151 Core i3 i3-9350KF(B0) Coffee Lake-S 4.00 GHz 8MB 91W P2.20
1151 Core i3 i3-9350K Coffee Lake-S 4.00 GHz 8MB 91W P2.20
1151 Core i3 i3-9300T Coffee Lake-S 3.20 GHz 8MB 35W P2.20
1151 Core i3 i3-9300 Coffee Lake-S 3.70 GHz 8MB 62W P2.20
1151 Core i3 i3-9100T Coffee Lake-S 3.10 GHz 6MB 35W P2.20
1151 Core i3 i3-9100F(U0) Coffee Lake-S 3.60 GHz 6MB 65W P2.20
1151 Core i3 i3-9100F(B0) Coffee Lake-S 3.60 GHz 6MB 65W P2.20
1151 Core i3 i3-9100 Coffee Lake-S 3.60 GHz 6MB 65W P2.20
1151 Core i3 i3-8350K(B0) Coffee Lake-S 4.0GHz 8MB 91W All
1151 Core i3 i3-8300T(B0) Coffee Lake-S 3.2GHz 8MB 35W All
1151 Core i3 i3-8300(B0) Coffee Lake-S 3.7GHz 8MB 62W All
1151 Core i3 i3-8100T(B0) Coffee Lake-S 3.1GHz 6MB 35W All
1151 Core i3 i3-8100(U0) Coffee Lake-S 3.6GHz 6MB 65W All
1151 Core i3 i3-8100(B0) Coffee Lake-S 3.6GHz 6MB 65W All
1151 Celeron G4920(B0) Coffee Lake-S 3.2GHz 2MB 54W All
1151 Celeron G4900T(B0) Coffee Lake-S 2.9GHz 2MB 35W All
1151 Celeron G4900(B0) Coffee Lake-S 3.1GHz 2MB 54W All





記憶體相容列表

類型 速度 記憶體 容量 供應商 模組 型號 單元
DDR4 2666 non-ECC 8GB Apacer 78.C1GS7.AT40B 7YE77D9WFH Micron
DDR4 2666 non-ECC 8GB Kingston KVR26N19S8/8 8IE75D9VPP Micron
DDR4 2666 ECC 8GB Kingston KSM26ES8/8ME 8BE75D9VPP Micron
DDR4 2666 non-ECC 4GB ADTEC ADS2400U04G184SFS K4A4G085WF BCTD Sec
DDR4 2666 ECC 32GB Samsung M391A4G43MB1-CTDQ 901 K4AAG085WM BCTD Sec
DDR4 2666 ECC 16GB ADTEC ADS2400E16G284SCS K4A8G085WC BCTD Sec
DDR4 2666 non-ECC 16GB Crucial CT16G4DFD8266.C16FD1 8HD75C9BGT Micron
DDR4 2666 ECC 16GB Kingston KSM26ED8/16ME 8CE75D9VPP Micron
DDR4 2400 ECC 8GB Crucial CT8G4WFD824A.18FB1 6CB77D9TGJ Micron
DDR4 2400 ECC 8GB Hynix HMA81GU7AFR8N-UHT0 H5AN8G8NAFR Hynix
DDR4 2400 non-ECC 4GB Apacer 78.B1GMS.4050B K4A4G085WD BCRC Sec
DDR4 2400 ECC 16GB Crucial CT16G4WFD824A.18FB1 6AB47D9TBH Micron
DDR4 2400 ECC 16GB Hynix HMA82GU7AFR8N-UHT0 H5AN8G8NAFR Hynix
DDR4 2133 ECC 16GB Crucial CT16G4WFD8213.18FB1 6YB75D9TBH Micron
