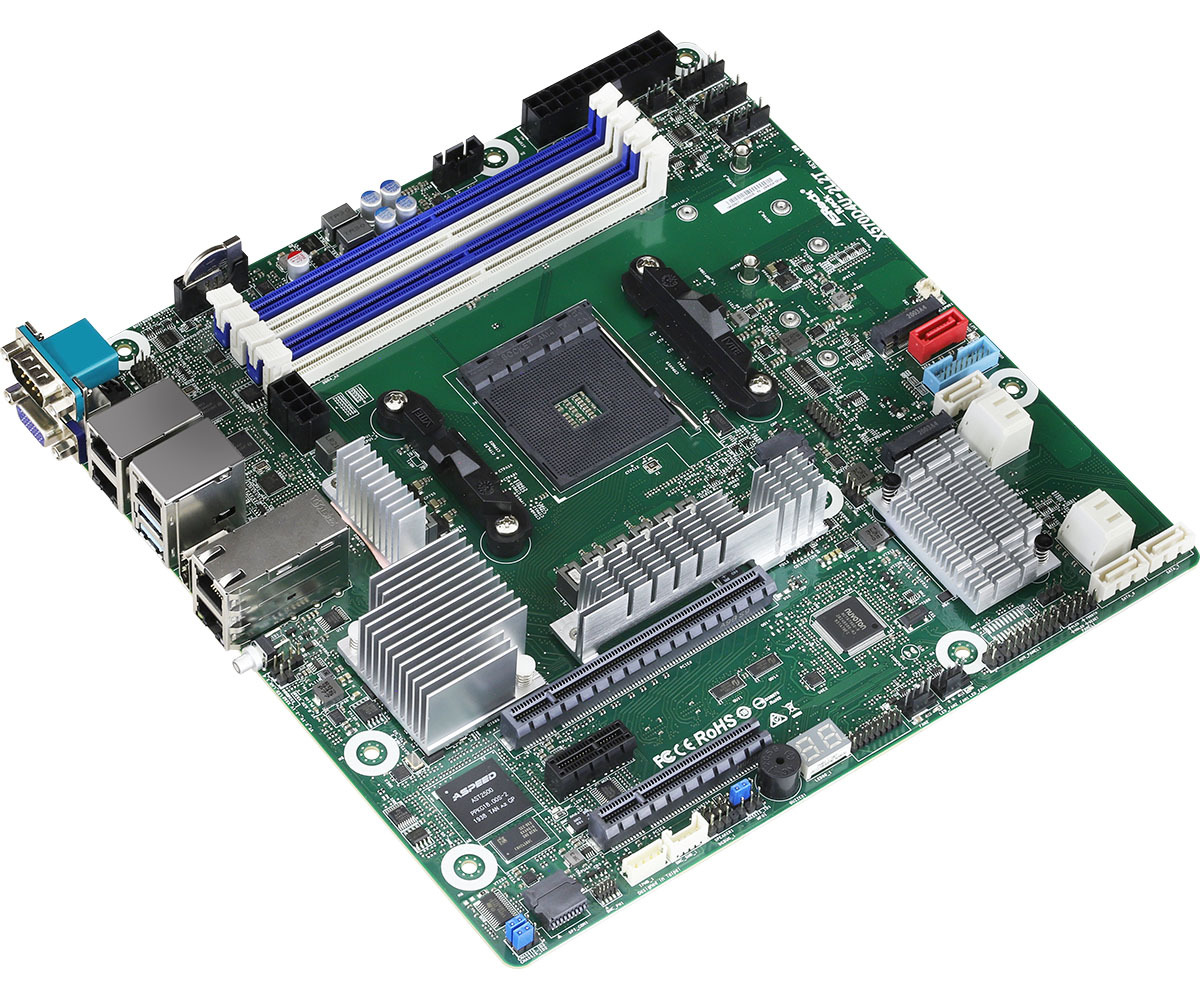

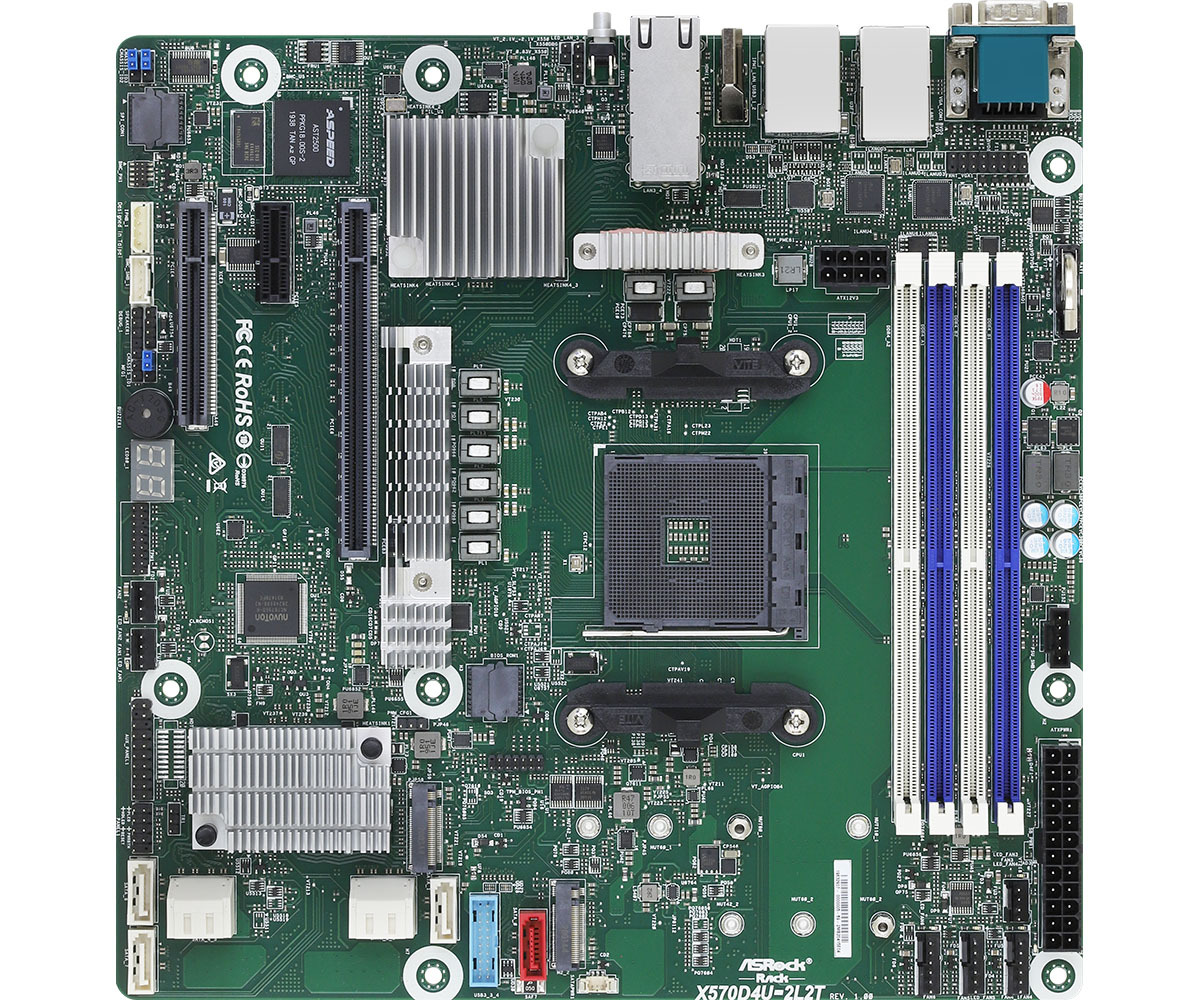

X570D4U-2L2T
型號X570D4U-2L2T
micro-ATX (9.6"x 9.6")
Supports 3rd Gen AMD Ryzen™ Processors
4 DIMMs
1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1
Dual 10 GbE RJ45
Dual 1 GbE RJ45
2 M.2 (PCIe4.0x4/ SATA)
8 SATA 6Gb/s
AST2500 Remote management (IPMI)
HDMI
立即查詢
詳細規格
| 主機板尺寸規格 | |
| 主機板規格 | - micro-ATX |
| 主機板尺寸 | - 9.6"x9.6" (244mmx 244mm) |
| 處理器系統 | |
| 中央處理器 | - supports 3rd Gen AMD Ryzen™ Processors and 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| 針腳 | - AM4 PGA 1331 |
| 電源設計 | - 105W |
| 晶元組 | - AMD X570 |
| 記憶體 | |
| 容量 | - 4 DIMM slots (2DPC) |
| 規格 | - 288-pin DDR4 ECC* and non-ECC UDIMM * ECC support varies by CPU |
| DIMM Size Per DIMM | - up to 32GB per DIMM |
| DIMM Frequency | - 3rd Gen AMD Ryzen™ Processors : up to 3200 MHz - 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics: up to 2666 MHz |
| 電壓 | - 1.2V |
| 擴充插槽 | |
| PCIe 4.0 x 16 | - SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| PCIe 4.0 x 8 | -SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| PCIe 4.0 x 1 | - SLOT5: PCIe 4.0 x1* *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| M.2 | - 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] - 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570] *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| 儲存 | |
| SATA控制器 | - X570 (12 SATA 6Gb/s, support RAID 0/1/10): - 8 SATA 7-pin connectors, including 1 support SATA DOM - 4 SATA via optional M2-HD M.2 device |
| 乙太網路 | |
| Additional GbE Controller | - 2 RJ45 (10GbE) by Intel® X550-AT2 - 2 RJ45 (1GbE) by Intel® i210 |
| 管理 | |
| 整合式基板管理控制器 | - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 |
| 智慧型平臺頻外管理介面 | - 1 x Realtek RTL8211E for dedicated management GLAN |
| 顯示 | |
| 控制器 | - ASPEED AST2500: - 1 DB15, 1 (15-pin) header - 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics: - 1 HDMI |

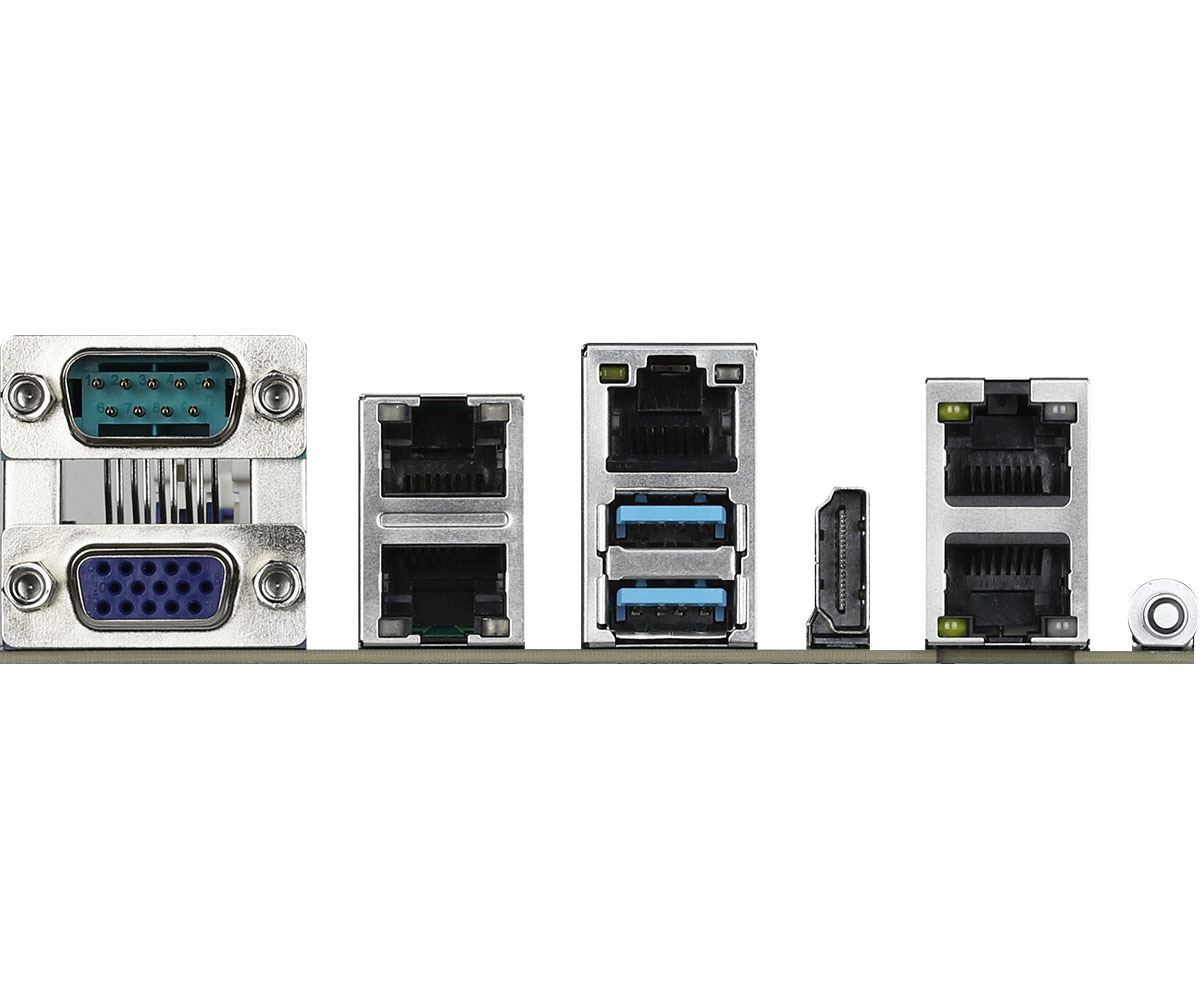

| 背板輸出 / 入介面 | |
| HDMI | - 1 |
| 顯示器接頭 | - 1 |
| USB 3.1 Gen2 埠 | - 2 |
| RJ-45 網路埠 | - 2 RJ45(1GbE), 2 RJ45 (10GbE) |
| Dedicate LAN | - 1 |
| 序列連接埠 | - 1 |
| UID 按鈕 / UID LED | - 1 |
| 內建接頭 | |
| 前網路 LED 接頭 | - 1 for LAN3/LAN4 |
| 輔助面板接針 | - 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TR1接針 | - 1 |
| 可信任平臺模組接針 | - 1 (17-pin, LPC), 1 (13-pin, SPI) |
| IPMB 接針 | - 1 |
| VGA 接針 | - 1 |
| 蜂鳴器 | - 1 |
| 風扇接針 | - 3 (6-pin), 3 (4-pin) |
| 前置面板 | - 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| 前置面板 | - 1 |
| BMC_SMB Header | - 1 |
| 電源接頭 | - 1 ATX main power (24-pin), 1 ATX 12V (8-pin) |
| Clear CMOS | - 1 contact pads |
| 內建 LED | |
| Standby PWR LED 5vsb | - 1 |
| Port 80 LED | - 1 |
| Fan Fail LED | - 6 |
| 系統BIOS | |
| BIOS規格 | -32MB AMI UEFI Legal BIOS |
| BIOS特點 | - Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash |
| 硬體監控 | |
| 溫度 | - CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing |
| 風扇 | - Fan Tachometer - Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control |
| 電壓 | - 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V |
| 環境 | |
| 溫度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
CPU Support List
| Socket | Family | Model | Core | Frequency | Cache | Power | Since BIOS |
| AM4 | Ryzen 7 PRO | 4750G(100-000000145) | Renoir | 3.6GHz | 4MB | 65W | P1.20 |
| AM4 | Ryzen 7 PRO | 4750GE(100-000000152) | Renoir | 3.1GHz | 4MB | 35W | P1.20 |
| AM4 | Ryzen 7 | 4700G(100-000000146) | Renoir | 3.6GHz | 4MB | 65W | P1.20 |
| AM4 | Ryzen 7 | 4700GE(100-000000149) | Renoir | 3.1GHz | 4MB | 35W | P1.20 |
| AM4 | Ryzen 5 PRO | 4650G(100-000000143) | Renoir | 3.7GHz | 3MB | 65W | P1.20 |
| AM4 | Ryzen 5 PRO | 4650GE(100-000000153) | Renoir | 3.3GHz | 3MB | 35W | P1.20 |
| AM4 | Ryzen 5 | 4600G(100-000000147) | Renoir | 3.7GHz | 3MB | 65W | P1.20 |
| AM4 | Ryzen 5 | 4600GE(100-000000150) | Renoir | 3.3GHz | 3MB | 35W | P1.20 |
| AM4 | Ryzen 3 PRO | 4350G(100-000000148) | Renoir | 3.8GHz | 2MB | 65W | P1.20 |
| AM4 | Ryzen 3 PRO | 4350GE(100-000000154) | Renoir | 3.5GHz | 2MB | 35W | P1.20 |
| AM4 | Ryzen 3 | 4300G(100-000000144) | Renoir | 3.8GHz | 2MB | 65W | P1.20 |
| AM4 | Ryzen 3 | 4300GE(100-000000151) | Renoir | 3.5GHz | 2MB | 35W | P1.20 |
| AM4 | Ryzen 9 PRO | 3900(100-000000072) | Matisse Ridge | 3.10 GHz | 6MB | 65W | All |
| AM4 | Ryzen 9 | 3950X(100-000000051) | Matisse Ridge | 3.50GHz | 8MB | 105W | All |
| AM4 | Ryzen 9 | 3900XT(100-000000277) | MATISSE2 | 3.8GHz | 6MB | 105W | P1.20 |
| AM4 | Ryzen 9 | 3900X(100-000000023) | Matisse Ridge | 3.80GHz | 2MB | 105W | All |
| AM4 | Ryzen 7 | 3800X(100-000000025) | Matisse Ridge | 3.9GHz | 4MB | 105W | P1.20 |
| AM4 | Ryzen 7 | 3800XT(100-000000279) | MATISSE2 | 3.9GHz | 4MB | 105W | P1.20 |
| AM4 | Ryzen 7 | 3700X(100-000000071) | Matisse Ridge | 3.60 GHz | 4MB | 65W | All |
| AM4 | Ryzen 5 PRO | 3600(100-000000029) | Matisse Ridge | 3.60GHz | 65W | All | |
| AM4 | Ryzen 5 PRO | 3400G(YD340BC5M4MFH) | Picasso Ridge | 3.70 GHz | 2MB | 65W | All |
| AM4 | Ryzen 5 | 3600XT(100-000000281) | MATISSE2 | 3.8GHz | 3MB | 95W | P1.20 |
| AM4 | Ryzen 5 | 3600X(100-000000022) | Matisse Ridge | 3.80 GHz | 3MB | 95W | All |
| AM4 | Ryzen 5 | 3600(100-000000031) | Matisse Ridge | 3.60 GHz | 3MB | 65W | All |
| AM4 | Ryzen 5 | 3400G(YD3400C5M4MFH) | Picasso Ridge | 3.70 GHz | 2MB | 65W | All |
| AM4 | Ryzen 5 | 3400GE(YD3400C6M4MFH) | Picasso Ridge | 3.30 GHz | 2MB | 35W | All |
| AM4 | Ryzen 3 PRO | 3200G(YD320BC5M4MFH) | Picasso Ridge | 3.60 GHz | 2MB | 45-65W | All |
| AM4 | Ryzen 3 | 3200G(YD3200C5M4MFH) | Picasso Ridge | 3.60 GHz | 2MB | 65W | All |
| AM4 | Ryzen 3 | 3200GE(YD3200C6M4MFH) | Picasso Ridge | 3.30 GHz | 2MB | 35W | All |
| AM4 | Ryzen 5 PRO | 3400G(YD340BC5M4MFH) | Picasso Ridge | 3.7GHz | 2MB | 65W | P1.30 |
| AM4 | Ryzen 3 PRO | 3200GE(YD320BC6M4MFH) | Picasso Ridge | 3.3GHz | 2MB | 35W | P1.30 |
| AM4 | Ryzen 7 PRO | 3700(100-000000073) | Matisse Ridge | 3.6GHz | 4MB | 65W | P1.30 |
| AM4 | Ryzen 7 | 3700X(100-000000071) | Matisse Ridge | 3.6GHz | 4MB | 65W | P1.30 |
| AM4 | Ryzen 5 | 3500X(100-000000158) | Matisse Ridge | 3.6GHz | 3MB | 65W | P1.30 |
| AM4 | Ryzen 7 | 5800X(100-000000063) | Vermeer | 3.8GHz | 4MB | 105W | P1.30 |
| AM4 | Ryzen 9 | 5900X(100-000000061) | Vermeer | 3.7GHz | 6MB | 105W | P1.30 |
| AM4 | Ryzen 9 | 5950X(100-000000059) | Vermeer | 3.4GHz | 8MB | 105W | P1.30 |
| AM4 | Ryzen 3 | 3300X(100-000000159) | Matisse Ridge | 3.8GHz | 2MB | 65W | P1.30 |
| AM4 | Ryzen 3 | 3100(100-000000284) | Matisse Ridge | 3.6GHz | 2MB | 65W | P1.30 |
| AM4 | Ryzen 5 PRO | 3400GE(YD340BC6M4MFH) | Picasso Ridge | 3.3GHz | 2MB | 35W | P1.30 |
| AM4 | Ryzen 5 | 5600X(100-000000065) | Vermeer | 3.7GHz | 3MB | 65W | P1.30 |
Memory QVL
| Type | Speed | DIMM | Size | Vendor | Module | Part No | Cell |
| DDR4 | 3200 | non-ECC | 32GB | Crucial | CT32G4DFD832A.16FB1 | 0AB45D9XPF | Micron |
| DDR4 | 3200 | ECC | 32GB | Kingston | KSM32ED8/32ME | 0JE45D9ZFV | Micron |
| DDR4 | 3200 | non-ECC | 16GB | Crucial | CT16G4DFD832A.16FE1 | 9LE75D9WFL | Micron |
| DDR4 | 3200 | ECC | 16GB | Kingston | KSM32ES8/16ME | 0IE45D9ZFV | Micron |
| DDR4 | 2933 | ECC | 32GB | Samsung | M391A4G43AB1-CVFQ | K4A8G085WABCWF | Sec |
| DDR4 | 2666 | ECC | 32GB | Hynix | HMAA4GU7AJR8N | H5ANAG8NAJR VKC | Hynix |
| DDR4 | 2666 | non-ECC | 16GB | Crucial | CT16G4DFD8266.C16FD1 | 8HD75C9BGT | Micron |
| DDR4 | 2666 | ECC | 16GB | Kingston | KSM26ED8/16ME | 8CE75D9VPP | Micron |
| DDR4 | 2666 | non-ECC | 16GB | Samsung | M378A2K43CB1-CTD | K4A8G085WC BCTD | Sec |
| DDR4 | 2666 | ECC | 16GB | Samsung | M391A2K43DB1-CTDQ | K4A8G085WD BCTD | Sec |
| DDR4 | 2400 | ECC | 8GB | Hynix | HMA81GU7AFR8N-UHT0 | H5AN8G8NAFR | Hynix |
| DDR4 | 2400 | non-ECC | 16GB | Crucial | CT16G4DFD824A-16FB1 | 5WB47D9TBH | Micron |
| DDR4 | 2400 | ECC | 16GB | Hynix | HMA82GU7AFR8N-UHT0 | H5AN8G8NAFR | Hynix |
| 型號 | X570D4U-2L2T |
