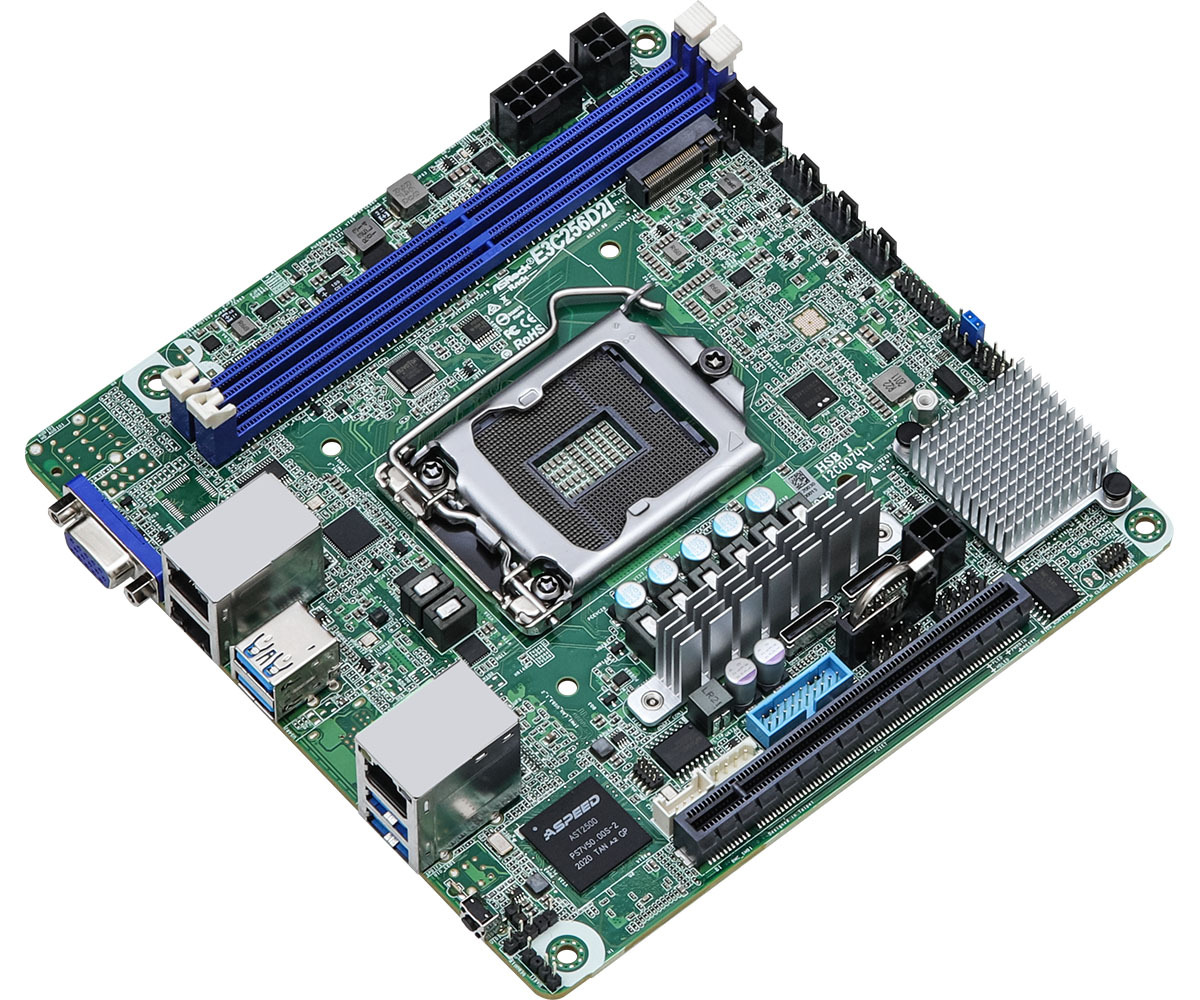

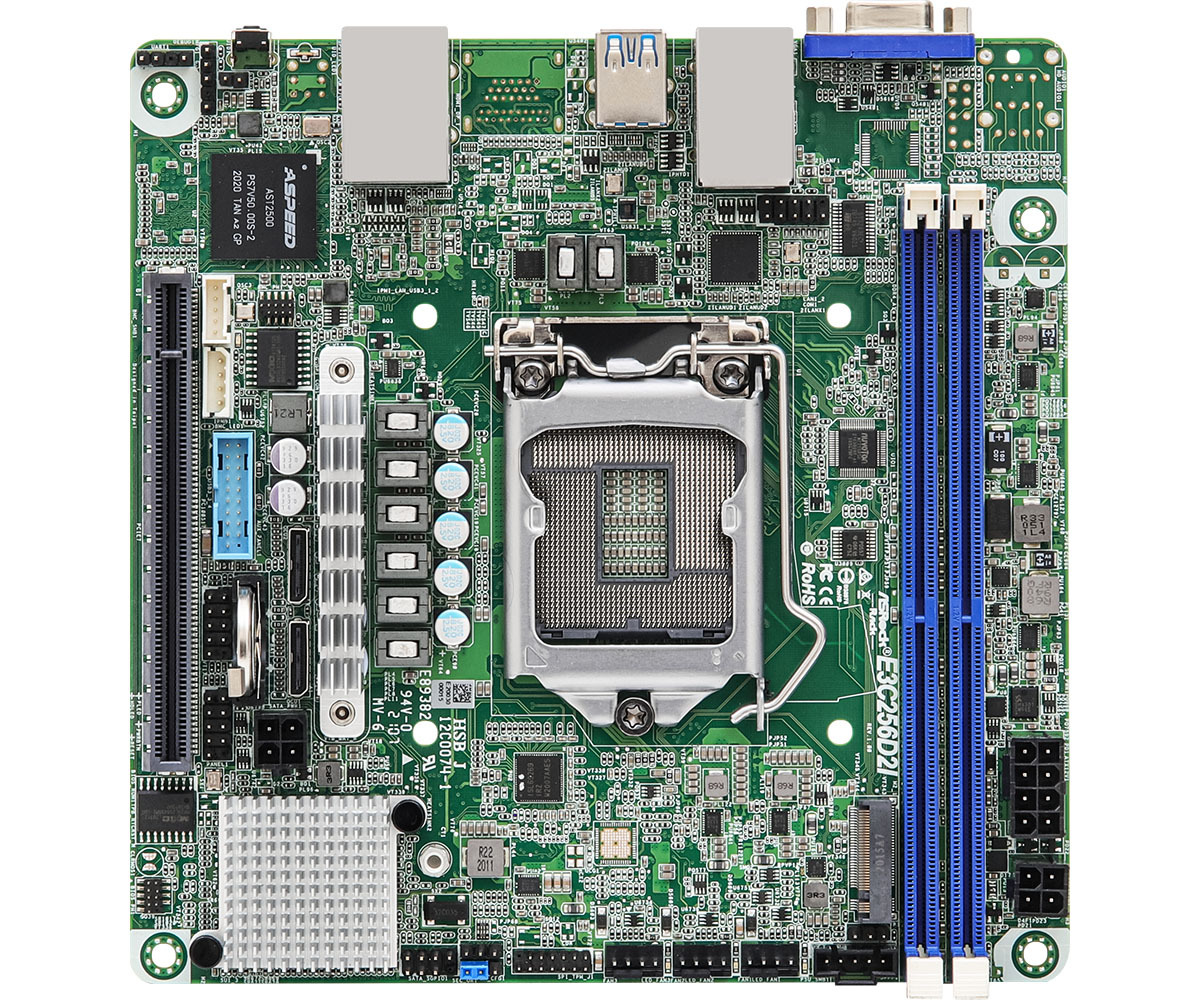

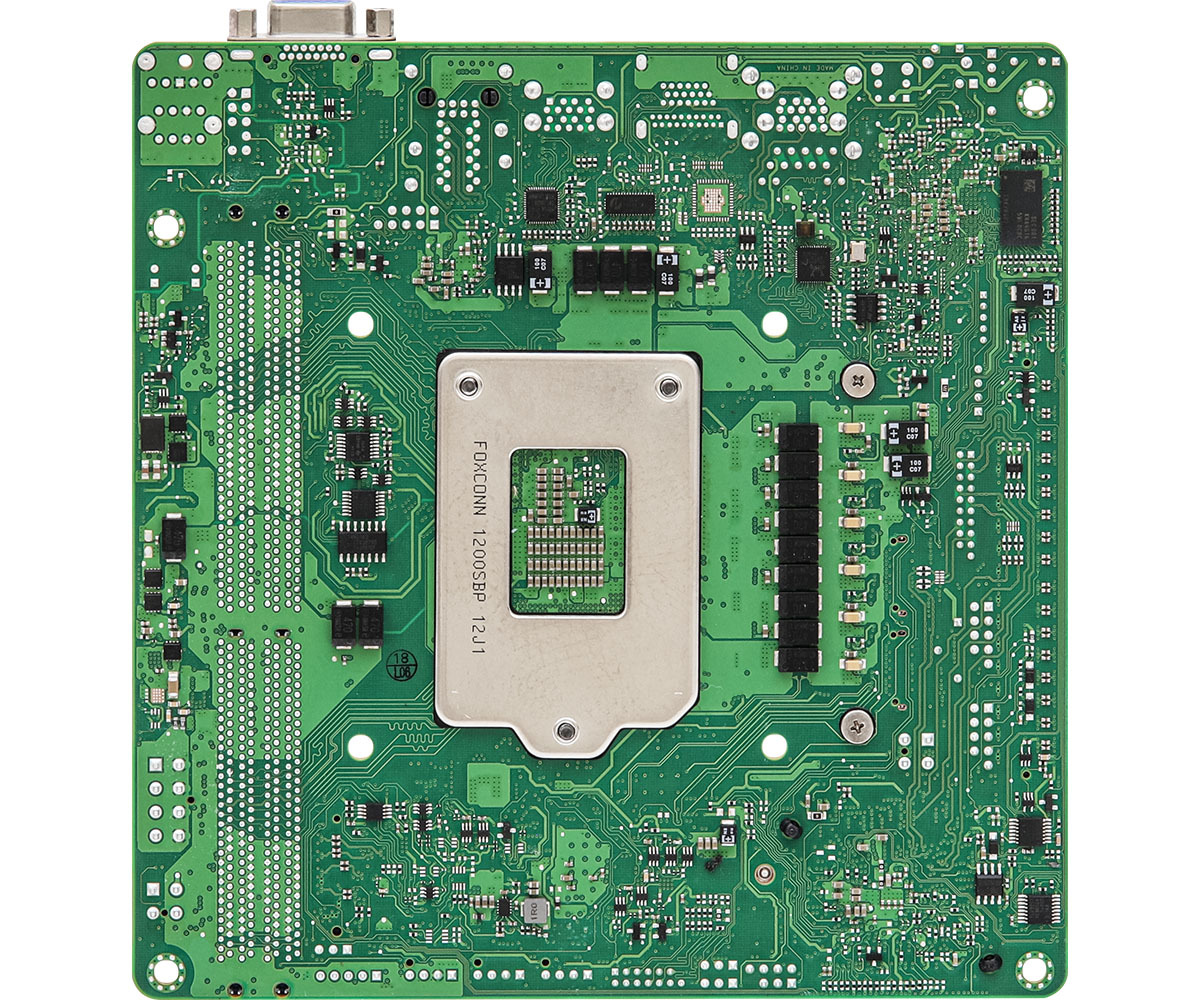

E3C256D2I

型號E3C256D2I

mini-ITX (6.7" x 6.7")

Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors

2 DIMM slots (1DPC), supports DDR4 ECC/non-ECC UDIMM

1 PCIe4.0 x16

2 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)

Supports 1 M.2 (PCIe4.0 x4)

立即查詢

詳細規格

尺寸規格
規格 mini-ITX
尺寸 6.7'' x 6.7'' (170.2mm x 170.2mm)
 處理器系統
中央處理器 Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
針腳 Single Socket H5 (LGA1200)
晶片組 Intel® C256
 記憶體
容量 2 DIMM slots (1DPC)
規格 Supports DDR4 288-pin ECC/non-ECC UDIMM
DIMM Size Per DIMM ECC/non-ECC UDIMM: up to 32GB
DIMM Frequency

ECC/non-ECC UDIMM: max. 3200*MHz

*Up to DDR4 2666MHz when installing 10th Gen Intel® Pentium® Series Processors
電壓 1.2V
 擴充插槽
PCIe x 16

SLOT7: PCIe4.0* x16 [CPU]

*SLOT7 supports PCIe3.0 only when installing 10th Gen Intel® Pentium® Series Processors
 儲存
SATA控制器

Intel® C256 (8 SATA 6Gb/s; RAID 0/1/5/10):

2 OCuLink
OCuLink for U.2 2 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
M.2

1 M-key* (PCIe4.0 x4); support 2280 form factor [CPU]

*M.2 will not function when installing 10th Gen Intel® Pentium® Series Processors
 乙太網路
Additional GbE Controller

Intel® i210: 1 RJ45 (1GbE)

Intel® i219-LM: 1 RJ45 (1GbE)
 管理
整合式基板管理控制器 ASPEED AST2500
智慧型平台頻外管理介面 1 x Realtek RTL8211E for dedicated management GLAN
 顯示
控制器 ASPEED AST2500
視訊隨機存取記憶 DDR4 256MB

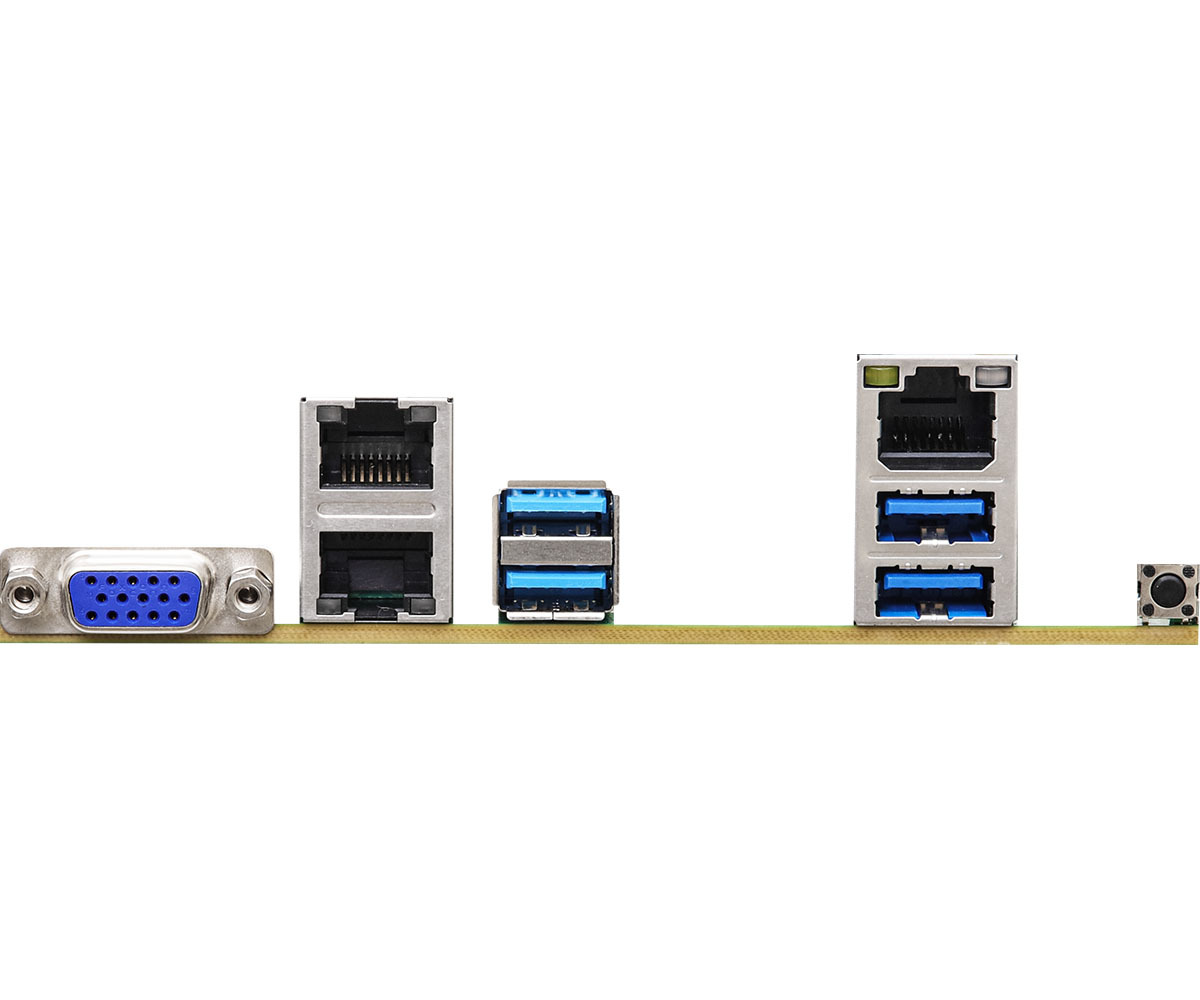

 背板輸出 / 入接口
顯示器接頭 1 DB15
USB 3.2 Gen1 埠 2 Type-A (USB3.2 Gen1)
USB 3.2 Gen2 埠 2 Type-A (USB3.2 Gen2)
RJ-45 網路埠 2 RJ45 (1GbE)
Dedicate LAN 1 dedicated IPMI LAN port
UID 按鈕 / UID LED 1 button w/ LED
 內建接頭
輔助面板接針 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
可信任平台模組接針 1 (13-pin, SPI)
溫度感測接針 1
IPMB 接針 1
VGA 接針 1
風扇接針 3 (4-pin)
其他電源接頭 1 ATX (4-pin) for HDD power when using 12V DC-in power source
USB 3.2 (Gen1) 針狀接頭 1 (19-pin, 2 USB3.2 Gen1)
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
BMC_SMB Header 1
SGPIO Header 1
電源接頭 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 1 (8-pin, ATX 12V) support 12V DC-in
Clear CMOS 1 (contact pads)
 內建 LED
Standby PWR LED 5vsb 1
Fan Fail LED 3
BMC heartbeat LED 1
 系統BIOS
BIOS規格 AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS特點 Plug and Play, ACPI 6.2 compliance wake up events, SMBIOS 3.3, ASRock Rack instant flash
 硬體監控
溫度 CPU, MB, Card side, TR1
風扇 Fan Tachomete, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Multi-Speed Control
電壓 +12V, +5V, +3.3V, CPU Vcore, DRAM,V1.05M,+BAT, 3VSB, 5VSB
 環境
溫度 Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)





記憶體相容列表

類型 速度 記憶體 容量 供應商 模組 型號 單元
DDR4 3200 ECC 32GB Innodisk M4CE-BGS2MC0M-AJ02 K4AAG085WA BCWE Sec
DDR4 3200 non-ECC 32GB Samsung M378A4G43AB2-CWE K4AAG085WA BCWE Sec
DDR4 3200 ECC 16GB Innodisk M4CE-AGS1MC0M-CJ02 K4A8G085WC BCWE Sec
DDR4 3200 ECC 16GB Kingston KSM32ES8/16ME 0IE45D9ZFV Micron
DDR4 2933 ECC 32GB Samsung M391A4G43AB1-CVFQ K4AAG085WA BCVF Sec
DDR4 2666 ECC 32GB Samsung M391A4G43MB1-CTDQ K4AAG085WM BCTD Sec
DDR4 2666 non-ECC 16GB Crucial CT16G4DFD8266.C16FD1 8HD75C9BGT Micron
DDR4 2400 ECC 16GB Crucial CT16G4WFD824A.18FB1 6AB47D9TBH Micron
