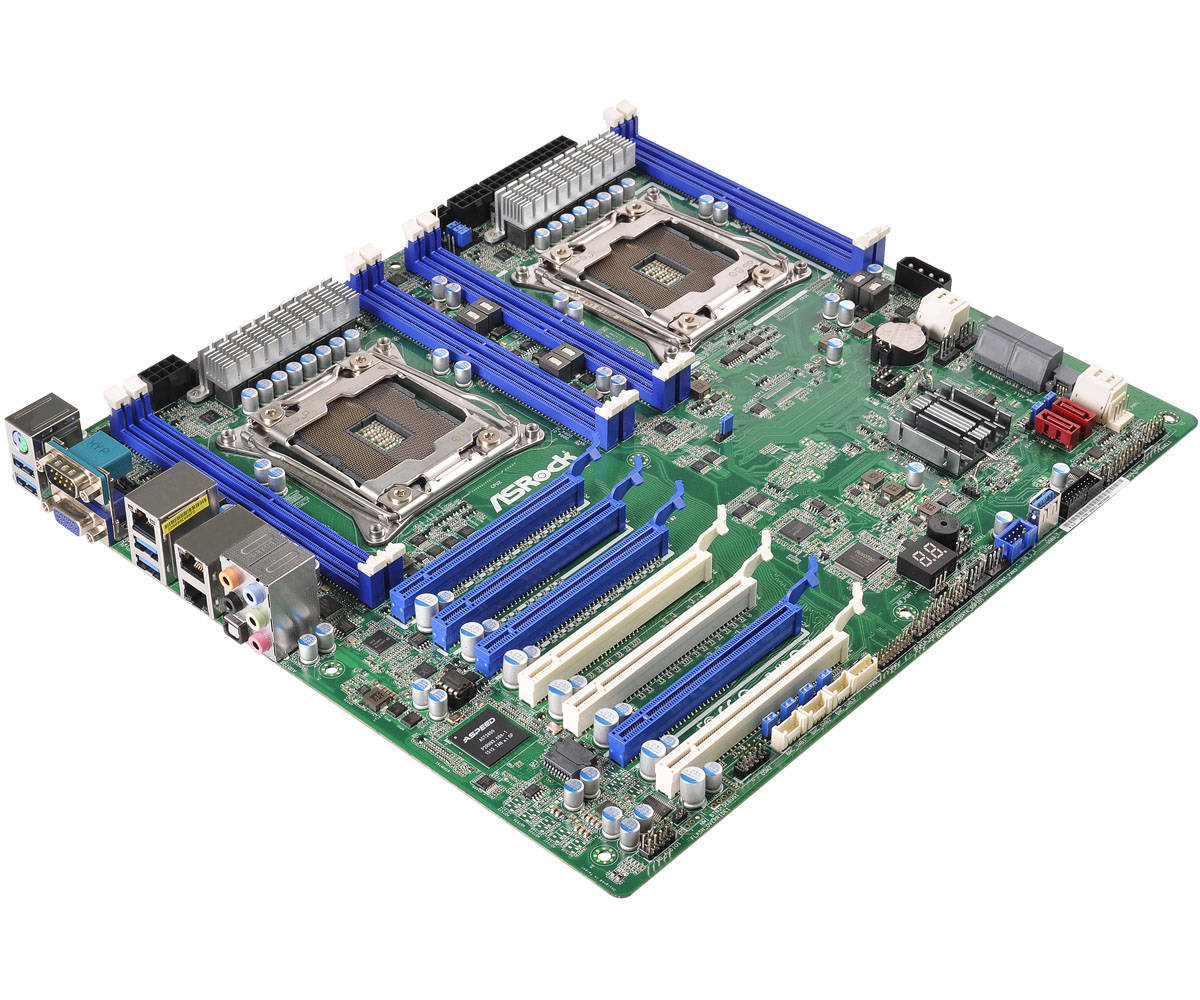

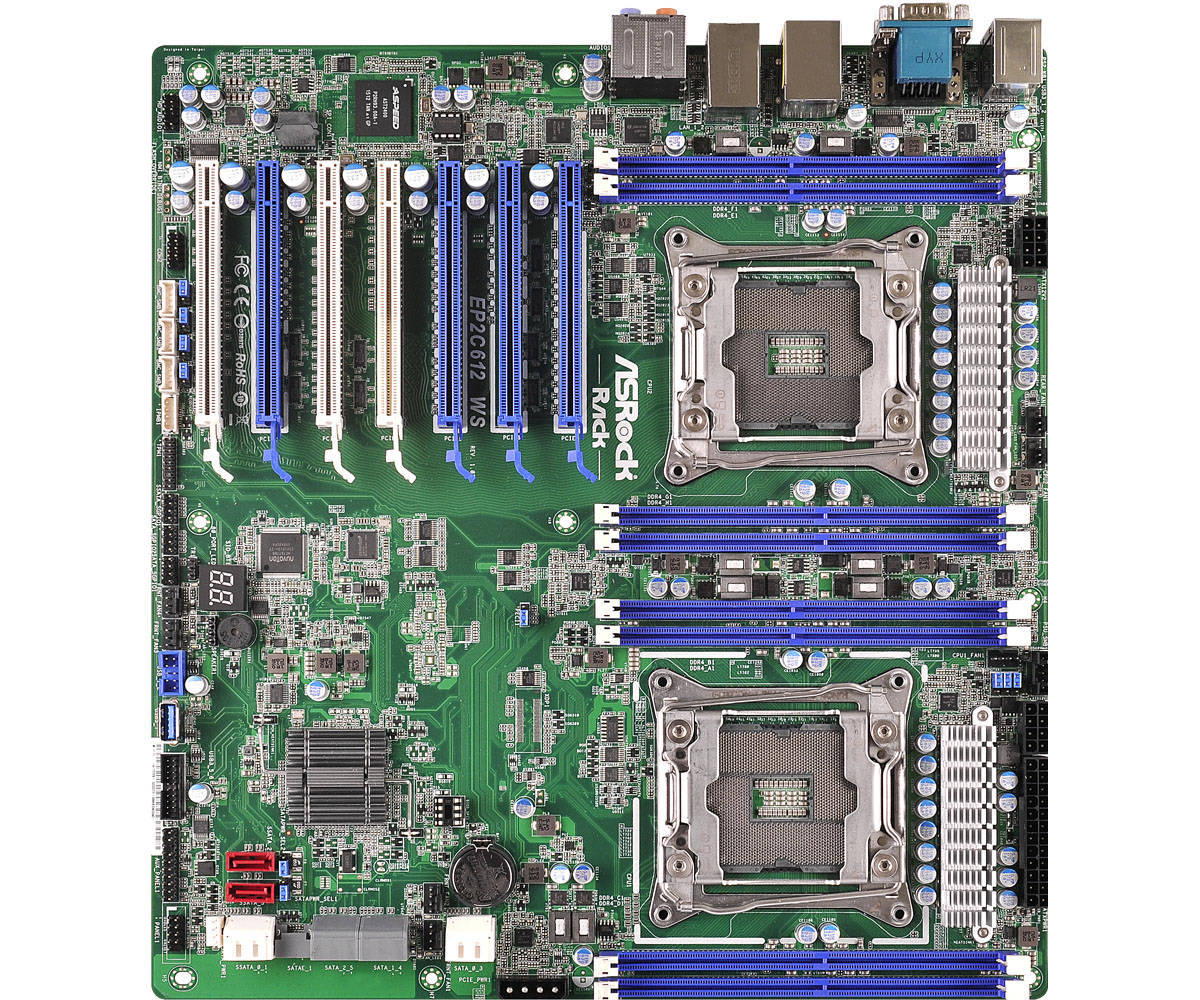

EP2C612 WS

型號EP2C612 WS

Supports 4x PCIe 3.0 x16, 3x PCIe 3.0 x8

Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)

Supports Intel Dual GLAN (2 x Intel i210 )

Supports NVIDIA 4-way SLI & AMD Quad-GPU CrossFireX™ Technology

立即查詢

詳細規格

尺寸規格
規格 - SSI EEB
尺寸 - 12'' x 13'' (305 mm x 330 mm)
 處理器系統
中央處理器 - support Intel® Xeon® processor E5-2600& v3/v4 series
針腳 - Dual Socket LGA 2011 R3
晶片組 - Intel® C612
 記憶體
容量 - 8 DIMM slots
規格

- Quad Channel memory technology

- Support DDR4 2400/2133/1866/1600 RDIMM and LRDIMM


*Only E5-2600 V4 CPUs support DDR4 2400
DIMM Size Per DIMM

- RDIMM: 32GB, 16GB, 8GB, 4GB

- LRDIMM: 64GB, 32GB
電壓 - 1.2V
 擴充插槽
PCIe x 16

- SLOT7: PCIe3.0 x16, auto switch to x8 when SLOT6 is occupied [CPU0]

- SLOT6: PCIe x16 (PCIe3.0 x8) [CPU0]

- SLOT5: PCIe3.0 x16 [CPU0]

- SLOT4: PCIe x16 (PCIe3.0 x8) [CPU1]

- SLOT3: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU1]

- SLOT2: PCIe x16 (PCIe3.0 x8) [CPU0]

- SLOT1: PCIe3.0 x16 [CPU1]


- Supports NVIDIA® Quad SLITM, 4-Way SLITM, 3-Way SLITM and SLITM"

- Supports AMD GPU-Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
 儲存
SATA控制器

- Intel® C612:

10 x SATA3 6Gb/s( 6x SATA3 + 4 x SSATA3, support 2 x SATA DOM, 1 x SATA Express), support RAID 0, 1, 5, 10
 乙太網路
介面 - 1000 /100 /10 Mbps
網路控制器

- 2 x RJ45 by 2 x Intel® i210

- 1 x RJ45 Dedicated IPMI LAN port

- Supports Wake-On-LAN

- Supports Energy Efficient Ethernet 802.3az

- Supports Dual LAN with Teaming function

- Supports PXE

- LAN1 supports NCSI
 管理
整合式基板管理控制器 - ASPEED AST2400
智慧型平台頻外管理介面 - 1 x Realtek RTL8211E for dedicated management GLAN
特點

- Watch Dog

- NMI
 顯示
控制器 - ASPEED AST2400
視訊隨機存取記憶 - DDR3 16MB
 GPU 支援
技術

- Supports NVIDIA® 4-Way SLI™ Technology

- Supports AMD Quad-GPU CrossFireX™ Technology
 音效
編解碼器 - Realtek ALC1150

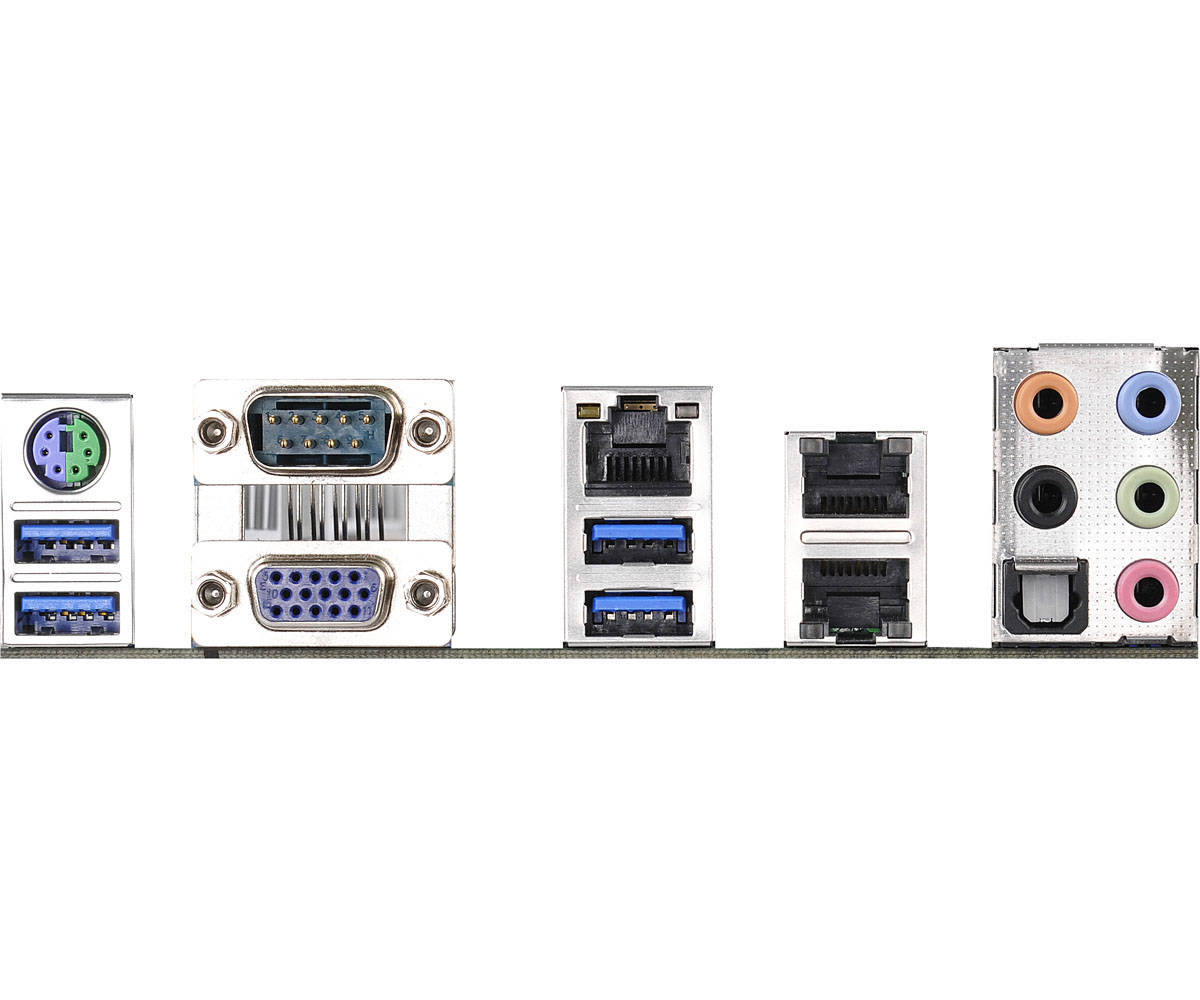

 背板輸出 / 入接口
PS/2 鍵盤/滑鼠 - 1
顯示器接頭 - 1 x D-Sub
USB 3.2 Gen1 埠 - 4
RJ-45 網路埠

- RJ45: 2 + 1 (IPMI)

- LAN Ports with LED (ACT/LINK LED and SPEED LED)
序列連接埠 - 1 (COM1)
音效 - 5 Jack
SPDIF - 1
 內建接頭
輔助面板接針 - 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED)
可信任平台模組接針 - 1
IPMB 接針 - 1
蜂鳴器 - 1
風扇接針 - 2x CPU Fans, 5x system Fans(4-pin)
24針ATX電源連接埠 - 1 (24-pin) + 2 (8-pin)
USB 3.2 (Gen1) 針狀接頭 - 1 ( support 2 USB 3.0)
USB 2.0 針狀接頭 - 1 ( support 2 USB 2.0)
Type A USB 3.2 (Gen1) 埠 - 1
前置面板 - 1
4 pin 5V box 連接頭 - 1
 系統BIOS
BIOS規格 - 128Mb AMI UEFI Legal BIOS
BIOS特點

- Plug and Play (PnP)

- ACPI 2.0 Compliance Wake Up Events

- SMBIOS 2.8.0 Support

- ASRock Rack Instant Flash
 硬體監控
溫度

- CPU Temperature Sensing

- System Temperature Sensing

- System Inlet Temperature Sensing

- Card Side Temperature Sensing
風扇

- CPU/Rear/Front Fan Tachometer

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

- CPU/Rear/Front Fan Multi-Speed Control
電壓 - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
 作業系統支援
作業系統

Microsoft® Windows®

- Windows® 7 ( 32 / 64 bit)

- Windows® 8 ( 32 / 64 bit)

- Windows® 8.1 ( 32 / 64 bit)

- Windows® 10 (64 bit)

Server:

Microsoft® Windows®

- Server 2008 R2 SP1 (64 bit)

- Server 2012 (64 bit)

- Server 2012 R2 (64 bit)

- Server 2016 (64 bit)

Linux

- RedHat Enterprise Linux Server 6.5 (32 / 64 bit)

- CentOS 5.10 / 6.5 (32 / 64 bit)

- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)

- FreeBSD 9.2 (32 / 64 bit)

- Fedora core 19 (64 bit)

- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)

Virtual

- VMWare® ESXi 5.5

*Please refer to our website for the latest OS support list.
 環境
溫度 Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C





處理器相容列表

腳位 系列 編號 核心 頻率 BCLK 快取 功耗 支援的BIOS
2011-3 Xeon E5-2699 v4(B0) Broadwell-EP 2.2GHz BLK 100MHz 55MB 145W P2.10
2011-3 Xeon E5-2699 v3(C1) Haswell-EP 2.3GHz BLK 100MHz 45MB 145W All
2011-3 Xeon E5-2699 v3(C0) Haswell-EP 2.3GHz BLK 100MHz 45MB 145W All
2011-3 Xeon E5-2698 v4(B0) Broadwell-EP 2.2GHz BLK 100MHz 50MB 135W P2.10
2011-3 Xeon E5-2698 v3(C1) Haswell-EP 2.3GHz BLK 100MHz 40MB 135W All
2011-3 Xeon E5-2698 v3(C0) Haswell-EP 2.3GHz BLK 100MHz 40MB 135W All
2011-3 Xeon E5-2697A v4(B0) Broadwell-EP 2.6GHz BLK 100MHz 40MB 145W P2.10
2011-3 Xeon E5-2697 v4(B0) Broadwell-EP 2.3GHz BLK 100MHz 45MB 145W P2.10
2011-3 Xeon E5-2697 v3(C1) Haswell-EP 2.6GHz BLK 100MHz 35MB 145W All
2011-3 Xeon E5-2697 v3(C0) Haswell-EP 2.6GHz BLK 100MHz 35MB 145W All
2011-3 Xeon E5-2695 v4(B0) Broadwell-EP 2.1GHz BLK 100MHz 45MB 120W P2.10
2011-3 Xeon E5-2695 v3(C1) Haswell-EP 2.3GHz BLK 100MHz 35MB 120W All
2011-3 Xeon E5-2695 v3(C0) Haswell-EP 2.3GHz BLK 100MHz 35MB 120W All
2011-3 Xeon E5-2690 v4(M0) Broadwell-EP 2.6GHz BLK 100MHz 35MB 135W P2.10
2011-3 Xeon E5-2690 v3(M1) Haswell-EP 2.6GHz BLK 100MHz 30MB 135W All
2011-3 Xeon E5-2690 v3(M0) Haswell-EP 2.6GHz BLK 100MHz 30MB 135W All
2011-3 Xeon E5-2689 v4(B0) Broadwell-EP 3.1GHz BLK 100MHz 25MB 165W P2.10
2011-3 Xeon E5-2687W v4(M0) Broadwell-EP 3.0GHz BLK 100MHz 30MB 160W P2.10
2011-3 Xeon E5-2687W v3(M1) Haswell-EP 3.1GHz BLK 100MHz 25MB 160W All
2011-3 Xeon E5-2687W v3(M0) Haswell-EP 3.1GHz BLK 100MHz 25MB 160W All
2011-3 Xeon E5-2685 v3(M1) Haswell-EP 2.6GHz BLK 100MHz 30MB 120W All
2011-3 Xeon E5-2683 v4(B0) Broadwell-EP 2.1GHz BLK 100MHz 40MB 120W P2.10
2011-3 Xeon E5-2683 v3(C1) Haswell-EP 2.0GHz BLK 100MHz 35MB 120W All
2011-3 Xeon E5-2683 v3(C0) Haswell-EP 2.0GHz BLK 100MHz 35MB 120W All
2011-3 Xeon E5-2680 v4(M0) Broadwell-EP 2.4GHz BLK 100MHz 35MB 120W P2.10
2011-3 Xeon E5-2680 v3(M1) Haswell-EP 2.5GHz BLK 100MHz 30MB 120W All
2011-3 Xeon E5-2680 v3(M0) Haswell-EP 2.5GHz BLK 100MHz 30MB 120W All
2011-3 Xeon E5-2670 v3(M1) Haswell-EP 2.3GHz BLK 100MHz 30MB 120W All
2011-3 Xeon E5-2670 v3(M0) Haswell-EP 2.3GHz BLK 100MHz 30MB 120W All
2011-3 Xeon E5-2669 v3(M1) Haswell-EP 2.3GHz BLK 100MHz 30MB 120W All
2011-3 Xeon E5-2669 v3(M0) Haswell-EP 2.3GHz BLK 100MHz 30MB 120W All
2011-3 Xeon E5-2667 v3(R2) Haswell-EP 3.2GHz BLK 100MHz 20MB 135W All
2011-3 Xeon E5-2660 v4(M0) Broadwell-EP 2.0GHz BLK 100MHz 35MB 105W P2.10
2011-3 Xeon E5-2660 v3(M1) Haswell-EP 2.6GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2660 v3(M0) Haswell-EP 2.6GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2652 v3(M1) Haswell-EP 2.3GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2652 v3(M0) Haswell-EP 2.3GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2650 v4(M0) Broadwell-EP 2.2GHz BLK 100MHz 30MB 105W P2.10
2011-3 Xeon E5-2650 v3(M1) Haswell-EP 2.3GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2650 v3(M0) Haswell-EP 2.3GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2650L v4(M0) Broadwell-EP 1.7GHz BLK 100MHz 35MB 65W P2.10
2011-3 Xeon E5-2650L v3(M1) Haswell-EP 1.8GHz BLK 100MHz 30MB 65W All
2011-3 Xeon E5-2650L v3(M0) Haswell-EP 1.8GHz BLK 100MHz 30MB 65W All
2011-3 Xeon E5-2649 v3(M1) Haswell-EP 2.3GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2649 v3(M0) Haswell-EP 2.3GHz BLK 100MHz 25MB 105W All
2011-3 Xeon E5-2643 v3(R2) Haswell-EP 3.4GHz BLK 100MHz 20MB 135W All
2011-3 Xeon E5-2640 v3(R2) Haswell-EP 2.6GHz BLK 100MHz 20MB 90W All
2011-3 Xeon E5-2637 v3(R2) Haswell-EP 3.5GHz BLK 100MHz 15MB 135W All
2011-3 Xeon E5-2630 v3(R2) Haswell-EP 2.4GHz BLK 100MHz 20MB 85W All
2011-3 Xeon E5-2630L v3(R2) Haswell-EP 1.8GHz BLK 100MHz 20MB 55W All
2011-3 Xeon E5-2629 v3(M1) Haswell-EP 2.4GHz BLK 100MHz 20MB 85W All
2011-3 Xeon E5-2629 v3(M0) Haswell-EP 2.4GHz BLK 100MHz 20MB 85W All
2011-3 Xeon E5-2623 v3(R2) Haswell-EP 3.0GHz BLK 100MHz 10MB 105W All
2011-3 Xeon E5-2622 v3(R2) Haswell-EP 2.4GHz BLK 100MHz 20MB 85W All
2011-3 Xeon E5-2620 v3(R2) Haswell-EP 2.4GHz BLK 100MHz 15MB 85W All
2011-3 Xeon E5-2609 v3(M1) Haswell-EP 1.9GHz BLK 100MHz 15MB 85W All
2011-3 Xeon E5-2609 v3(M0) Haswell-EP 1.9GHz BLK 100MHz 15MB 85W All
2011-3 Xeon E5-2603 v3(R2) Haswell-EP 1.6GHz BLK 100MHz 15MB 85W All
2011-3 Xeon E5-1680 v3(R2) Haswell-EP 3.2GHz BLK 100MHz 20MB 140W All
2011-3 Xeon E5-1650 v3(R2) Haswell-EP 3.5GHz BLK 100MHz 15MB 140W All
2011-3 Xeon E5-1630 v3(R2) Haswell-EP 3.7GHz BLK 100MHz 10MB 140W All
2011-3 Xeon E5-1620 v3(R2) Haswell-EP 3.5GHz BLK 100MHz 10MB 140W All





記憶體相容列表

類型 速度 記憶體 容量 供應商 模組 型號 單元
DDR4 2666 LRDIMM 64GB Kingston KSM26LQ4/64HAI H5ANAG4NAMR SK Hynix
DDR4 2400 RDIMM 8GB Hynix HMA81GR7AFR8N-UH H5AN8G8NAFR Hynix
DDR4 2400 RDIMM 8GB Kingston KVR24R17S8/8MA 6FA77D9SRJ Micron
DDR4 2400 RDIMM 8GB Samsung M393A1G040EB1 - CRC K4A4G04 5WE BCRC Sec
DDR4 2400 RDIMM 32GB Crucial CT32G4RFD424A.36FB1 5YB47D9TBJ Micron
DDR4 2400 RDIMM 16GB Hynix HMA82GR7AFR4N-UH H5AN8G4NAFR Hynix
DDR4 2133 RDIMM 8GB Crucial CT8G4RFS4213 4GA12D9RGV Micron
DDR4 2133 RDIMM 8GB Samsung M393A1G40DB0-CPB 419BCPBK4A4G045WD Sec
DDR4 2133 RDIMM 8GB Team T4D6R10S62000 K4A4G045WD Sec
DDR4 2133 RDIMM 4GB A-DATA AD4R2133W4G15-BHYM H5AN4GBNMFR skhynix
DDR4 2133 RDIMM 4GB Crucial CT4G4RFS8213 4IA77D9RGQ Micron
DDR4 2133 LRDIMM 32GB Samsung M386A4G40DM0-CPB0Q K4A8G045WD-MCPB Sec
DDR4 2133 LRDIMM 32GB SET TECH D4-32GBERLR4RX4-2133S-0 K4A8G045WD-HCPB Sec
DDR4 2133 RDIMM 16GB Kingston KVR21R15D4/16 H5AN4G8NAFR Hynix
DDR4 2133 RDIMM 16GB Samsung M393A2G40DB0-CPB 419BCPBK4A4G045WD Sec
DDR4 2133 RDIMM 16GB Team T4E1R10S62000 K4A4G045WD Sec
