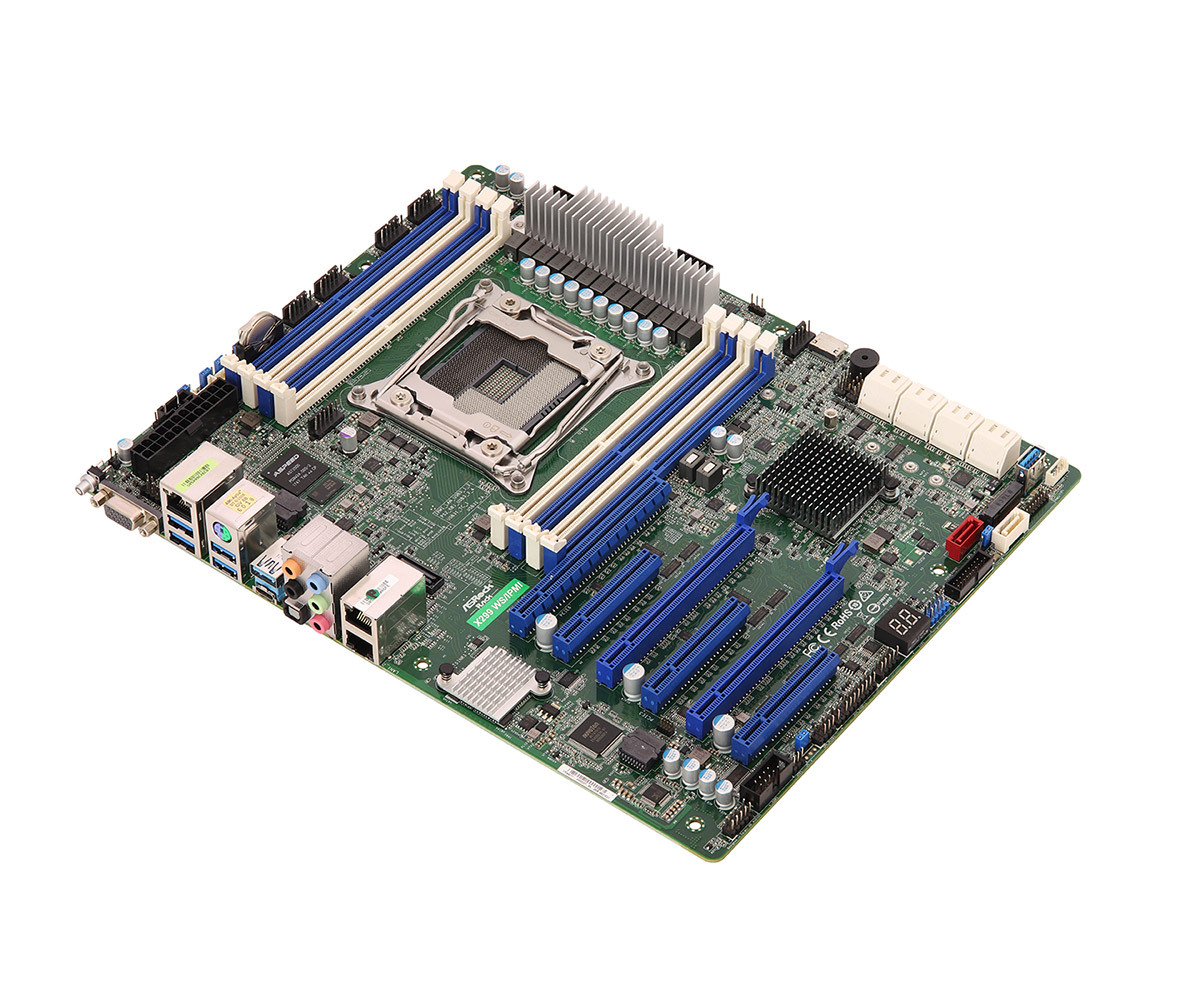

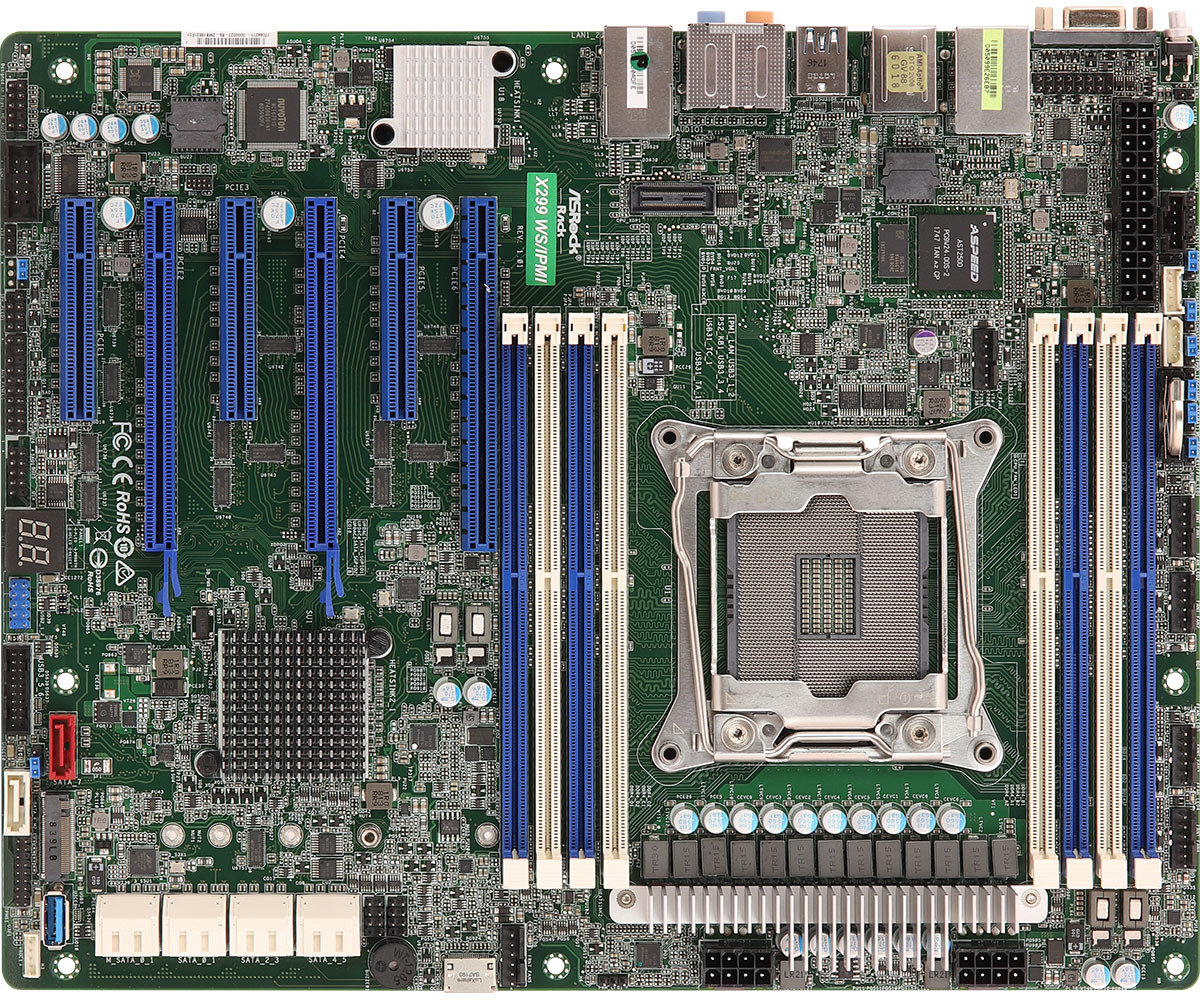

X299 WS/IPMI

型號X299 WS/IPMI

Support Intel Core™ X-Series Processor Family for the LGA 2066 Socket)

Support four channels DDR4 2666 U DIMM(might up to 4400+ w/ OC)

Support 1x OCulink for U.2

立即查詢

詳細規格

尺寸規格
規格 - ATX
尺寸 - 12.0-in x 9.6-in (305 mm x 244 mm)
 處理器系統
中央處理器 - Intel® Core™ X-Series Processor Family
針腳 - Single Socket R4(LGA 2066)
晶片組 - Intel® X299
 記憶體
容量

- 8 x 288-pin DDR4 DIMM slots

- Support up to 128GB U DIMM
規格 - Four Channel DDR4 memory technology
DIMM Size Per DIMM - NON-ECC U DIMM: 4GB, 8GB, 16GB
DIMM Frequency - NON-ECC U DIMM: 2666(1DIMM per channel)/ 2400(2DIMM per channel)/2133/1866/1600MHz
電壓 - 1.2V
 擴充插槽
PCIe x 16

- SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT5 is occupied

- SLOT4: PCIe3.0 x16, auto switch to x8 when SLOT3 is occupied
PCIe x 8

- SLOT5: PCIe3.0 x8

- SLOT3: PCIe3.0 x8

- SLOT2: PCIe3.0 x8
PCIe x 4 - SLOT1: PCIe3.0 x4
M.2 - 1 (2230/2242/2260/2280/22110, support PCIE(x4)/SATA 3)
 儲存
SATA控制器 - 8 x SATA3 6Gb/s (SATA 0-6 SATA Conn, SATA7 by SATA DOM/M.2)
額外的存儲控制器 - 88SE9172: 2x SATA3 6Gb/s (mSATA0-1 by SATA conn)
OCuLink for U.2 - 1 (from PCH)
 乙太網路
介面 - 1000 /100 /10 Mbps
網路控制器

- 2 x RJ45 GLAN by Intel® i350

- Supports Wake-On-LAN

- Supports Energy Efficient Ethernet 802.3az

- Supports Dual LAN with Teaming function

- Supports PXE

- LAN1 Supports NCSI
 管理
整合式基板管理控制器 - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support
智慧型平台頻外管理介面 - 1 x Realtek RTL8211E for dedicated management GLAN
特點 - NMI
 顯示
控制器 - ASPEED AST2500
視訊隨機存取記憶 - DDR4 4GB
 GPU 支援
技術

- Supports NVIDIA® 4-Way SLI™ Technology

- Supports AMD Quad-GPU CrossFireX™ Technology
 音效
編解碼器 - Realtek ALC892

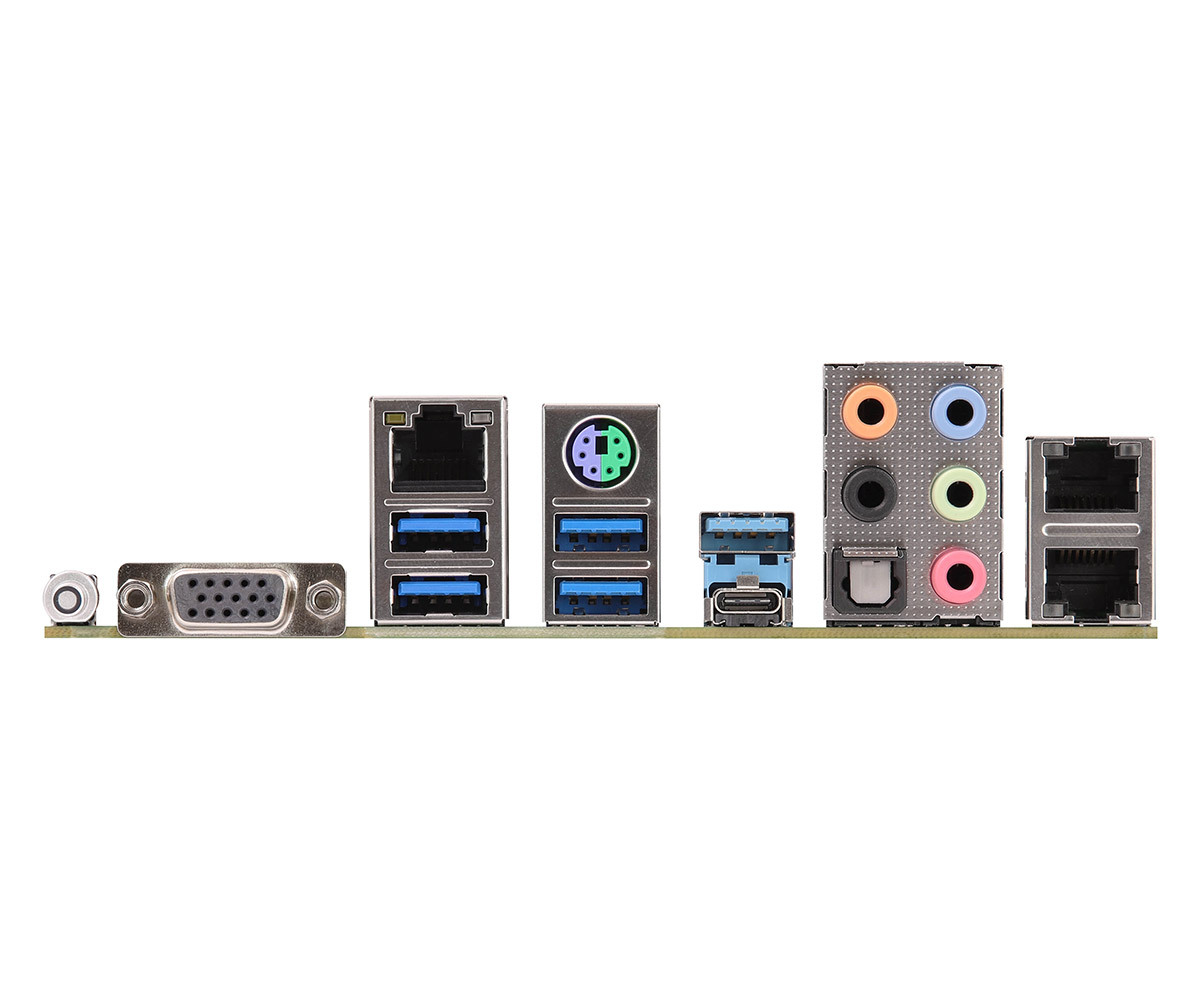

 背板輸出 / 入接口
PS/2 鍵盤/滑鼠 - 1
顯示器接頭 - N/A
USB 3.2 Gen1 埠 - 4
USB 3.2 Gen2 埠 - 2 (1 type A, 1 type C)
RJ-45 網路埠

- 2 x RJ45 Gigabit Ethernet LAN ports

- 1 x RJ45 Dedicated IPMI LAN port

- LAN Ports with LED (ACT/LINK LED and SPEED LED)
音效 - 1(5+1 jack)
 內建接頭
COM 埠接針 - 1
SATA DOM - 1
輔助面板接針 - 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TR1接針 - 1
可信任平台模組接針 - 1
IPMB 接針 - 1
VGA 接針 - 1
蜂鳴器 - 1
NVME - 1 (Oculink from PCH)
風扇接針 - 6 x 6-pin Fans (1CPU/5 system)
24針ATX電源連接埠 - 1x (24-pin) + 1x (8-pin) + 1x (8-pin)
USB 3.2 (Gen1) 針狀接頭 - 1 ( supports 2 USB3.0 ports)
USB 2.0 針狀接頭 - 1 ( supports 2 USB2.0 ports)
Type A USB 3.2 (Gen1) 埠 - 1
PWR SMB Header - 1
NMI 按鈕 - 1
前置面板 - 1
前置面板 - 1
BMC_SMB Header - 1
SGPIO Header - 2
Clear CMOS - 1 (header and short pin)
 內建 LED
Port 80 LED - 1
Fan Fail LED - 1 (Fan Fail LED only )
 系統BIOS
BIOS規格 - 128Mb AMI UEFI Legal BIOS
BIOS特點

- Plug and Play (PnP)

- ACPI 2.0 Compliance Wake Up Events

- SMBIOS 2.8.0 Support

- ASRock Rack Instant Flash
 硬體監控
溫度

- CPU Temperature Sensing

- System Temperature Sensing

- Card side Temperature Sensing

- System TR Temperature Sensing
風扇

- CPU/Front Fan Tachometer

- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)

- CPU/Front Fan Multi-Speed Control
電壓 - Voltage Monitoring: Vcore, VCCSA, VCCIO, VCCMAB, VCCMCD, 3v, 5v, 12v, 1.05V_ PCH, 1.05V_PCH_PHY, +BAT, 3VSB, 5VSB, 5V_Dual, 5V_ Dual2
 作業系統支援
作業系統

Microsoft® Windows®

- Windows® 10 (64 bit)
 環境
溫度 Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C





 處理器相容列表

2066 Core i9 I9-9980XE(M0) Skylake-X Refresh 3.0GHz 24.75MB P1.40
2066 Core i9 I9-9960X(M0) Skylake-X Refresh 3.1GHz 22MB P1.40
2066 Core i9 I9-9940X(M0) Skylake-X Refresh 3.3GHz 19.25MB P1.40
2066 Core i9 I9-9920X(M0) Skylake-X Refresh 3.5GHz 19.25MB P1.40
2066 Core i9 I9-9900X(M0) Skylake-X Refresh 3.5GHz 19.25MB P1.40
2066 Core i9 I9-9820X(M0) Skylake-X Refresh 3.3GHz 16.5MB P1.40
2066 Core i9 I9-7980XE(M0) Skylake-X 2.6GHz 24.75MB All
2066 Core i9 I9-7960X(M0) Skylake-X 2.8GHz 22MB All
2066 Core i9 I9-7940X(M0) Skylake-X 3.1GHz 19.25MB All
2066 Core i9 I9-7920X(M0) Skylake-X 2.9GHz 16.5MB All
2066 Core i9 i9-7900X(U0) Skylake-X 3.3GHz 13.75MB All
2066 Core i9 I9-10980XE(L1) Cascade Lake-X 3.00 GHz 24.75MB P1.30
2066 Core i9 I9-10940X(L1) Cascade Lake-X 3.30 GHz 19.25MB P1.30
2066 Core i9 I9-10920X(L1) Cascade Lake-X 3.50 GHz 19.25MB P1.30
2066 Core i9 I9-10900X(L1) Cascade Lake-X 3.70 GHz 19.25MB P1.30
2066 Core i7 i7-7820X(U0) Skylake-X 3.6GHz 11MB





記憶體相容列表

類型 速度 記憶體 容量 供應商 模組 型號 單元
DDR4 3200 non-ECC 8GB Kingston KVR32N22S8/8 9JJ45 D9WSM Micron
DDR4 3200 non-ECC 16GB Crucial CT16G4DFD832A.16FE1 9LE75D9WFL Micron
DDR4 2666 non-ECC 32GB Crucial CT32G4DFD8266.16FB1 9HB45D9XPF Micron
DDR4 2666 non-ECC 16GB Crucial CT16G4DFD8266.C16FD1 8HD75C9BGT Micron
DDR4 2400 ECC 8GB Crucial CT8G4WFD824A.18FB1 6CB77D9TGJ Micron
DDR4 2400 non-ECC 8GB Crucial CT8G4DFS824A.8FB1 5WB47D9TBH Micron
DDR4 2400 ECC 8GB Hynix HMA81GU7AFR8N-UHT0 H5AN8G8NAFR Hynix
DDR4 2400 ECC 16GB Crucial CT16G4WFD824A.18FB1 6AB47D9TBH Micron
DDR4 2400 non-ECC 16GB Crucial CT16G4DFD824A-16FB1 5WB47D9TBH Micron
DDR4 2400 ECC 16GB Hynix HMA82GU7AFR8N-UHT0 H5AN8G8NAFR Hynix
DDR4 2133 non-ECC 4GB A-DATA AD4U2133W4G15-B H5AN4GBNMFR Skhynix
DDR4 2133 non-ECC 4GB Kingston KVR21N15S8/4 H5AN4G8NMFR Hynix
DDR4 2133 ECC 16GB Crucial CT16G4WFD8213.18FB1 6YB75D9TBH Micron
