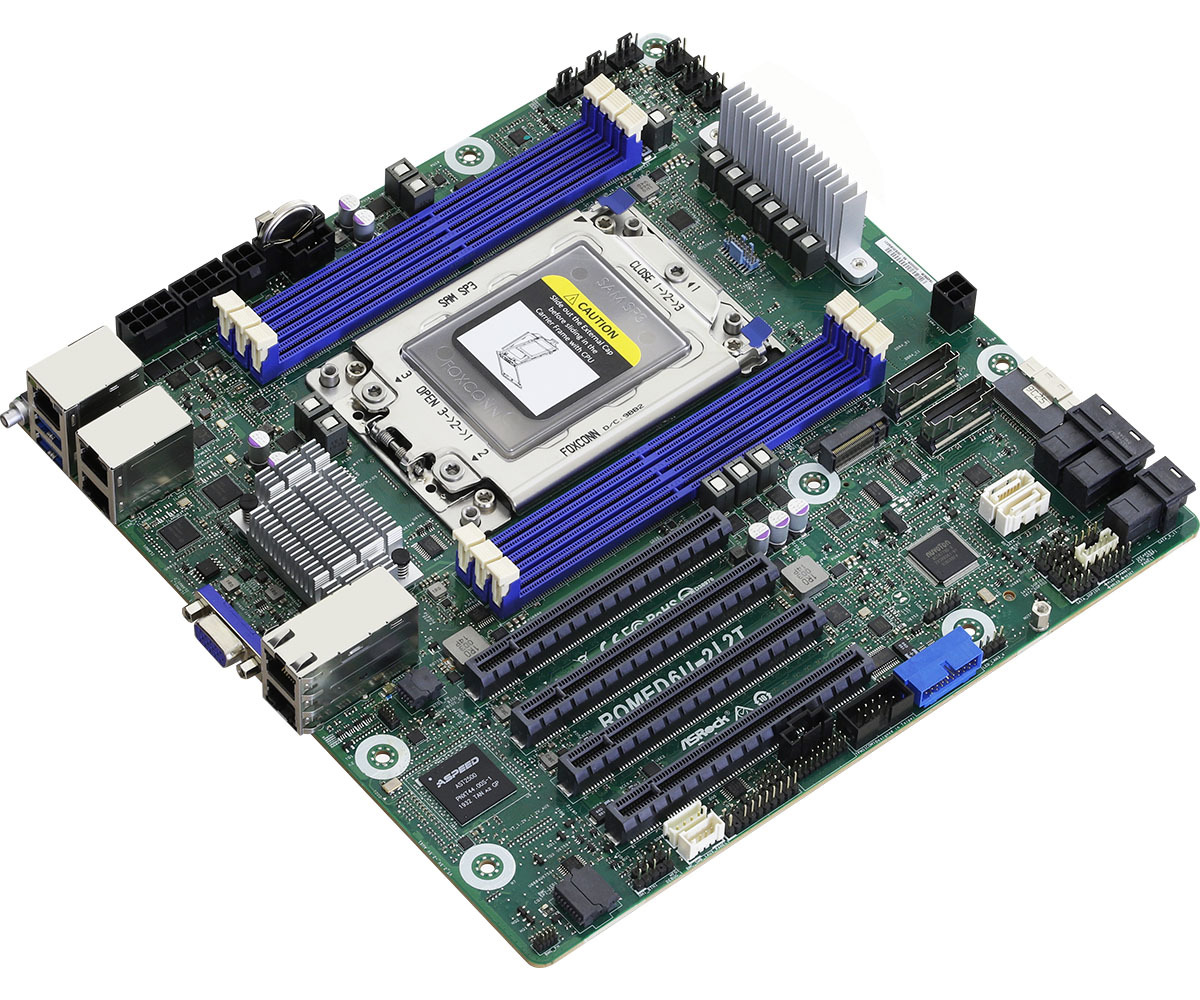

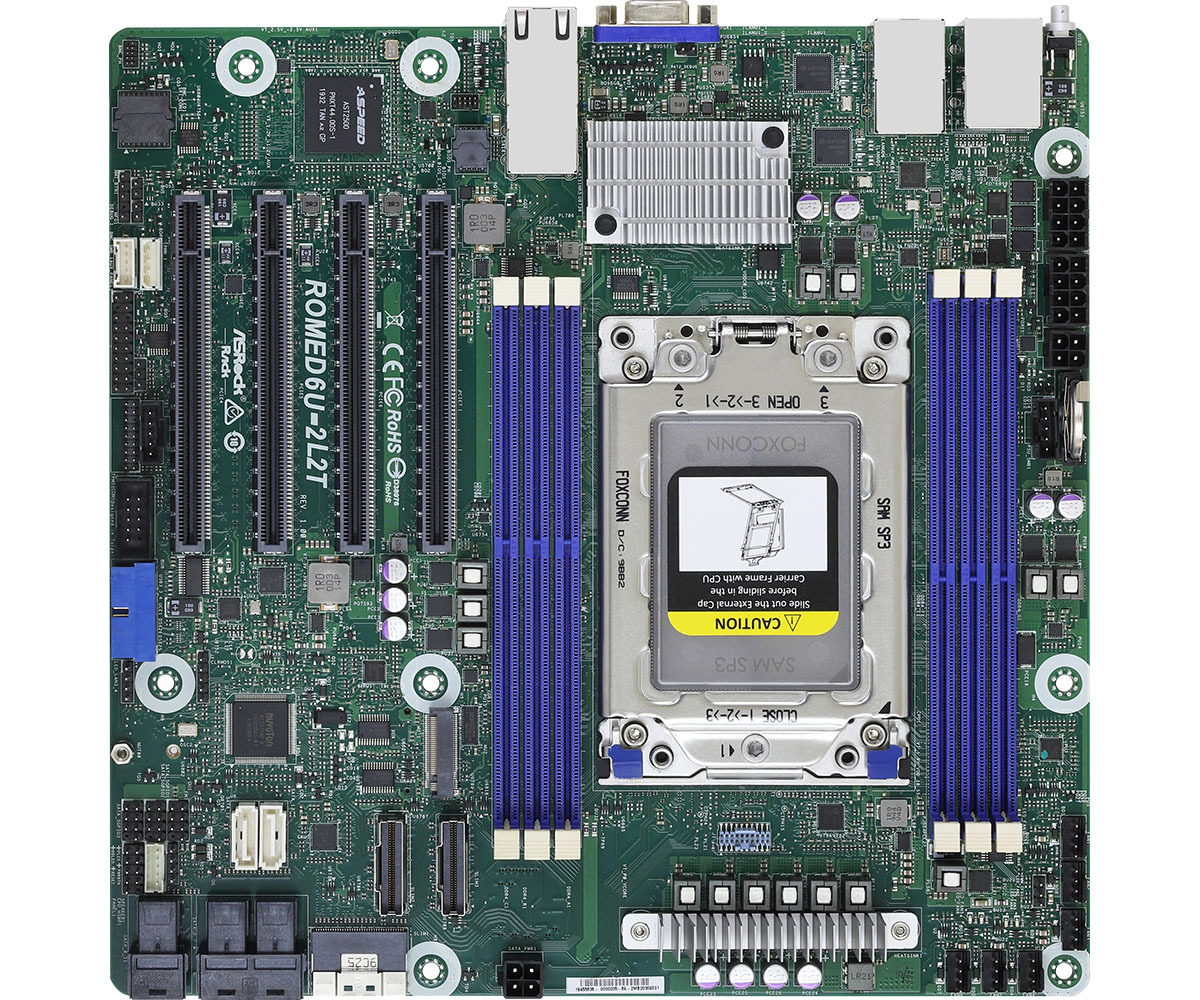

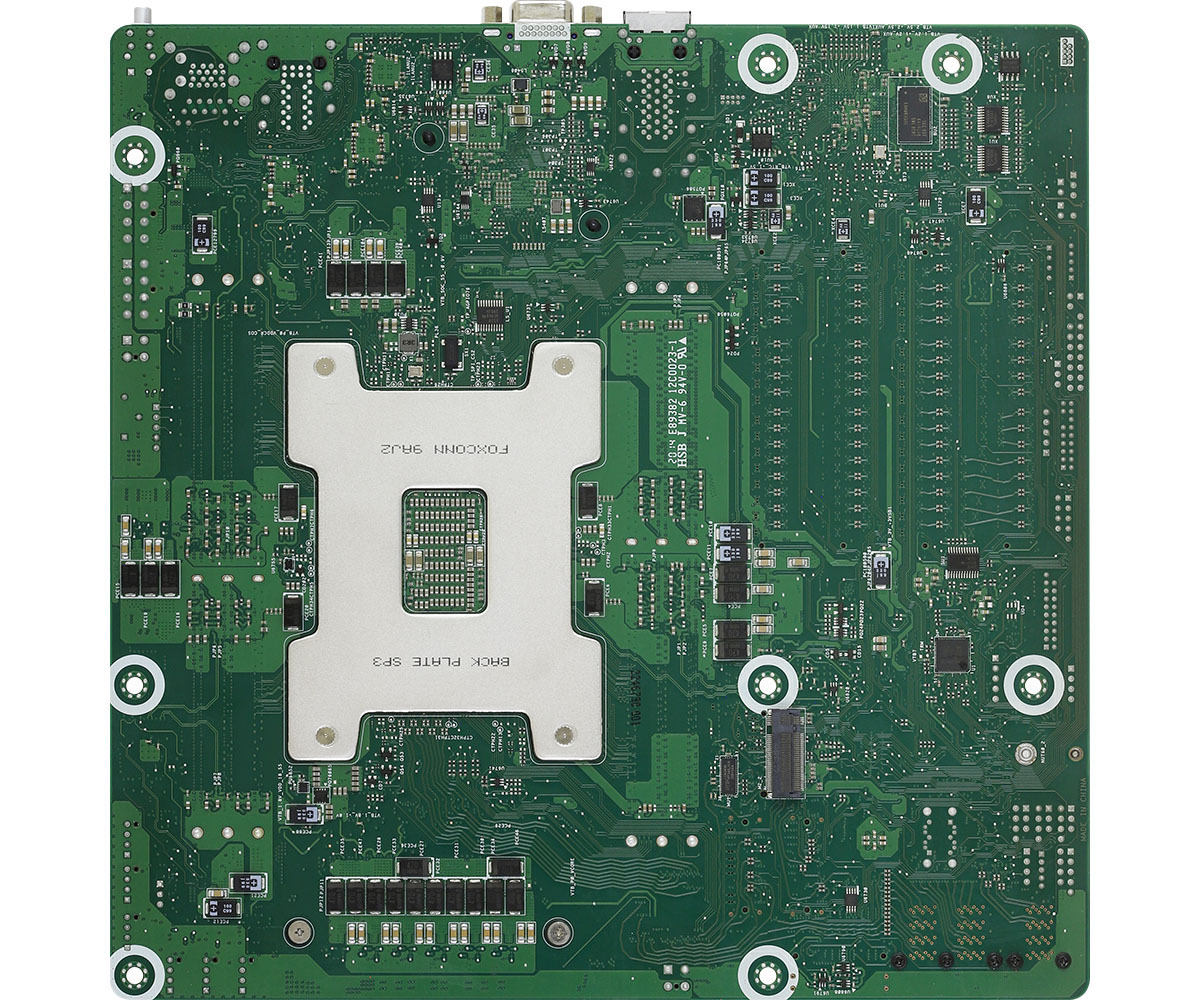

ROMED6U-2L2T

型號ROMED6U-2L2T

6 DIMM slots

4 PCIe4.0 x16 slots

2 RJ45 (10GbE) by Intel X710-AT2

2 RJ45 (1GbE) by Intel i210

2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)

1 Slimline (PCIe4.0x8), 2 Slimline ( PCIe4.0x8 or 8 SATA 6Gb/s)

Supports max. 32 SATA 6Gb/s including 2 M.2

立即查詢

詳細規格

主機板尺寸規格
主機板規格 - micro-ATX
主機板尺寸 - 9.6'' x 9.6'' (24.4 cm x24.4 cm)
處理器系統
中央處理器  - AMD EPYC™ 7002 and 7001 series processor
針腳 - Single Socket SP3 (LGA4094)
晶片組 - System on chip
記憶體
容量 - 6 DIMM slots
規格 - DDR4 288-pin RDIMM, LRDIMM
電壓 - 1.2V
擴充插槽
PCIe 4.0 x 16 - Slot 7: PCIe 4.0 x16
- Slot 6: PCIe 4.0 x16
- Slot 5: PCIe 4.0 x16
- Slot 4: PCIe 4.0 x16
M.2 - 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280 form factor
- 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2260 form factor
儲存
SATA控制器 - 14 SATA 6Gb/s: 12 via mini-SAS HD, 2 via SATA 7-pin
Slimline for U.2 -  1 (PCIe4.0 x8), 2 (PCIe4.0 x8 or 8 SATA 6Gb/s)
SATA控制器
Additional GbE Controller - 1 Intel® X710-AT2: 2 RJ45 (10 GbE)
- 2 Intel® i210: 2 RJ45 (1 GbE)
管理
整合式基板管理控制器 - ASPEED AST2500
智慧型平台頻外管理介面 - 1 x Realtek RTL8211E for dedicated management GLAN
顯示
控制器 - ASPEED AST2500

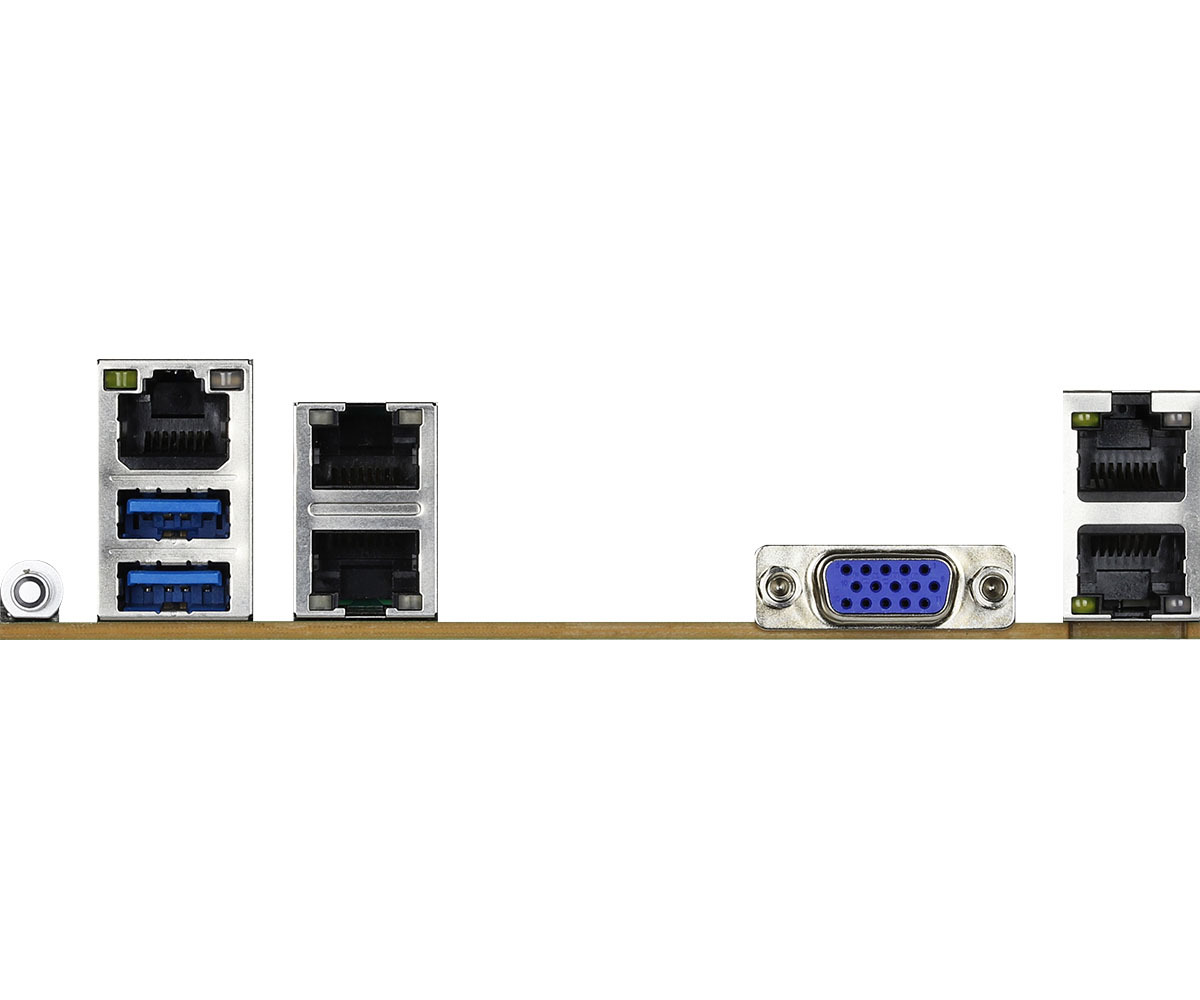

背板輸出/入介面
顯示器接頭 - 1 DB15
USB 3.1 Gen1 埠 - 2
RJ-45 網路埠 - 2 RJ45 (10GbE), 2 RJ45 (1GbE)
Dedicate LAN - 1 RJ45 (Dedicated IPMI)
UID Button/UID LED - 1
前電源連接器
電源連接器 - 1(4-pin) + 2 (8-pin) support 12V DC-IN, 1 (4-pin) for HDD power
內建接頭
COM 埠接針 - 1
前網路 LED 接頭 - LAN3/LAN4 LED header
輔助面板接針 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
可信任平台模組接針 - 1 (17-pin, LPC)
溫度感測接針 - 2
IPMB 接針 - 1
風扇接針 - 6 (4-pin)
NMI Header - 1
System Panel - 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
前疊面板 - 1
BMC_SMB Header - 1
SGPIO Header - 3
CPU HSBP - 1
Clear CMOS - 1 (contact pads)
內建 LED
Standby PWR LED 5vsb - 1
Fan Fail LED - 6
系統BIOS
BIOS規格 - 32MB AMI UEFI Legal BIOS
硬體監控
溫度 - CPU/Car side / MB_A/ MB_B / DDR temperature sensing
風扇 - Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
電壓 - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3v/5v/12v, +BAT, 3VSB, 5VSB,
環境
溫度 - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C







處理器相容列表

腳位 系列 型號 核心 頻率 快取 功耗
SP3 EPYC 7002 7502(100-000000054) 2.50GHz   180W All
SP3 EPYC 7002 7702(100-000000037) 3.20GHz   200W All
SP3 EPYC 7002 7742(100-000000053) 3.20GHz   225W All
SP3 EPYC 7002 7542(100-000000075) 3.20GHz   225W All
SP3 EPYC 7002 7352(100-000000077) 3.20GHz   155W All
SP3 EPYC 7002 7552(100-000000076) 3.20GHz   200W All
SP3 EPYC 7002 7702P(100-000000047) 3.20GHz   200W All
SP3 EPYC 7002 7282(100-000000078) 2.80GHz   120W All
SP3 EPYC 7002 7452(100-000000057) 3.20GHz   155W All
SP3 EPYC 7002 7502P(100-000000045) 3.20GHz   180W All
SP3 EPYC 7002 7662(100-000000137) 2.00GHz   225W All
SP3 EPYC 7002 7232P(100-000000081) 3.1GHz   120W All
SP3 EPYC 7002 7272(100-000000079) 2.9GHz   120W All
SP3 EPYC 7002 7H12(100-000000055) 2.60 GHz   280W All
SP3 EPYC 7002 7F72(100-000000141) 3.20 GHz   240W All
SP3 EPYC 7002 7302P(100-000000049) 3.20GHz   155W All
SP3 EPYC 7002 7F32(100-000000139) 3.70 GHz   180W All
SP3 EPYC 7002 7532(100-000000136) 2.40GHz   200W All
SP3 EPYC 7002 7402P(100-000000048) 2.80GHz   180W All
SP3 EPYC 7002 7302(100-000000043) 3.00 GHz   155W All
SP3 EPYC 7002 7402(100-000000046) 2.80GHz   180W All
SP3 EPYC 7002 7642(100-000000074) 2.30GHz   225W All
SP3 EPYC 7002 7252(100-000000080) 3.10GHz   120W All
SP3 EPYC 7002 7F52(100-000000140) 3.50 GHz   240W All





記憶體相容列表

類型 速度 記憶體 容量 供應商 模組 型號 單元
DDR4 3200 RDIMM 64GB Micron MTA36ASF8G72PZ-3G2E1VI OBE45D9XPC Micron
DDR4 3200 RDIMM 32GB Crucial CT32G4RFD432A.36FE2 9CE75D9WFK Micron
DDR4 2933 RDIMM 64GB Micron MTA36ASF8G72PZ-2G9B2TI 9YB47D9XPD Micron
DDR4 2933 LRDIMM 64GB Samsung M386A8K40CM2-CVFCO 034 K4AAG045WC MCVF Sec
DDR4 2666 RDIMM 32GB Crucial CT32G4RFD4266-2G6H1.001 7LH75D9VHM Micron
