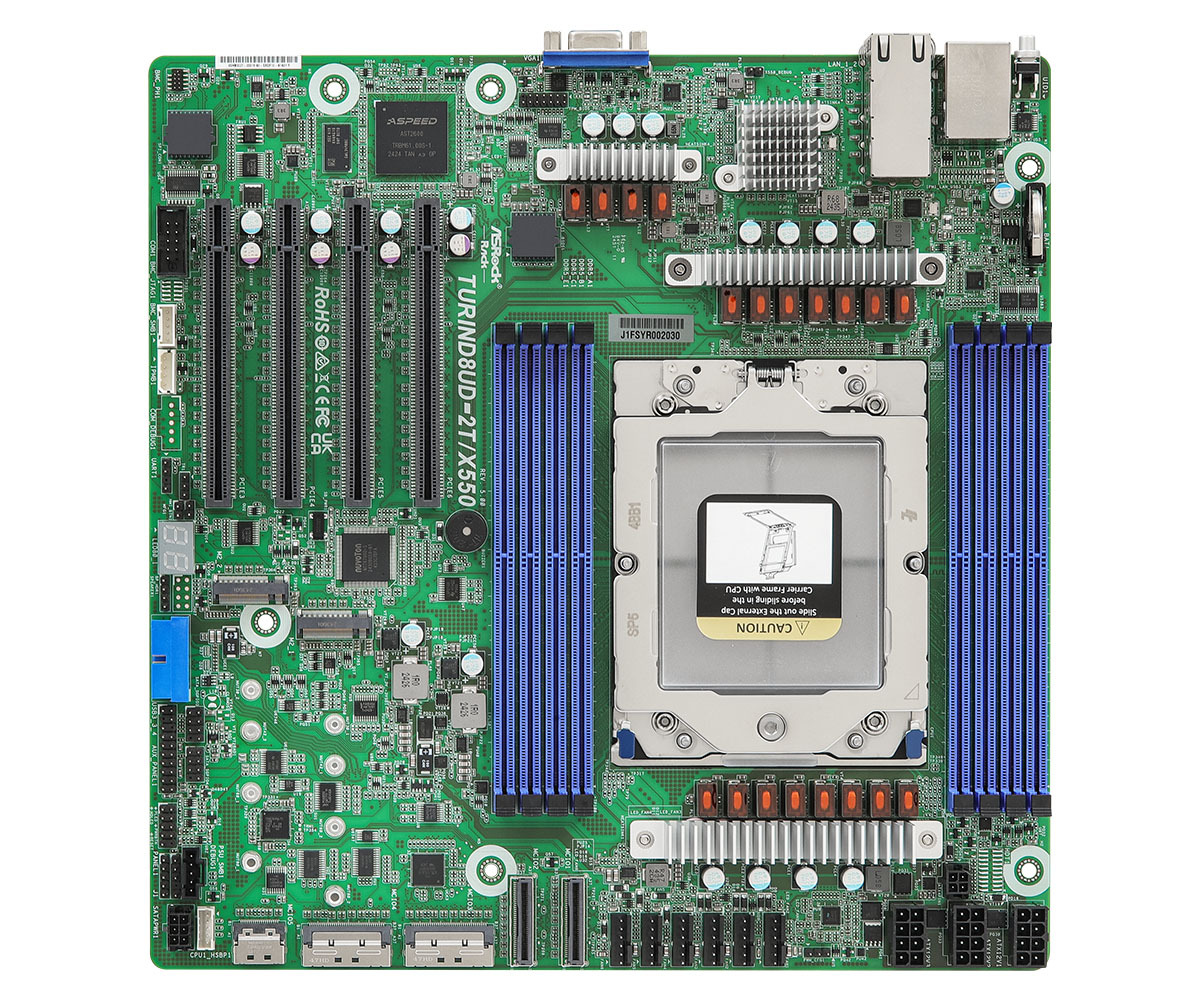

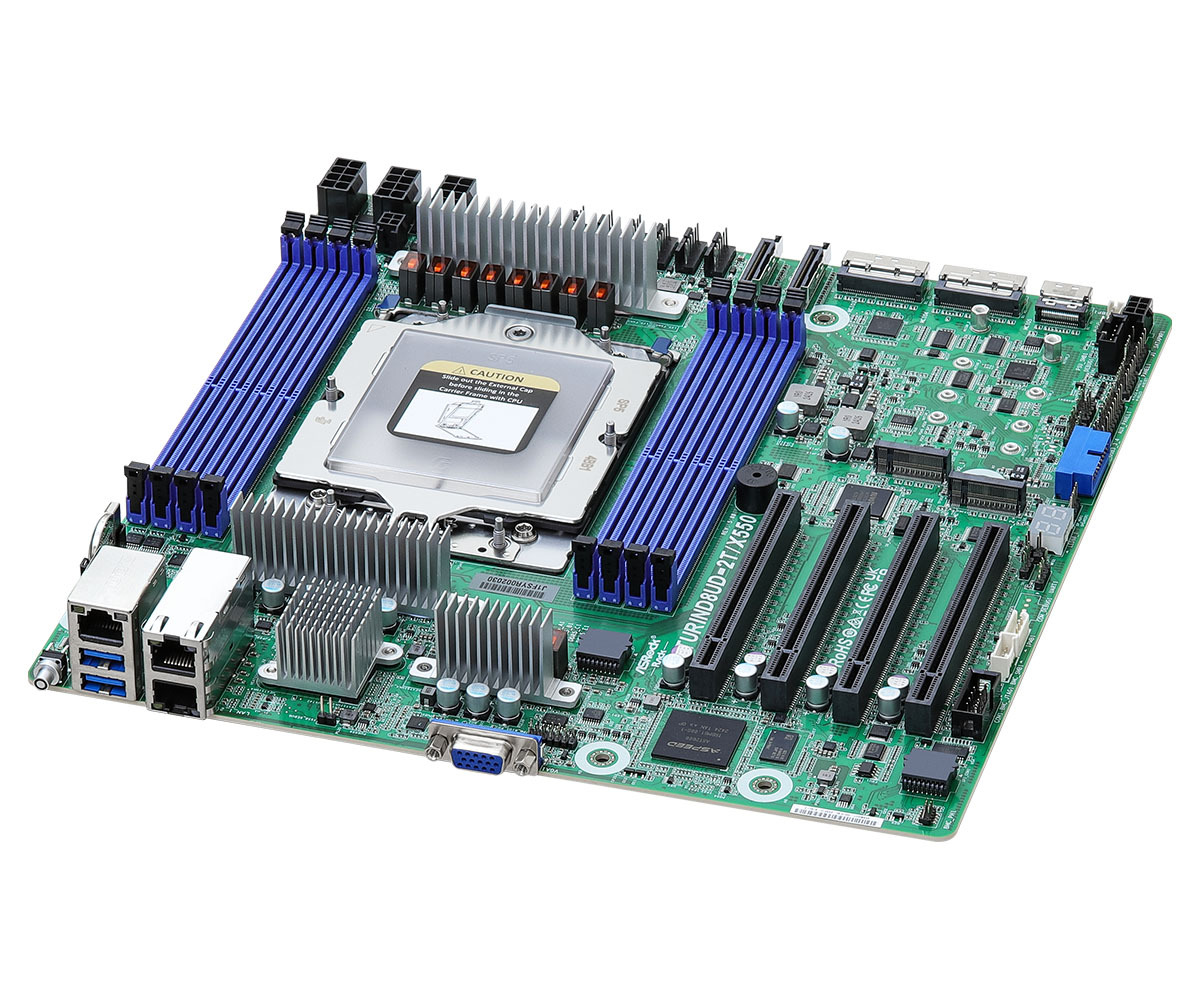

TURIND8UD-2T/X550

ModelTURIND8UD-2T/X550

10.4" x 10.5"

Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors

8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS

4 PCIe5.0 / CXL2.0 x16

Supports 2 M.2 (PCIe5.0 x4)

立即查詢

Specification

Dimensions 10.4" x 10.5"
 Processor System
CPU Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
Socket Single Socket SP5 (LGA 6096)
Thermal Design Power Up to 400W
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Max. DIMM Frequency 6400 MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 / CXL2.0* x16
SLOT5: PCIe5.0 / CXL2.0* x16
SLOT4: PCIe5.0 / CXL2.0* x16
SLOT3: PCIe5.0 / CXL2.0* x16
*Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
 Other PCIe Expansion Connectors
M.2 slot 2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
Others 2 MCIO (PCIe5.0 x8)
2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
1 MCIO (PCIe5.0 x4)
 SATA/SAS Storage
PCH Built-in Storage AMD EPYC™ 9005/9004 (16 SATA 6Gb/s):
2 MCIO
 Ethernet
Additional GbE Controller Intel® X550-AT2: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600
VRAM DDR4 512MB

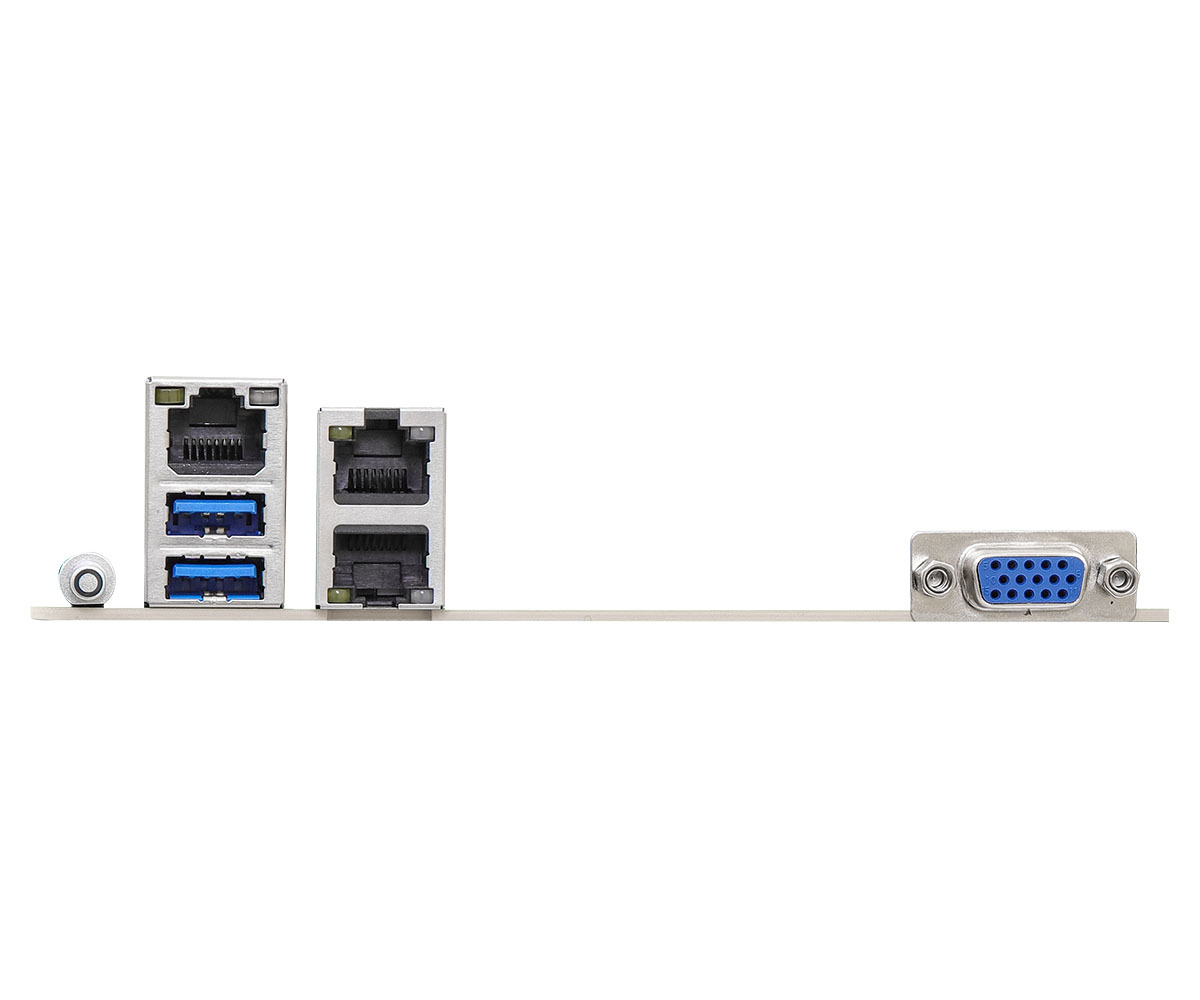

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors 1 (6-pin) for HDD power
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1
Speaker Header 1 (4-pin)
Fan Header 6 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
SGPIO Header 2
HSBP 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
USB 3.2 (Gen1) Header 1 (19-pin, 2 USB3.2 Gen1)
NMI Header 1
 LED Indicators
Standby PWR LED 1 (5VSB)
Fan Fail LED 6
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB, TR1 Temperature sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage VCORE,VCCSA,VCCM,3V, 5V, 12V, +BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP
 Supported OS
OS Microsoft® Windows: (for EPYC 9004)
- Server 2019 (64 bit)
- Server 2022 (64 bit)

Microsoft® Windows: (for EPYC 9005)
- Server 2019 (64 bit)
- Server 2022 (64 bit)
- Server 2025 (64 bit)

Linux: (for EPYC 9004)
- RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64 bit) / Server 9.0 (64 bit) / Server 9.1 (64 bit)
- SUSE SLES 15.4 (64 bit)
- UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit)

Linux: (for EPYC 9005)
- RedHat Enterprise Linux Server 8.10 (64bit) / Server 9.4 (64 bit)
- SUSE SLES 15.6 (64 bit)
- UBuntu 22.04.5 (64 bit) / 24.04.2 (64 bit)

Hypervisor: (for EPYC 9004)
- VMWare® ESXi 7.0 U3i / 8.0
- CITRIX Hypervisor 8.2.1
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)



CPU Support List

Socket Family Model Core Frequency Power Since BIOS Note
SP5 EPYC 9005 9845(100-000001458) TURIN 2.1GHz 390W 10.02
SP5 EPYC 9005 9825(100-000000837) TURIN 2.2GHz 390W 10.02
SP5 EPYC 9005 9745(100-000001460) TURIN 2.4GHz 400W 10.02
SP5 EPYC 9005 9655P(100-000001522) TURIN 2.6GHz 400W 10.02
SP5 EPYC 9005 9655(100-000000674) TURIN 2.6GHz 400W 10.02
SP5 EPYC 9005 9645(100-000001461) TURIN 2.3GHz 320W 10.02
SP5 EPYC 9005 9575F(100-000001554) TURIN 3.3GHz 400W 10.02
SP5 EPYC 9005 9565(100-000001447) TURIN 3.15GHz 400W 10.02
SP5 EPYC 9005 9555P(100-000001523) TURIN 3.2GHz 360W 10.02
SP5 EPYC 9005 9555(100-000001142) TURIN 3.2GHz 360W 10.02
SP5 EPYC 9005 9535(100-000001147) TURIN 2.4GHz 300W 10.02
SP5 EPYC 9005 9475F(100-000001143) TURIN 3.65GHz 400W 10.02
SP5 EPYC 9005 9455P(100-000001563) TURIN 3.15GHz 300W 10.02
SP5 EPYC 9005 9455(100-000001542) TURIN 3.15GHz 300W 10.02
SP5 EPYC 9005 9375F(100-000001197) TURIN 3.8GHz 320W 10.02
SP5 EPYC 9005 9365(100-000001448) TURIN 3.4GHz 300W 10.02
SP5 EPYC 9005 9355P(100-000001521) TURIN 3.55GHz 280W 10.02
SP5 EPYC 9005 9355(100-000001148) TURIN 3.55GHz 280W 10.02
SP5 EPYC 9005 9335(100-000001149) TURIN 3.0GHz 210W 10.02
SP5 EPYC 9005 9275F(100-000001144) TURIN 4.1GHz 320W 10.02
SP5 EPYC 9005 9255(100-000000694) TURIN 3.2GHz 200W 10.02
SP5 EPYC 9005 9175F(100-000001145) TURIN 4.2GHz 320W 10.02
SP5 EPYC 9005 9135(100-000001150) TURIN 3.65GHz 200W 10.02
SP5 EPYC 9005 9115(100-000001552) TURIN 2.6GHz 125W 10.02
SP5 EPYC 9005 9015(100-000001553) TURIN 3.6GHz 125W 10.02
SP5 EPYC 9004 9754(100-000000667) BERGAMO 2.25GHz 360W 10.02
SP5 EPYC 9004 9734(00-000000669) BERGAMO 2.2GHz 340W 10.02
SP5 EPYC 9004 9684X(100-000000892) GENOA-X 2.55GHz 400W 10.02
SP5 EPYC 9004 9654P(100-000000803) GENOA 2.4GHz 360W 10.02
SP5 EPYC 9004 9654(100-000000789) GENOA 2.4GHz 360W 10.02
SP5 EPYC 9004 9634(100-000000797) GENOA 2.25GHz 290W 10.02
SP5 EPYC 9004 9554P(100-000000804) GENOA 3.1GHz 360W 10.02
SP5 EPYC 9004 9554(100-000000790) GENOA 3.1GHz 360W 10.02
SP5 EPYC 9004 9534(100-000000799) GENOA 2.45GHz 280W 10.02
SP5 EPYC 9004 9474F(100-000000788) GENOA 3.6GHz 360W 10.02
SP5 EPYC 9004 9454P(100-000000873) GENOA 2.75GHz 290W 10.02
SP5 EPYC 9004 9454(100-000000478) GENOA 2.75GHz 290W 10.02
SP5 EPYC 9004 9384X(100-000000791) GENOA-X 3.1GHz 320W 10.02
SP5 EPYC 9004 9374F( 100-000000792) GENOA 3.85GHz 320W 10.02
SP5 EPYC 9004 9354P(100-000000805) GENOA 3.25GHz 280W 10.02
SP5 EPYC 9004 9354(100-000000798) GENOA 3.25GHz 280W 10.02
SP5 EPYC 9004 9334(100-000000800) GENOA 2.7GHz 210W 10.02
SP5 EPYC 9004 9274F(100-000000794) GENOA 4.05GHz 320W 10.02
SP5 EPYC 9004 9254(100-000000480) GENOA 2.9GHz 200W 10.02
SP5 EPYC 9004 9224(100-000000939) GENOA 2.5GHz 200W 10.02
SP5 EPYC 9004 9184X(100-000000795) GENOA-X 3.55GHz 320W 10.02
SP5 EPYC 9004 9174F(100-000000796) GENOA 4.1GHz 320W 10.02
SP5 EPYC 9004 9124(100-000000802) GENOA 3.0GHz 200W 10.02



Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR5 6400 RDIMM 96GB Micron MTC40F204WS1RC64BC1 MWFF 4UC7DD8GGR Micron
DDR5 6400 RDIMM 64GB Kingston KSM64R52BD4-64MD 4SD75D8DKR Micron
DDR5 6400 RDIMM 64GB Micron MTC40F2046S1RC64BD2 QWCC 4GD45D8DKR Micron
DDR5 6400 RDIMM 48GB Micron MTC20F104XS1RC64BC1 MWFF 4UC7DD8GGR Micron
DDR5 6400 RDIMM 32GB Kingston KSM64R52BD8-32MD 4SD4DD8DKT Micron
DDR5 6400 RDIMM 32GB Micron MTC20F1045S1RC64BD2 UXCC 4ED45D8DKR Micron
DDR5 6400 RDIMM 24GB Micron MTC10F108YS1RC64BC1 QSFF 4TC75D8GFX Micron
DDR5 6400 RDIMM 16GB Micron MTC10F1084S1RC64BD2 QSFF 4GD45D8DKT Micron
DDR5 6400 RDIMM 128GB Micron MTC40F2047S1RC64BB1 MWFF 4HB75D8FPT Micron
