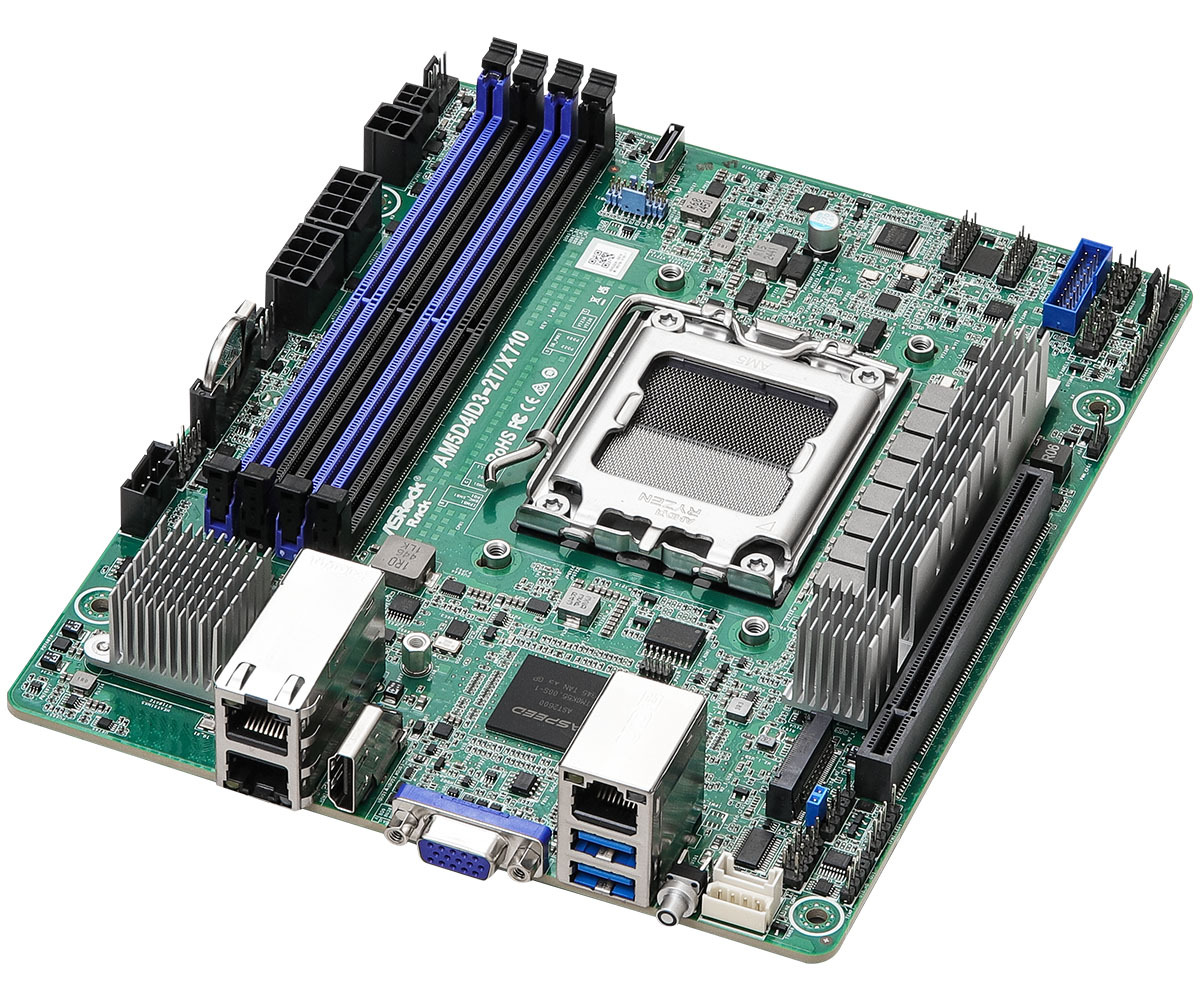

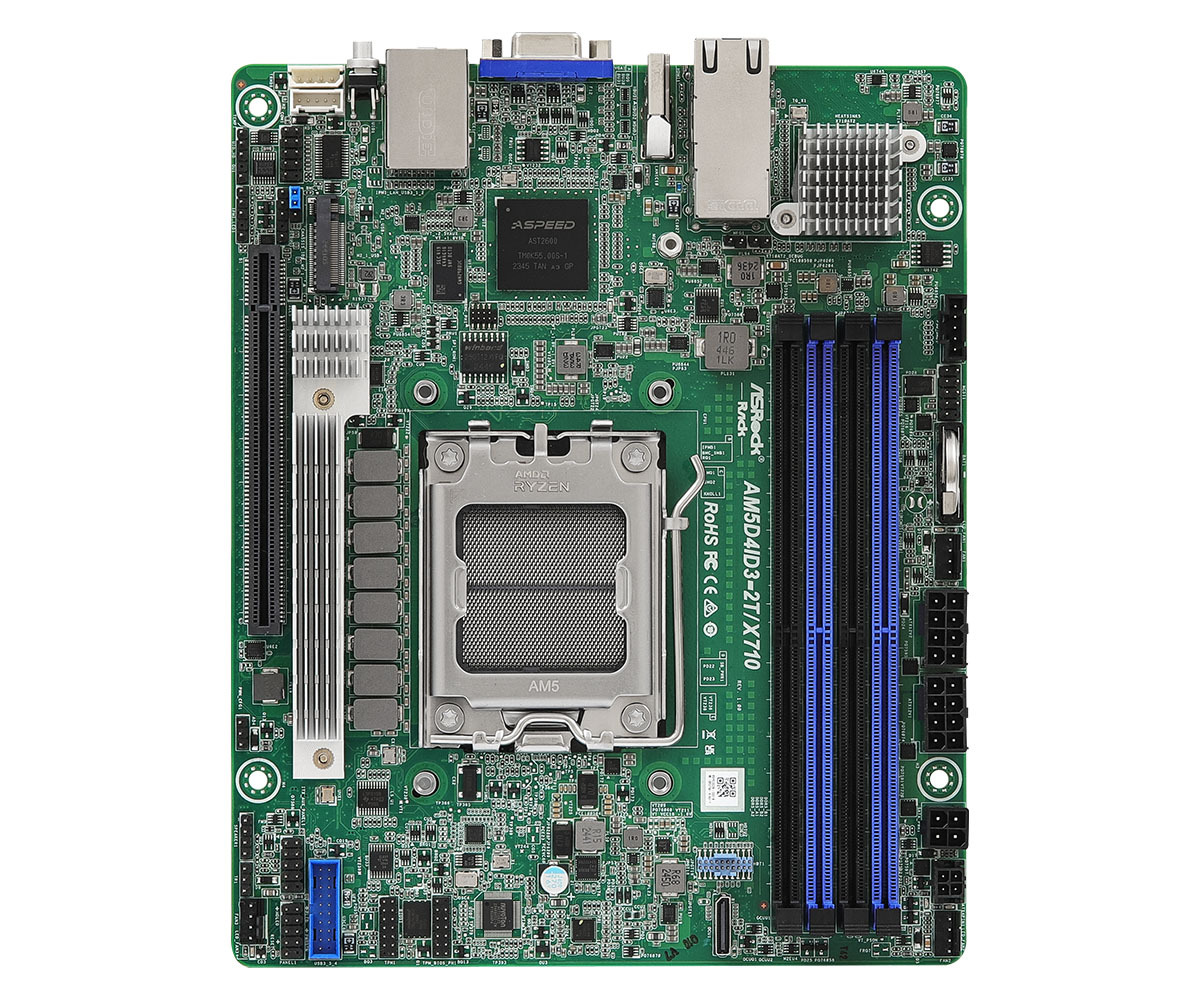

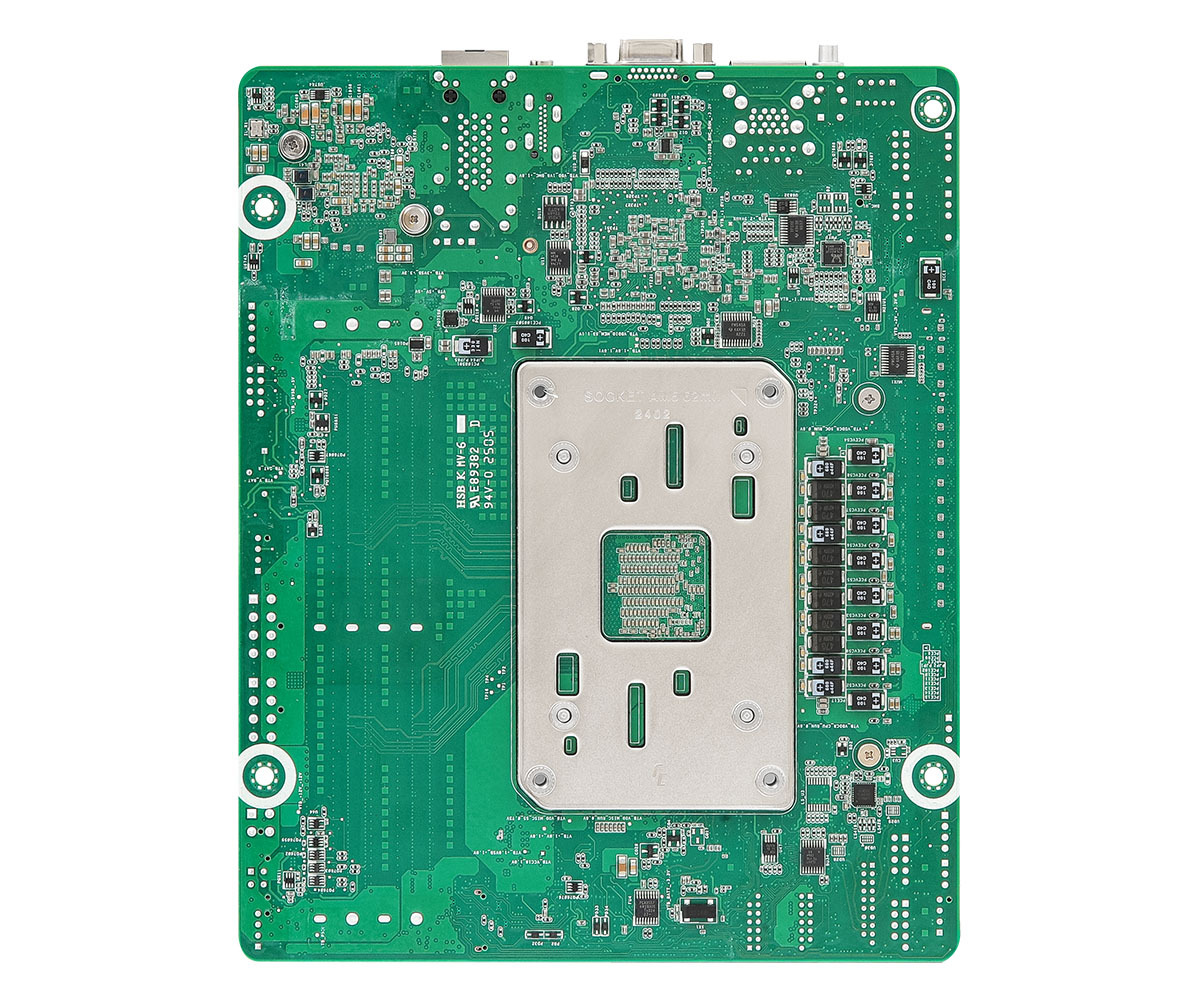

AM5D4ID3-2T/X710

ModelAM5D4ID3-2T/X710

Deep mini-ITX (6.7"x 8.2")

Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM

1 PCIe5.0 x16

1 OCuLink (PCIe4.0 x2)

Supports 1 M.2 (PCIe5.0 x4)

立即查詢

Specification

 Physical Status
Form Factor Deep mini-ITX
Dimensions 6.7" x 8.2"
 Processor System
CPU Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
Socket Single Socket AM5 (LGA 1718)
Thermal Design Power Up to 170W by proper cooling solution
Chipset KNOLL3 X300
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 48GB
Max. DIMM Frequency 5600 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 PCIe5.0 x16 [CPU]
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4), supports 2280 form factor [CPU]
OCuLink 1 OCuLink (PCIe4.0 x2) [CPU]
 Ethernet
Additional GbE Controller Intel® X710: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA)
AMD Processors with Graphics:
1 HDMI

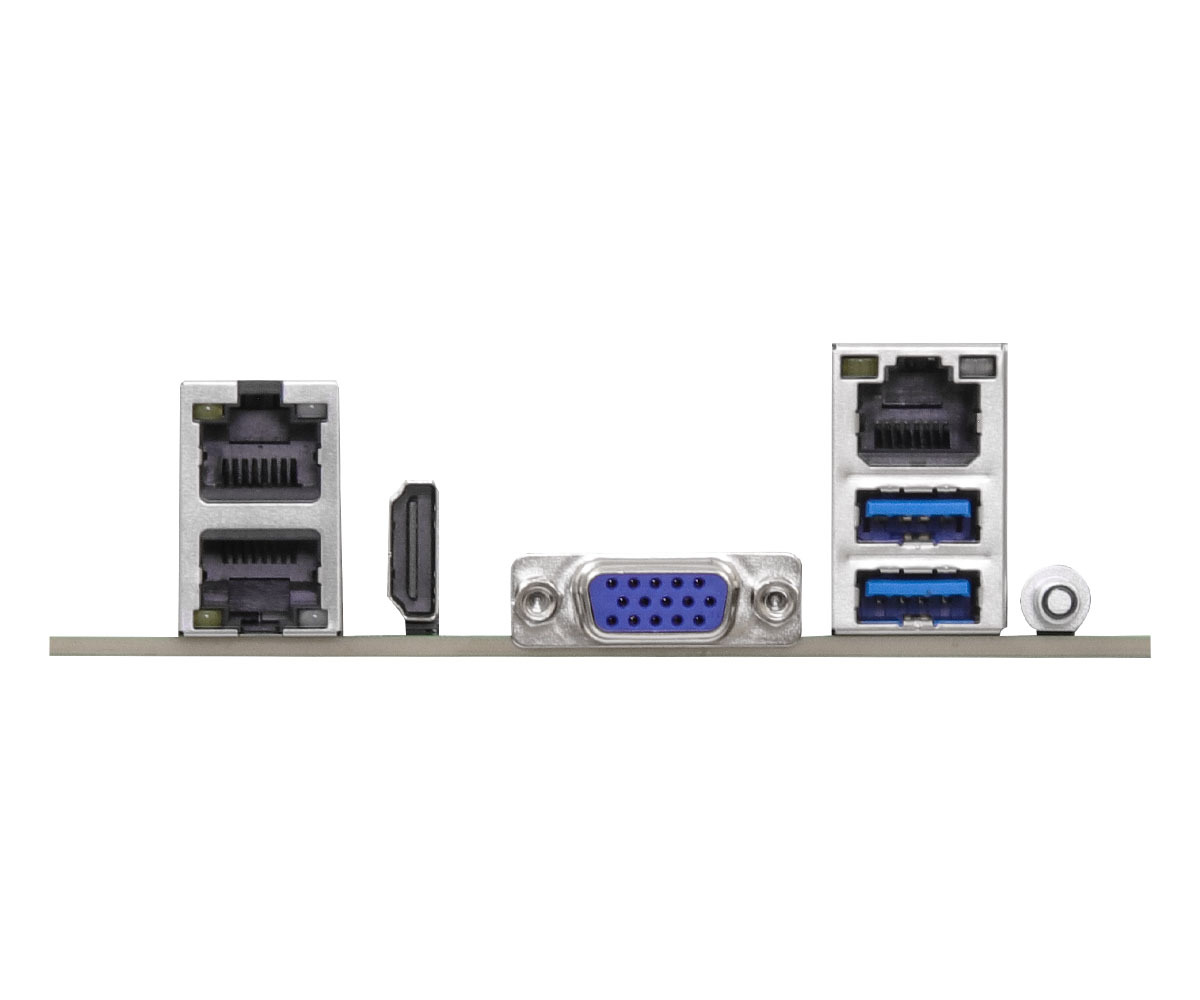

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA), 1 HDMI
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors 1 (4-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1
Speaker Header 1
Fan Header 3 (4-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1
Others 1 UID header (4-pin), 1 NCSI header (4-pin), 1 IPMI LAN LED header (4-pin), 1 80 debug port header (13-pin)
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
 LED Indicators
Standby PWR LED 1 (5VSB)
Fan Fail LED 3
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3
 Hardware Monitor
Temperature CPU, DDR, MB, Card Side
Fan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage 3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)



CPU Support List

Socket Family Model Core Frequency L2 Cache L3 Cache Power Since BIOS Note
AM5 Ryzen 9 PRO 7945(100-000000598) Raphael 3.7GHz 12MB 64MB 65W 1.24
AM5 Ryzen 9 9950X3D(100-000000719) Granite Ridge 4.3GHz 16MB 128MB 170W 20.02
AM5 Ryzen 9 9950X(100-000001277) Granite Ridge 4.3GHz 16MB 64MB 170W 20.02
AM5 Ryzen 9 9900X3D(100-000001368) Granite Ridge 4.4GHz 12MB 128MB 120W 20.02
AM5 Ryzen 9 9900X(100-000000662) Granite Ridge 4.4GHz 12MB 64MB 120W 20.02
AM5 Ryzen 9 7950X3D(100-000000908) Raphael 4.2GHz 16MB 128MB 120W 1.24
AM5 Ryzen 9 7950X(100-000000514) Raphael 4.5GHz 16MB 64MB 170W 1.24
AM5 Ryzen 9 7900X3D(100-000000909) Raphael 4.4GHz 12M 128MB 120W 1.24
AM5 Ryzen 9 7900X(100-000000589) Raphael 4.7GHz 12M 64MB 170W 1.24
AM5 Ryzen 9 7900(100-000000590) Raphael 3.7GHz 12M 64MB 65W 1.24
AM5 Ryzen 7 PRO 8700GE(100-000001240) Phoenix 1 3.6GHz 8MB 16MB 35W 10.09
AM5 Ryzen 7 PRO 8700G(100-000001238) Phoenix 1 4.2GHz 8MB 16MB 65W 10.09
AM5 Ryzen 7 PRO 7745(100-000000599) Raphael 3.8GHz 8MB 32MB 65W 1.24
AM5 Ryzen 7 9800X3D(100-000001084) Granite Ridge 4.7GHz 8MB 96MB 120W 20.02
AM5 Ryzen 7 9700X(100-000001404) Granite Ridge 3.8GHz 8MB 32MB 65W 20.02
AM5 Ryzen 7 8700G(100-000001236) Phoenix 1 4.2GHz 8MB 16MB 65W 10.09
AM5 Ryzen 7 8700F(100-000001590) Phoenix 1 4.1GHz 8MB 16MB 65W 20.01
AM5 Ryzen 7 7800X3D(100-000000910) Raphael 4.2GHz 8MB 96MB 120W 1.24
AM5 Ryzen 7 7700X(100-000000591) Raphael 4.5GHz 8MB 32MB 105W 1.24
AM5 Ryzen 7 7700(100-000000592) Raphael 3.8GHz 8MB 32MB 65W 1.24
AM5 Ryzen 5 PRO 8600GE(100-000001241) Phoenix 1 3.9GHz 6MB 16MB 35W 10.09
AM5 Ryzen 5 PRO 8600G(100-000001239) Phoenix 1 4.3GHz 6MB 16MB 65W 10.09
AM5 Ryzen 5 PRO 8500GE(100-000001185) Phoenix 2 3.4GHz 6MB 16MB 35W 10.09
AM5 Ryzen 5 PRO 8500G(100-000001183) Phoenix 2 3.5GHz 6MB 16MB 65W 10.09
AM5 Ryzen 5 PRO 7645(100-000000600) Raphael 3.8GHz 6MB 32MB 65W 1.24
AM5 Ryzen 5 9600X(100-000001405) Granite Ridge 3.9GHz 6MB 32MB 65W 20.02
AM5 Ryzen 5 9600(100-000000718) Granite Ridge 3.8GHz 6MB 32MB 65W 20.02
AM5 Ryzen 5 8600G(100-000001237) Phoenix 1 4.3GHz 6MB 16MB 65W 10.09
AM5 Ryzen 5 8500GE(100-000001184) Phoenix 2 3.4GHz 6MB 16MB 35W 20.01
AM5 Ryzen 5 8500G(100-000000931) Phoenix 2 3.5GHz 6MB 16MB 65W 10.09
AM5 Ryzen 5 8400F(100-000001591) Phoenix 1 4.2GHz 6MB 16MB 65W 20.01
AM5 Ryzen 5 7600X3D(100-000001721) Raphael 4.1GHz 6MB 96MB 65W 20.02
AM5 Ryzen 5 7600X(100-000000593) Raphael 4.7GHz 6MB 32MB 105W 1.24
AM5 Ryzen 5 7600(100-000001015) Raphael 3.8GHz 6MB 32MB 65W 1.24
AM5 Ryzen 5 7500F(100-000000597) Raphael 3.7GHz 6MB 32MB 65W 1.24
AM5 Ryzen 5 7400F(100-000001845) Raphael 3.7GHz 6MB 32MB 65W 20.02
AM5 Ryzen 3 PRO 8300GE(100-000001189) Phoenix 2 3.5GHz 4MB 8MB 35W 10.09
AM5 Ryzen 3 PRO 8300G(100-000001187) Phoenix 2 3.4GHz 4MB 8MB 65W 10.09
AM5 Ryzen 3 8300GE(100-000001188) Phoenix 2 3.5GHz 4MB 8MB 35W 20.01
AM5 Ryzen 3 8300G(100-000001186) Phoenix 2 3.4GHz 4MB 8MB 65W 10.09
AM5 EPYC 4004 4584PX(100-000001481) Raphael 4.2GHz   128MB 120W 10.11
AM5 EPYC 4004 4564P(100-000001476) Raphael 4.5GHz   64MB 170W 10.11
AM5 EPYC 4004 4484PX(100-000001482) Raphael 4.4GHz   128MB 120W 10.11
AM5 EPYC 4004 4464P(100-000001478) Raphael 3.7GHz   64MB 65W 10.11
AM5 EPYC 4004 4364P(100-000001477) Raphael 4.5GHz   32MB 105W 10.11
AM5 EPYC 4004 4344P(100-000001479) Raphael 3.8GHz   32MB 65W 10.11
AM5 EPYC 4004 4244P(100-000001480) Raphael 3.8GHz   32MB 65W 10.11
AM5 EPYC 4004 4124P(100-000001570) Raphael 3.8GHz   16MB 65W 10.11
AM5 EPYC 4005 4565P(100-000001559) Grado 4.3GHz   64MB 170W 21.02
AM5 EPYC 4005 4345P(100-000001556) Grado 3.8GHz   32MB 65W 21.02
AM5 EPYC 4005 4245P(100-000001555) Grado 3.9GHz   32MB 65W 21.02



Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR5 5600 non-ECC 48GB Crucial CP48G56C46U5.C16B   Micron
DDR5 5600 ECC 48GB Hynix HMCGY8MGBEB213N H5CG08MGBD X021 Hynix



TPM QVL

Type Interface Pin IC Model
TPM SPI SPI 13 pin SLB9672VU20 TPM-SPI/INFINEON*
TPM SPI SPI 13 pin SLB9670VQ2.0 TPM-SPI/INFINEON*
Model AM5D4ID3-2T/X710
