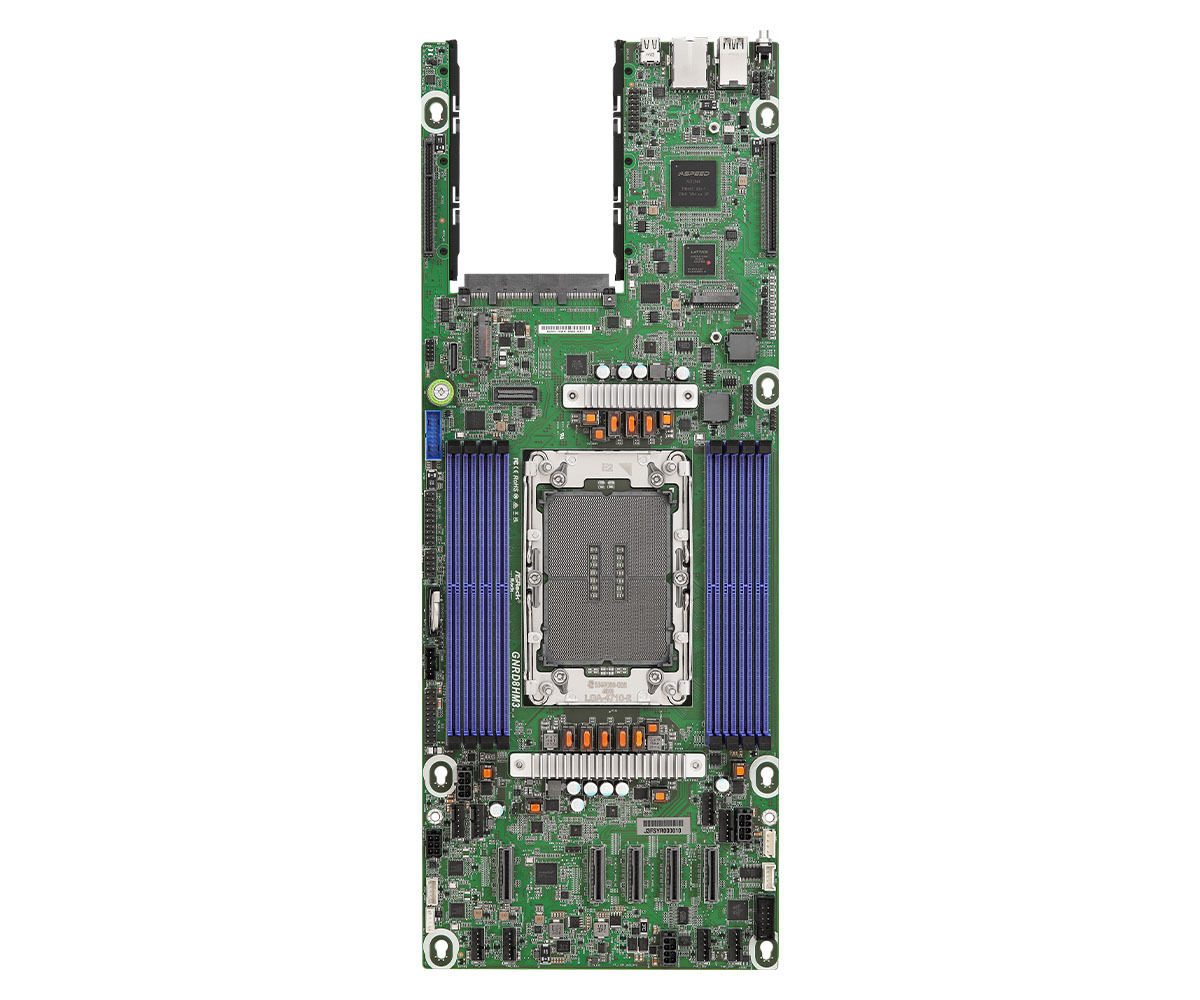

GNRD8HM3

ModelGNRD8HM3

Half-width (6.6" x 17")

Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors

8 DIMM slots (1DPC), supports DDR5 RDIMM

2 Slim Cool Edge (PCIe5.0 / CXL2.0 x16)

1 OCulink (4 SATA 6Gb/s)

Supports 2 M.2 (PCIe5.0 x4)

立即查詢

Specification

 Physical Status
Form Factor Half-Width
Dimensions 6.6" x 17" (167.64 x 431.80 mm)
 Processor System
CPU Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors
Socket 1 Socket E2 (LGA 4710)
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type DDR5 RDIMM
Max. Capacity per DIMM RDIMM: 128GB
Max. DIMM Frequency RDIMM: 6400MT/s (1DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT1: Slim Cool Edge (PCIe5.0 / CXL2.0 x16)
SLOT2: Slim Cool Edge (PCIe5.0 / CXL2.0 x16)
 TPM
TPM support 1 (13-pin, SPI)
 Other PCIe Expansion Connectors
M.2 slot M2_1 (PCIe5.0 / CXL2.0 x4), supports 2280 form factor
M2_2 (PCIe5.0 / CXL2.0 x4), supports 22110 form factor
Others 2 MCIO (PCIe5.0 / CXL2.0 x8)
2 MCIO (PCIe5.0 x8)*
1 MCIO (PCIe5.0 x8)

*MCIO3 and MCIO4 only function with selected processors
OCuLink 1 OCuLink (4 SATA 6Gb/s)
 Ethernet
OCP slot 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
 Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Graphics
Controller ASPEED AST2600:
1 Mini-DP (VGA), 1 (15-pin) header

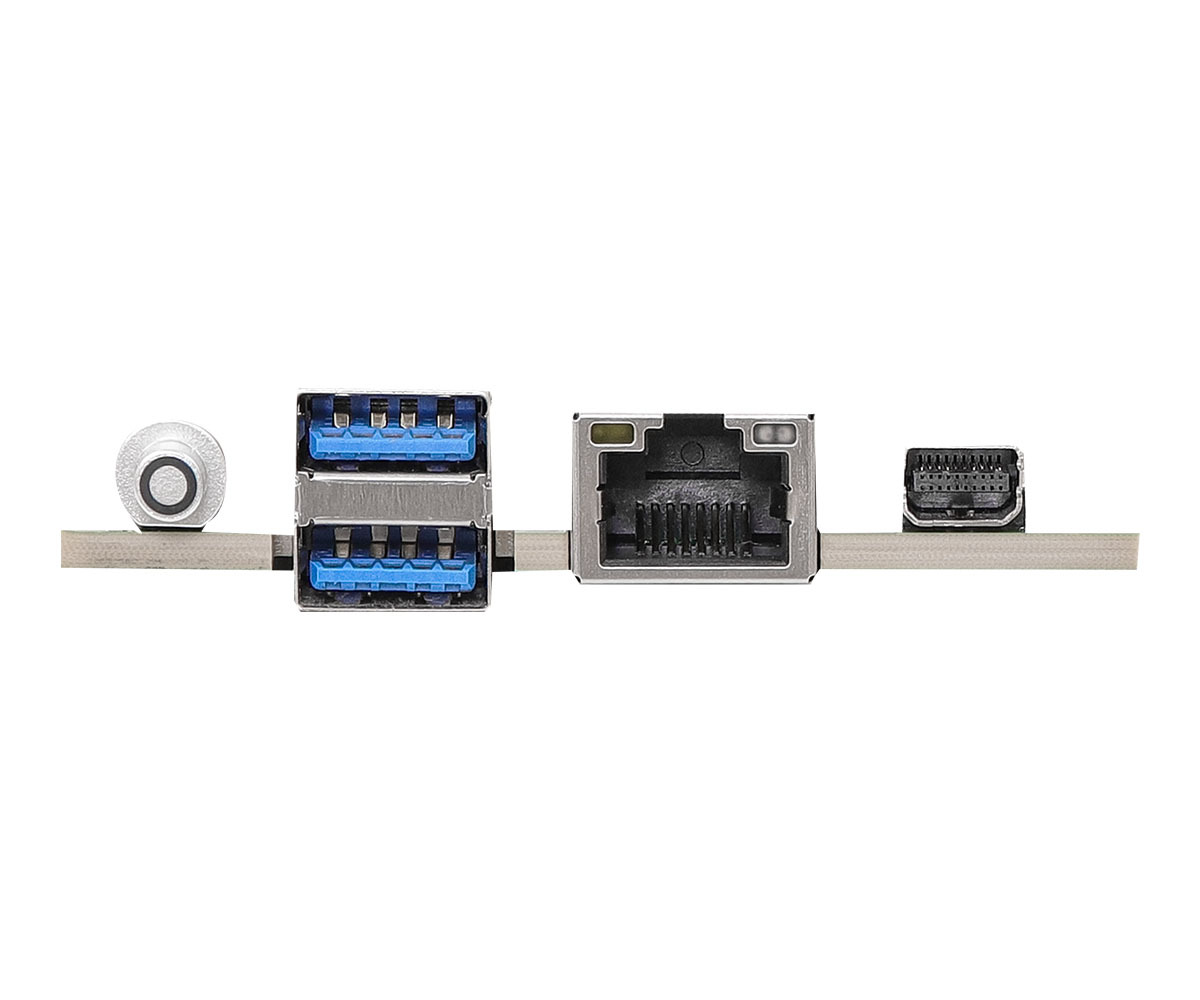

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 Mini-DP (VGA, adapter cable required)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 1 dedicated IPMI
 Internal Connector/Headers
Power Connector 3 Micro-Hi (8-pin, 12V), 1 (19-pin, CM Board Standby Power 12V)
Other Power Connectors 1 (6-pin) for HDD power
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1
VGA header 1
Speaker Header 1
Fan Header 8 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
VROC header 1
HSBP 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
NMI Header 1
 LED Indicators
Standby PWR LED 1 (5VSB)
Fan Fail LED 8
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage PVCCD0_HV_CPU1, PVCCD1_HV_CPU1, PVCCFA_EHV_FIVRA_CPU1, PVCCINF_CPU1, PVCCIN_CPU1, PVCCFA_EHV_CPU1, PVNN_TERM_CPU1, 3.3V, 5V, 12V, 1.8V_AUX, +3VSB, +5VSB, +12VSB,
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)



CPU Support List

Socket Family Number Core Frequency Cache Power Since BIOS Note
4710 Xeon 6 6520P Granite Rapids 2.4GHz 144MB 210W 1.08
4710 Xeon 6 6521P Granite Rapids 2.6GHz 144MB 225W 1.08
4710 Xeon 6 6731P Granite Rapids 2.5GHz 144MB 245W 1.08
4710 Xeon 6 6530P Granite Rapids 2.3GHz 144MB 225W 1.08
4710 Xeon 6 6736P Granite Rapids 2GHz 144MB 205W 1.08
4710 Xeon 6 6737P Granite Rapids 2.9GHz 144MB 270W 1.08
4710 Xeon 6 6767P Granite Rapids 2.4GHz 336MB 350W 1.08
4710 Xeon 6 6507P Granite Rapids 3.5GHz 48MB 150W 1.08
4710 Xeon 6 6511P Granite Rapids 2.3GHz 72MB 150W 1.08
4710 Xeon 6 6517P Granite Rapids 3.2GHz 72MB 190W 1.08
4710 Xeon 6 6740P Granite Rapids 2.1GHz 288MB 270W 1.08
4710 Xeon 6 6741P Granite Rapids 2.5GHz 288MB 300W 1.08
4710 Xeon 6 6731E Sierra Forest 2.2GHz 96MB 250W 1.08
4710 Xeon 6 6766E Sierra Forest 1.9GHz 108MB 250W 1.08
4710 Xeon 6 6710E Sierra Forest 2.4GHz 96MB 205W 1.08
4710 Xeon 6 6780E Sierra Forest 2.2GHz 108MB 330W 1.08
4710 Xeon 6 6756E Sierra Forest 1.8GHz 96MB 225W 1.08
4710 Xeon 6 6740E Sierra Forest 2.4GHz 96MB 250W 1.08
4710 Xeon 6 6747P Granite Rapids 2.7GHz 288MB 330W 1.08
4710 Xeon 6 6746E Sierra Forest 2GHz 96MB 250W 1.08
4710 Xeon 6 6730P Granite Rapids 2.5GHz 288MB 250W 1.08
4710 Xeon 6 6781P Granite Rapids 2GHz 336MB 350W 1.08
4710 Xeon 6 6760P Granite Rapids 2.2GHz 320MB 330W 1.08
4710 Xeon 6 6761P Granite Rapids 2.5GHz 336MB 350W 1.08
4710 Xeon 6 6787P Granite Rapids 2GHz 336MB 350W 1.08
4710 Xeon 6 6732P Granite Rapids 3.8GHz 144MB 350W 1.08
Model GNRD8HM3
