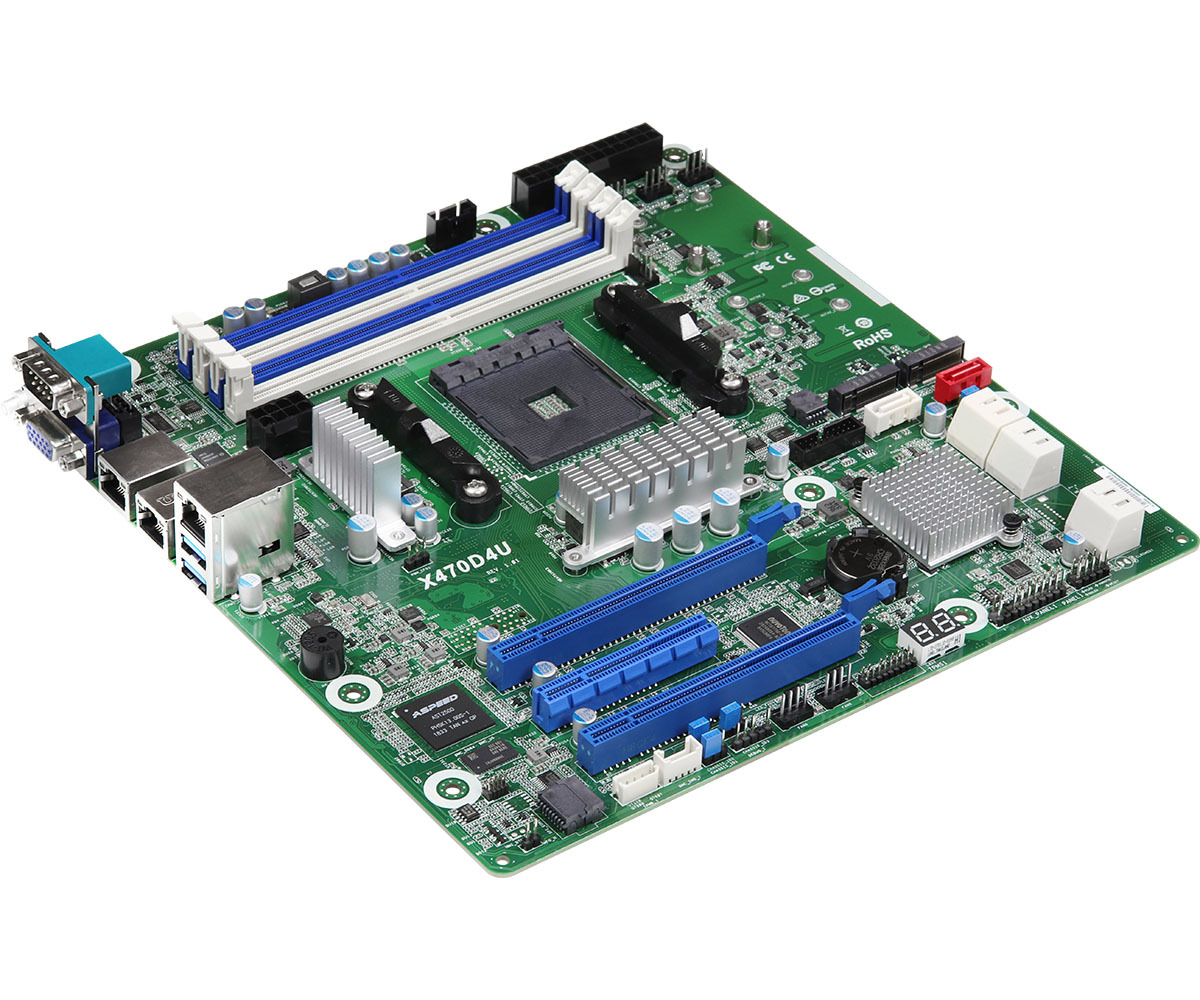

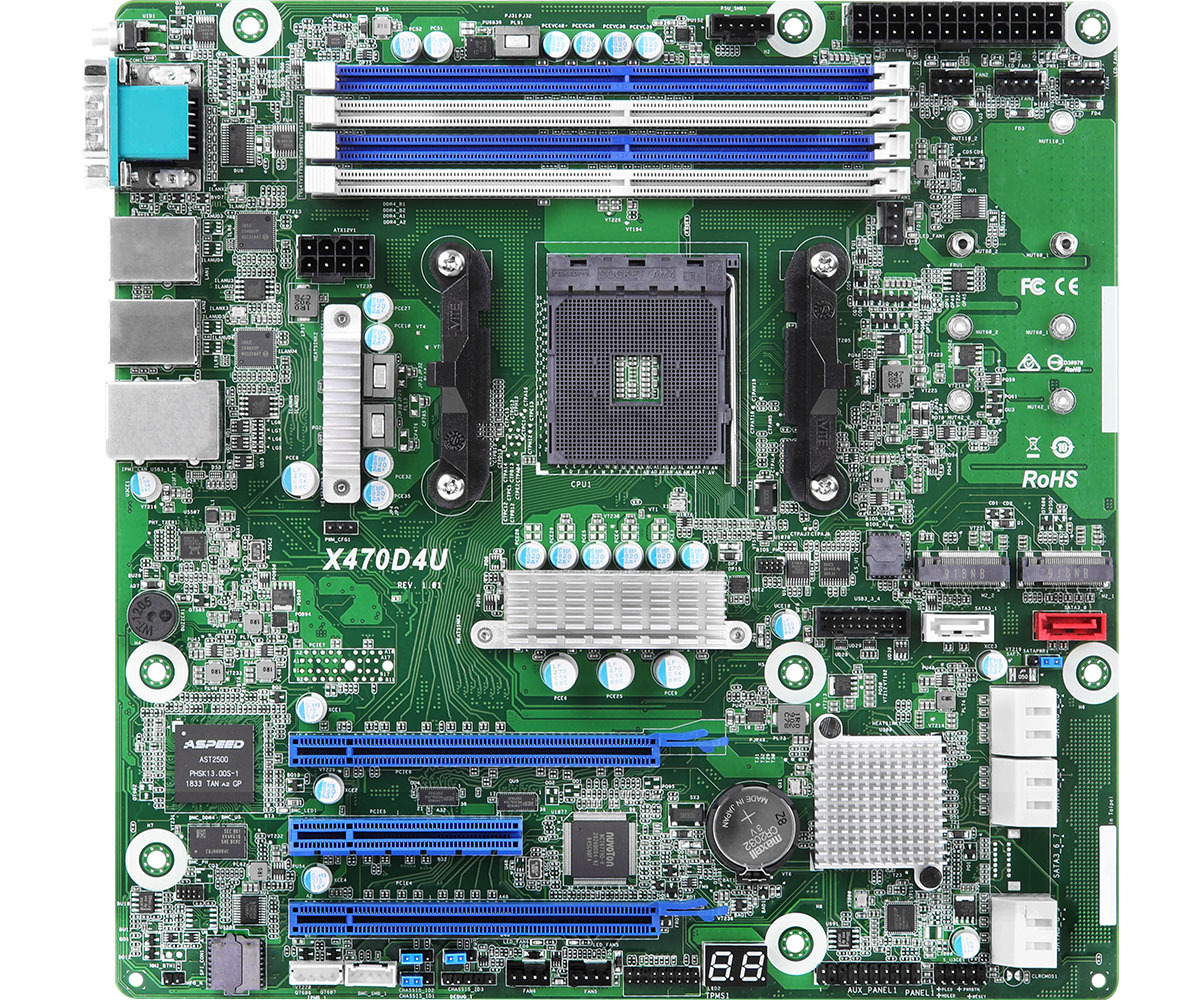

X470D4U

ModelX470D4U

Supports AMD AM4 Socket Ryzen™ PRO/ Ryzen™ 2nd and 3rd generation series processors

Supports 4x DDR4 ECC and non-ECC UDIMM, max. 128 GB

Supports up to 8 SATA 6Gb/s (6 SATA 6Gb/s from X470, 2 SATA 6Gb/s from Asmedia)

立即查詢

Specifications

 Physical Status
Form Factor Micro-ATX
Dimensions 9.6'' x 9.6'' (244 mm x 244 mm)
 Processor System
CPU

AMD Ryzen™ PRO 3000 and 2000 Series Desktop Processors

3rd and 2nd Gen AMD Ryzen™ Desktop Processors

2nd and 1st Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics
Socket AM4 PGA 1331
Chipset AMD Promontory X470
 System Memory
Supported DIMM Quantity

4 x 288-pin DDR4 DIMM slots

Support up to 128GB DDR4 ECC/UDIMM
Supported Type

Dual Channel DDR4 memory technology

Support DDR4 ECC/UDIMM*


*Conditionally support ECC error reporting function

*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
Max. Capacity per DIMM ECC/UDIMM: 32GB, 16GB, 8GB
DIMM Frequency

ECC/UDIMM: 3200/2933/2666/2400/2133 MHz


*Different memory frequency support please refer our user manual P19.
Voltage 1.2V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16

SLOT6: PCIe3.0 x16 (splittable in x4/4/4/4), auto-switch to x8 when SLOT4 is occupied)

SLOT4: PCIe x16 (PCIe3.0 x8)
PCIe x 8 SLOT5: PCIe3.0 x4 link
 Other PCIe Expansion Connectors
M.2 slot 2 (2242/2260/2280/22110, supports SATA 6Gb/s or PCIe3.0 x2 and supports PCIe2.0 x4 only)
 SATA/SAS Storage
PCH Built-in Storage

6 SATA3 6Gb/s (1 SATA DOM port), support RAID 0, 1, 10

Additional SATA Storage Controller
Additional SATA Controller Asmedia 1061: 2 SATA 6Gb/s
 Ethernet
Interface 1000 /100 /10 Mbps by Intel® i210AT
Additional GbE Controller

2 x RJ45 GLAN by Intel® i210AT

1 x RJ45 Dedicated IPMI LAN port


Supports Wake-On-LAN

Supports Energy Efficient Ethernet 802.3az

Supports Dual LAN with Teaming function

Supports PXE

LAN1 supports NCSI
 Server Management
BMC Controller ASPEED AST2500
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Features Watch Dog
 Graphics
Controller ASPEED AST2500
VRAM DDR4 16MB

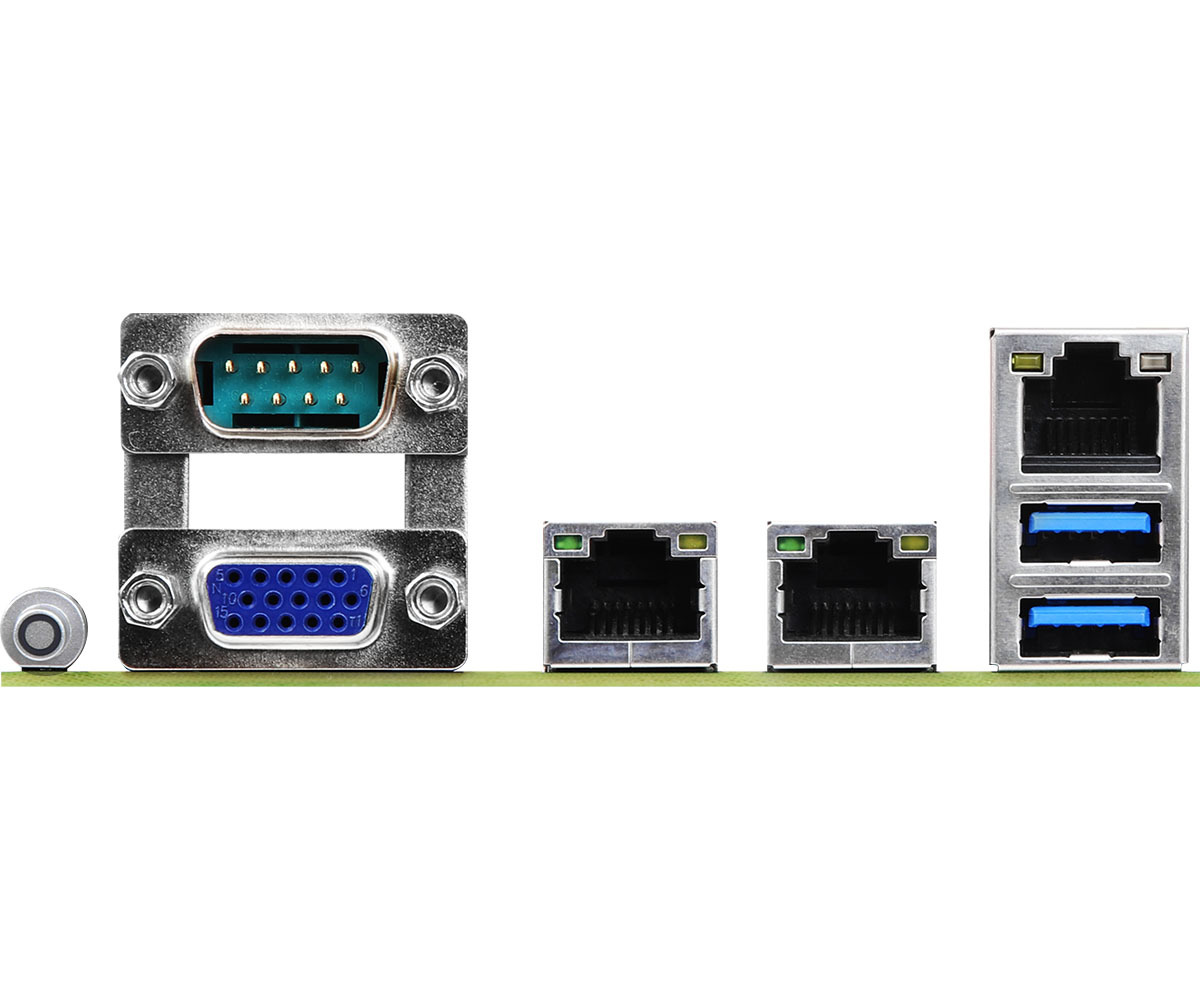

 Rear I/O
UID Button/LED 1
VGA Port 1 x D-Sub
Serial Port 1
USB 3.2 Gen1 Port 2
RJ45

2 x RJ45 Gigabit Ethernet LAN ports

1 x RJ45 Dedicated IPMI LANLAN Ports with LED (ACT/LINK LED and SPEED LED)
 Internal Connector/Headers
PSU connector 1x (24-pin) + 1x (8-pin)
Auxiliary Panel Header 1 (include C_CASEOPEN#、SYSTEM_FAULT_LED、LAN1 & LAN2 LED, location button & LED,BMC alert )
Buzzer 1
Fan Header 6 Fans x 4-pin (FAN1(CPU)/FAN2~FAN6(5Front))
TPM Header 1
SMBus header 1
IPMB Header 1
Clear CMOS 1 (short pad)
SATA DOM 1
M.2 2 (M2_1: 2242/2260/2280/22110, PCIE(X4); M2_2:2242/2260/2280/22110, SATA/PCIE(X2))
USB 3.2 (Gen1) Header 1 (supports 2 USB 3.1 Gen1 ports)
PSU SMB Header 1
 LED Indicators
80 Debug Port LED 1
Fan Fail LED 6 (only Fan Fail LED)
 System BIOS
BIOS Type 16MB AMI UEFI Legal BIOS
BIOS Features

Plug and Play (PnP)

ACPI 2.0 Compliance Wake Up Events

SMBIOS 2.8.0 Support

ASRock Rack Instant Flash
 Hardware Monitor
Temperature

CPU/DDR temperature sensing

MB/Card side temperature sensing
Fan

Fan Tachometer

Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB
 Supported OS
OS

Microsoft® Windows:

Windows® 10 (64 bit)


Linux:

UBuntu 16.04.4 (64 bit)

RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit)


* On Linux system doesn't support Raid mode

* Support UEFI BOOT only
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)







CPU Support List

Socket Family Model Core Frequency Cache Power Since BIOS
AM4 Ryzen 7 PRO 4750G(100-000000145) Renoir 3.6GHz 4MB 65W P4.20
AM4 Ryzen 7 PRO 4750GE(100-000000152) Renoir 3.1GHz 4MB 35W P4.20
AM4 Ryzen 7 4700G(100-000000146) Renoir 3.6GHz 4MB 65W P4.20
AM4 Ryzen 7 4700GE(100-000000149) Renoir 3.1GHz 4MB 35W P4.20
AM4 Ryzen 5 PRO 4650G(100-000000143) Renoir 3.7GHz 3MB 65W P4.20
AM4 Ryzen 5 PRO 4650GE(100-000000153) Renoir 3.3GHz 3MB 35W P4.20
AM4 Ryzen 5 4600G(100-000000147) Renoir 3.7GHz 3MB 65W P4.20
AM4 Ryzen 5 4600GE(100-000000150) Renoir 3.3GHz 3MB 35W P4.20
AM4 Ryzen 3 PRO 4350G(100-000000148) Renoir 3.8GHz 2MB 65W P4.20
AM4 Ryzen 3 PRO 4350GE(100-000000154) Renoir 3.5GHz 2MB 35W P4.20
AM4 Ryzen 3 4300G(100-000000144) Renoir 3.8GHz 2MB 65W P4.20
AM4 Ryzen 3 4300GE(100-000000151) Renoir 3.5GHz 2MB 35W P4.20
AM4 Ryzen 9 PRO 3900(100-000000072) Matisse 3.10 GHz 6MB 65W P3.50
AM4 Ryzen 9 3950X(100-000000051) Matisse 3.50GHz 8MB 105W P3.50
AM4 Ryzen 9 3900XT(100-000000277) MATISSE2 3.8GHz 6MB 105W P3.50
AM4 Ryzen 9 3900X(100-000000023) Matisse 3.80GHz 6MB 105W P3.50
AM4 Ryzen 7 3800X(100-000000025) Matisse 3.9GHz 4MB 105W P3.50
AM4 Ryzen 7 3800XT(100-000000279) MATISSE2 3.9GHz 4MB 105W P3.50
AM4 Ryzen 7 3700X(100-000000071) Matisse 3.60 GHz 4MB 65W P3.50
AM4 Ryzen 5 PRO 3600(100-000000029) Matisse 3.60GHz 3MB 65W P3.50
AM4 Ryzen 5 PRO 3400G(YD340BC5M4MFH) Picasso 3.70 GHz 2MB 65W P3.50
AM4 Ryzen 5 3600XT(100-000000281) MATISSE2 3.8GHz 3MB 95W P3.50
AM4 Ryzen 5 3600X(100-000000022) Matisse 3.80 GHz 3MB 95W P3.50
AM4 Ryzen 5 3600(100-000000031) Matisse 3.60 GHz 3MB 65W P3.50
AM4 Ryzen 5 3400G(YD3400C5M4MFH) Picasso 3.70 GHz 2MB 65W P3.50
AM4 Ryzen 5 3400GE(YD3400C6M4MFH) Picasso 3.30 GHz 2MB 35W P3.50
AM4 Ryzen 3 PRO 3200G(YD320BC5M4MFH) Picasso 3.60 GHz 2MB 45-65W P3.50
AM4 Ryzen 3 3200G(YD3200C5M4MFH) Picasso 3.60 GHz 2MB 65W P3.50
AM4 Ryzen 3 3200GE(YD3200C6M4MFH) Picasso 3.30 GHz 2MB 35W P3.50
AM4 Ryzen 7 PRO 2700X(YD27BXBAM88AF) Pinnacle Ridge 3.60 GHz 4MB 95W P3.50
AM4 Ryzen 7 PRO 2700(YD270BBBM88AF) Pinnacle Ridge 3.20 GHz 4MB 65W P3.50
AM4 Ryzen 7 2700X(YD270XBGM88AF) Pinnacle Ridge 3.70 GHz 4MB 105W P3.50
AM4 Ryzen 7 2700(YD2700BBM88AF) Pinnacle Ridge 3.20 GHz 4MB 65W P3.50
AM4 Ryzen 7 2700E(YD270EBHM88AF) Pinnacle Ridge 2.80 GHz 4MB 45W P3.50
AM4 Ryzen 5 PRO 2600(YD260BBBM6IAF) Pinnacle Ridge 3.40GHz 3MB 65W P3.50
AM4 Ryzen 5 PRO 2400G(YD240BC5M4MFB) Raven Ridge 3.60 GHz 2MB 65W P3.50
AM4 Ryzen 5 PRO 2400GE(YD240BC6M4MFB) Raven Ridge 3.20 GHz 2MB 35W P3.50
AM4 Ryzen 5 2600X(YD260XBCM6IAF) Pinnacle Ridge 3.60 GHz 3MB 95W P3.50
AM4 Ryzen 5 2600(YD2600BBM6IAF) Pinnacle Ridge 3.40 GHz 3MB 65W P3.50
AM4 Ryzen 5 2600E(YD260EBHM6IAF) Pinnacle Ridge 3.10 GHz 3MB 45W P3.50
AM4 Ryzen 5 2500X(YD250XBBM4KAF) Pinnacle Ridge 3.60 GHz 2MB 65W P3.50
AM4 Ryzen 5 2400G(YD2400C5M4MFB) Raven Ridge 3.60GHz 2MB 65W P3.50
AM4 Ryzen 5 2400GE(YD2400C6M4MFB) Raven Ridge 3.20 GHz 2MB 35W P3.50
AM4 Ryzen 3 PRO 2200G(YD220BC5M4MFB) Raven Ridge 3.50GHz 2MB 65W P3.50
AM4 Ryzen 3 PRO 2200GE(YD220BC6M4MFB) Raven Ridge 3.20 GHz 2MB 35W P3.50
AM4 Ryzen 3 2300X(YD230XBBM4KAF) Pinnacle Ridge 3.50 GHz 2MB 65W P4.50
AM4 Ryzen 3 2200G(YD2200C5M4MFB) Raven Ridge 3.50GHz 2MB 65W P3.50
AM4 Ryzen 3 2200GE(YD2200C6M4MFB) Raven Ridge 3.20GHz 2MB 35W P3.50
AM4 Ryzen 3 3100(100-000000284) Matisse 3.6GHz 2MB 65W P3.50
AM4 Ryzen 7 PRO 3700(100-000000073) Matisse 3.6GHz 4MB 65W P3.50
AM4 Ryzen 3 5300G(100-000000253) Cezanne 4.0GHz 2MB 65W P4.20
AM4 Ryzen 5 5600G(100-000000252) Cezanne 3.9GHz 3MB 65W P4.20
AM4 Ryzen 7 5700G(100-000000263) Cezanne 3.8GHz 4MB 65W P4.20
AM4 Ryzen 5 5600X(100-000000065) Vermeer 3.7GHz 3MB 65W P4.20
AM4 Ryzen 3 3300X(100-000000159) Matisse 3.8GHz 2MB 65W P3.50
AM4 Ryzen 5 PRO 3400GE(YD340BC6M4MFH) Picasso 3.3GHz 2MB 35W P3.50
AM4 Ryzen 5 3500X(100-000000158) Matisse 3.6GHz 3MB 65W P3.50
AM4 Ryzen 3 PRO 3200GE(YD320BC6M4MFH) Picasso 3.3GHz 2MB 35W P3.50
AM4 Ryzen 9 5950X(100-000000059) Vermeer 3.4GHz 8MB 105W P4.20
AM4 Ryzen 9 5900X(100-000000061) Vermeer 3.7GHz 6MB 105W P4.20
AM4 Ryzen 5 PRO 3400G(YD340BC5M4MFH) Picasso 3.7GHz 2MB 65W P3.50
AM4 Ryzen 5 5600GE(100-000000261) Cezanne 3.4GHz 3MB 35W P4.20
AM4 Ryzen 3 5300GE(100-000000262) Cezanne 3.6GHz 2MB 35W P4.20
AM4 Ryzen 7 5700GE(100-000000260) Cezanne 3.2GHz 4MB 35W P4.20
AM4 Ryzen 7 5800X(100-000000063) Vermeer 3.8GHz 4MB 105W P4.20







Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR4 3200 non-ECC 16GB Crucial CT16G4DFD832A.16FE1 9LE75D9WFL Micron
DDR4 2666 non-ECC 8GB A-DATA AD4U266638G19-BSSC K4A8G085WC BCTD Sec
DDR4 2666 non-ECC 8GB Apacer 78.C1GS7.AT40B 7YE77D9WFH Micron
DDR4 2666 non-ECC 8GB Kingston KVR26N19S8/8 8CE75D9VPP Micron
DDR4 2666 non-ECC 32GB Samsung M378A4G43MB1-CTD K4AAG085WM BCTD Sec
DDR4 2666 ECC 32GB Samsung M391A4G43MB1-CTDQ 901 K4AAG085WM BCTD Sec
DDR4 2666 non-ECC 16GB Crucial CT16G4DFD8266.C16FD1 8HD75C9BGT Micron
DDR4 2666 ECC 16GB Kingston KSM26ED8/16ME 8CE75D9VPP Micron
DDR4 2666 non-ECC 16GB Samsung M378A2K43CB1-CTD K4A8G085WC BCTD Sec
DDR4 2666 ECC 16GB Samsung M391A2K43BB1-CTDQ K4A8G085WB BCTD Sec
DDR4 2400 ECC 8GB Hynix HMA81GU7AFR8N-UHT0 H5AN8G8NAFR Hynix
DDR4 2400 non-ECC 16GB Crucial CT16G4DFD824A-16FB1 5WB47D9TBH Micron
DDR4 2400 ECC 16GB Hynix HMA82GU7AFR8N-UHT0 H5AN8G8NAFR Hynix
DDR4 2133 ECC 16GB Crucial CT16G4WFD8213.18FB1 6YB75D9TBH Micron







TPM QVL



Type Interface Pin IC Model
TPM 2.0 LPC 17 pin Nuvoton NPCT650 TPM2-S/NUVOTON/RS1
TPM 2.0 LPC 17 pin INFINEON SLB9665 TPM2-S/INFINEON
Model X470D4U
