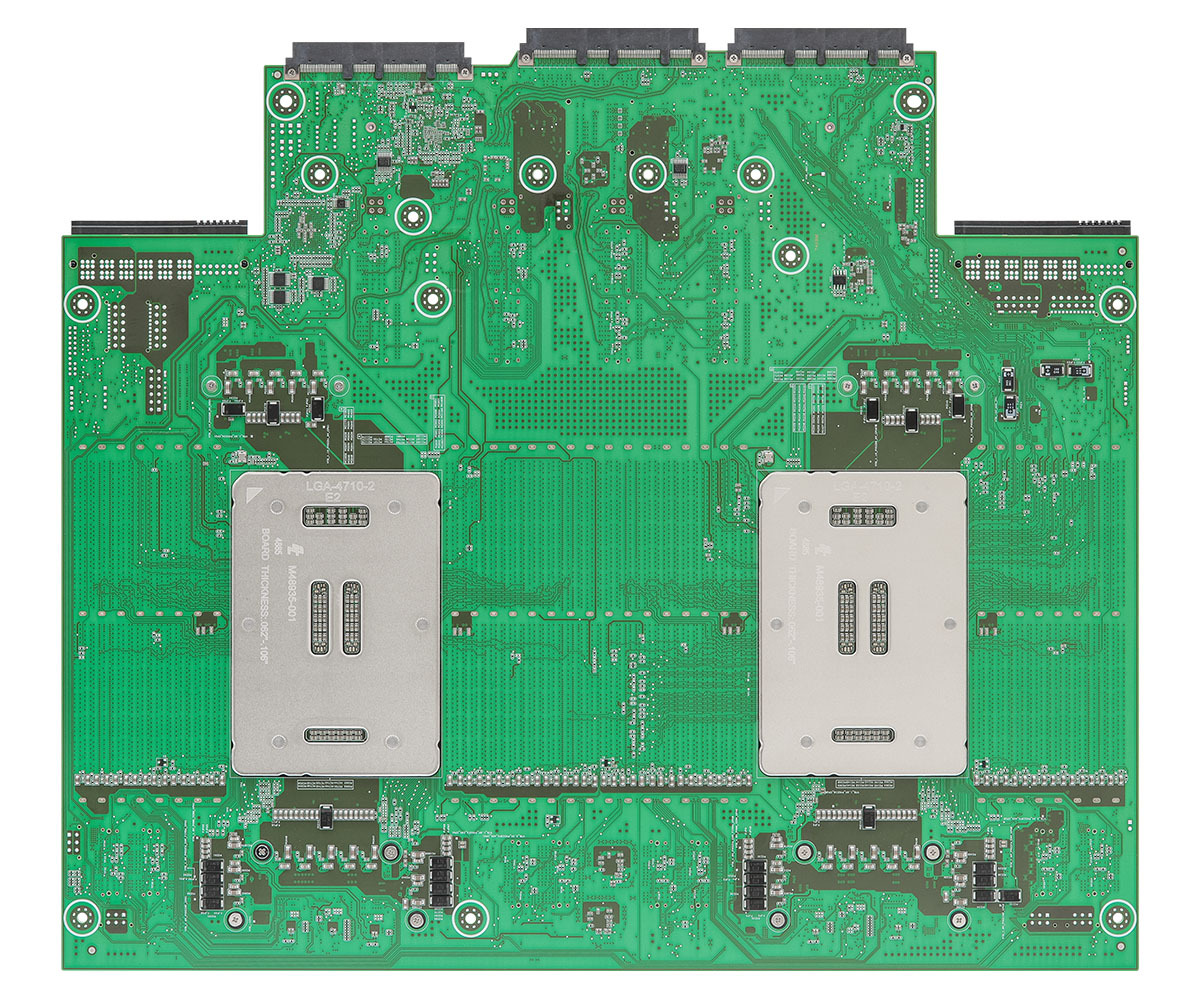

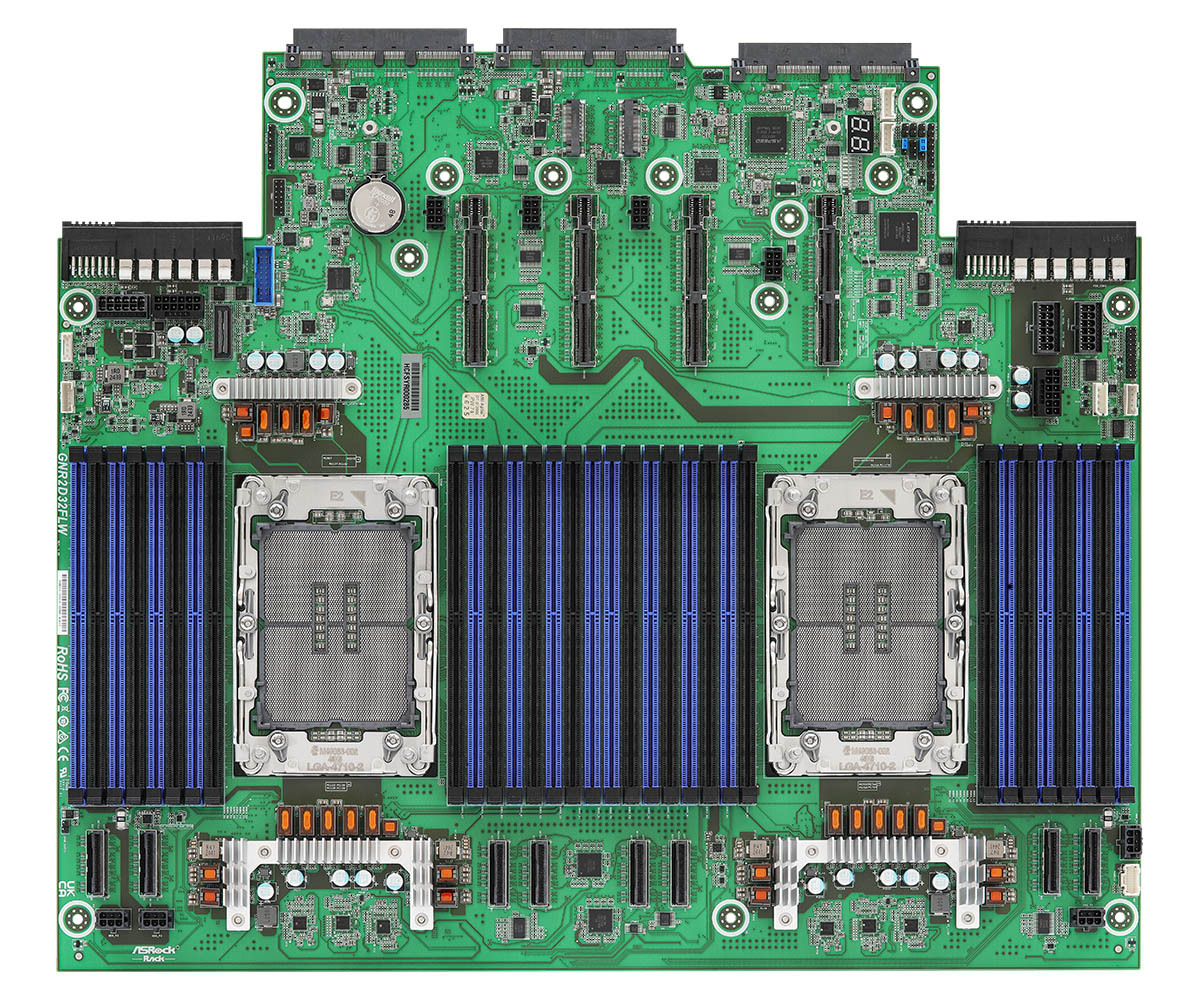

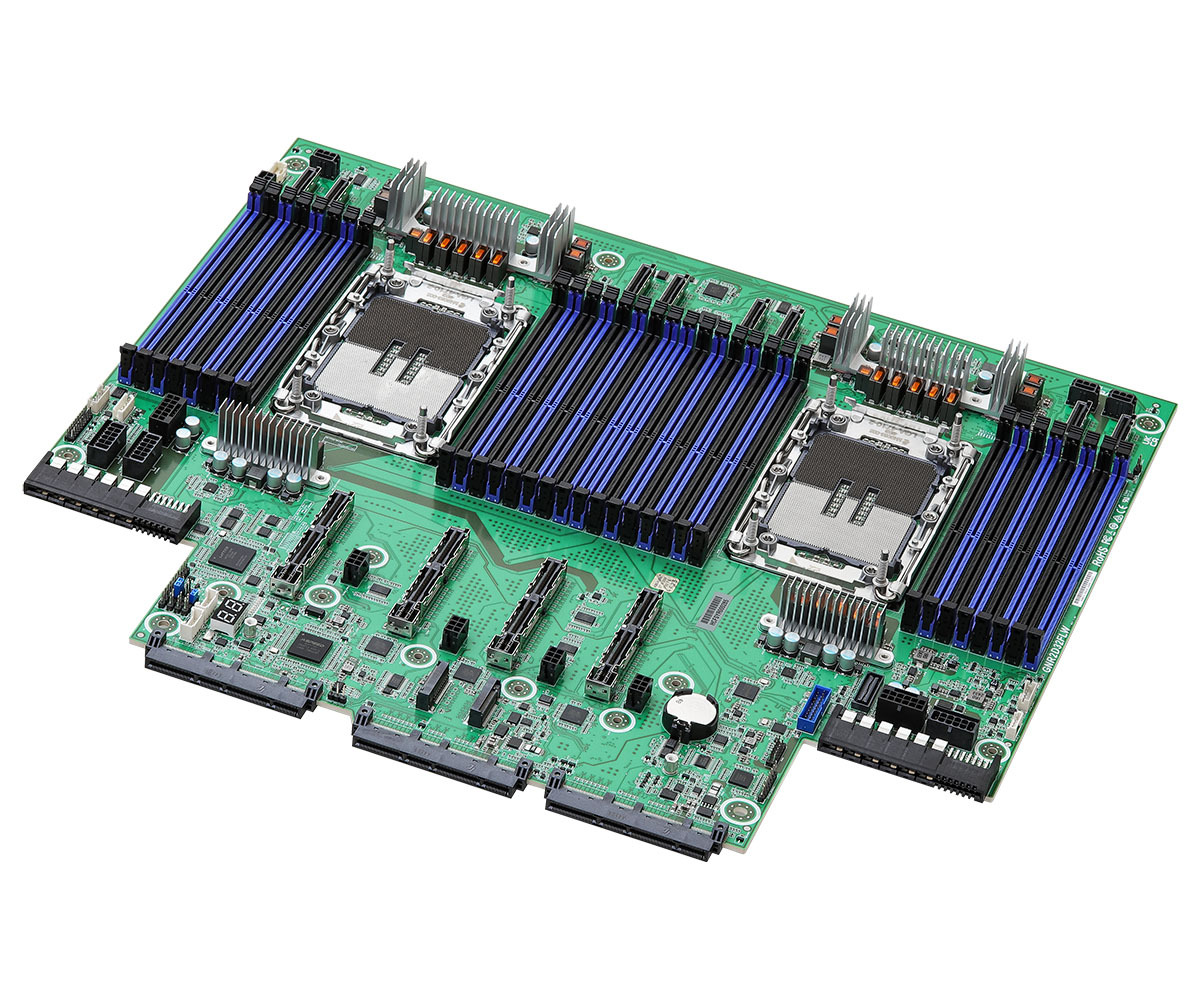

GNR2D32FLW
ModelGNR2D32FLW
M-FLW like (423.18 x 359.99mm)
Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors
16+16 DIMM slots (2DPC), supports DDR5 RDIMM
4 MXIO (PCIe5.0 / CXL2.0 x16), 8 MCIO (PCIe5.0 / CXL2.0 x8)
Supports 2 M.2 (PCIe5.0 x4)
立即查詢
Specification
| Physical Status | |
| Form Factor | M-FLW like |
| Dimensions | 423.18 x 359.99 mm |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) |
| Voltage | 1.1V |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe5.0 x4), supports 2280 form factor [CPU0] 1 M-key (PCIe5.0 x4), supports 2280 form factor [CPU1] |
| Others | 2 MXIO (PCIe5.0 / CXL2.0 x16) [CPU0] 2 MXIO (PCIe5.0 / CXL2.0 x16) [CPU1] 4 MCIO (PCIe5.0 / CXL2.0 x8) [CPU0] 4 MCIO (PCIe5.0 / CXL2.0 x8) [CPU1] |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16) [CPU0] 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16) [CPU1] |
| Server Management | |
| BMC Controller | ASPEED AST2700 on DC-SCM 2.0 module (DC_SCM_2700) |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN on DC-SCM 2.0 module (DC_SCM_2700) |
| Graphics | |
| Controller | ASPEED AST2700: 1 Mini DisplayPort (on DC_SCM_2700) |
| Rear I/O | |
| UID Button/LED | 1 UID button/LED on DC_SCM 2.0 module (DC_SCM_2700) |
| VGA Port | 1 Mini DisplayPort on DC_SCM 2.0 module (DC_SCM_2700) |
| Serial Port | 1 Type-C (COM) on DC-SCM 2.0 module (DC_SCM_2700) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) on DC-SCM 2.0 module (DC_SCM_2700) |
| RJ45 | 1 dedicated IPMI on DC-SCM 2.0 module (DC_SCM_2700) |
| Internal Connector/Headers | |
| Power Connector | 3 PICPWR (12-pin, 12V 2X6+12VSB Sideband), 2 GPUPWR (12-pin, 12V 2X6+4VSB Sideband), 4 Micro-fit (6-pin, PWR for cable riser), 2 M-CRPS (+12V/+12VSB) |
| Auxiliary Panel Header | 1 (20-pin): UID switch w/LED, power switch w/LED, SMBus, system fault LED, HDD activity LED |
| System Panel | 1 (20-pin): SMBus, USB2, SPI, Sideband |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| HSBP | 2 |
| SMBus header | 2 |
| PMBus header | 2 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 2 CPLD update headers |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (3VSB) |
| 80 Debug Port LED | 1 |
| BMC heartbeat LED | 1 on DC-SCM 2.0 module (DC_SCM_2700) |
| Others LED | 1 CPLD heartbeat LED |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | +12V, P12V_STBY_PSU, +5VSB, +3.3V, +3.3VSB, +1.8VSB, BAT, PVCCIN_CPU0, PVCCIN_CPU1, PVCCINF_CPU0, PVCCINF_CPU1, PVCCFA_EHV_FIVRA_CPU0, PVCCFA_EHV_FIVRA_CPU1, PVCCD_HV_CPU0, PVCCFA_EHV_FIVRA_CPU1 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
| Model | GNR2D32FLW |
